In the bathroom industry, the angle valve is an unassuming yet indispensable component. Behind every faucet, next to every toilet, and on every water heater inlet pipe, you’ll find this little part. It controls the flow of water, acting as the "gatekeeper" for household water safety.
Yet, despite its simple structure, the production of angle valves before automation used to cause countless headaches for manufacturers.
Today, let' s take a look at the Angle Valve Assembly Machine—a solution that has revolutionized the way angle valves are produced with its simple, efficient, and stable approach.

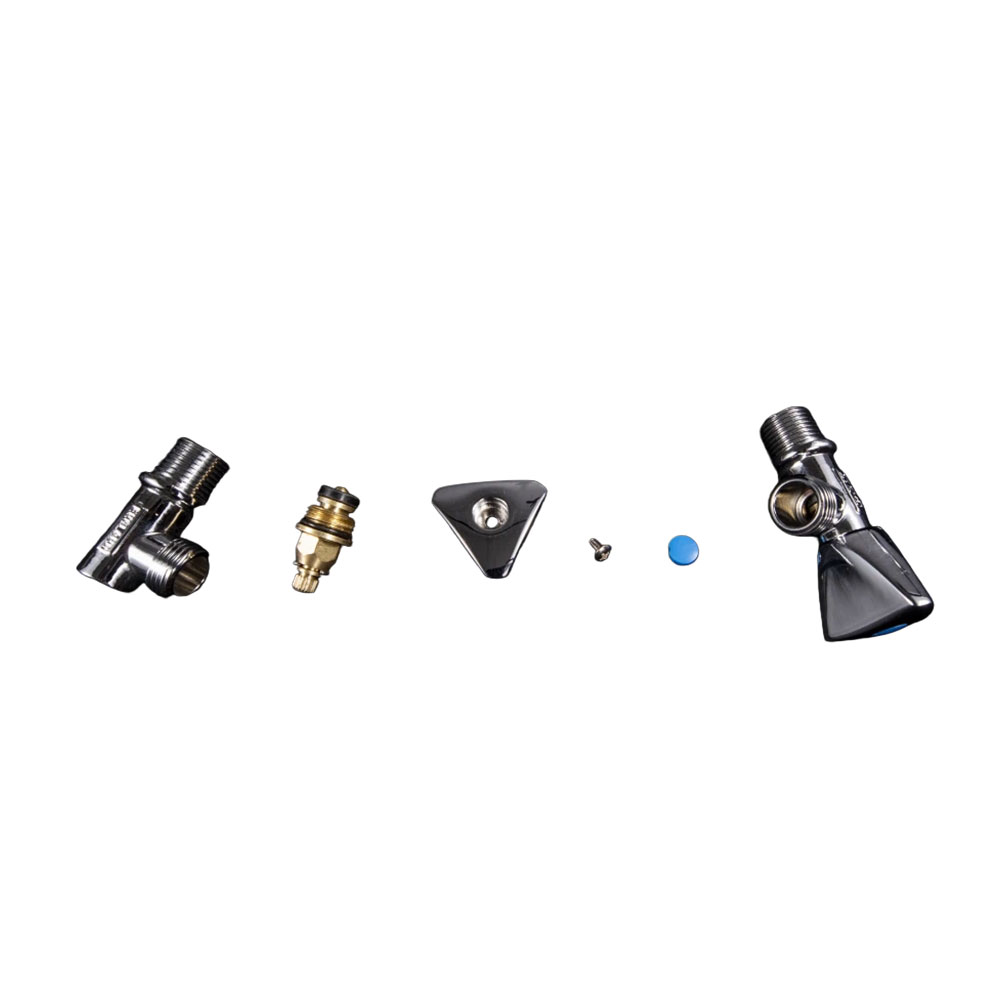

Valve Body: The brass body, either cast or forged, forms the main structure.
Valve Core: The core component controlling the water flow, available in ceramic, ball-type, and other variants.
Valve Cap: The nut that tightens the valve core in place.
Fixing Screws: Small screws that secure the handle to the valve core.
Seals: O-rings or gaskets ensuring tight sealing.
Handle: The part users operate (usually assembled separately or linked with the valve core).
Problem 1: Seal Rings Are Easy to Damage
O-rings are small and soft. During manual assembly, even the slightest error can cause them to curl or scratch, leading to water leakage. A single instance of leakage results in 100% customer complaints.
Problem 2: Torque Control Is Handfeel-Based
The valve cap must be tightened to a specific torque—too loose, it leaks; too tight, it damages the valve core or body. Manual tightening relies on the technician’s feel, leading to significant torque variation between workers or batches.
Problem 3: Small Screws Are Often Missed
The small screws that secure the handle are easily overlooked during manual assembly. Miss one, and the handle is loose—if the user turns it, it will fall off.
Problem 4: High Volume, Labor-Intensive
A medium-sized bathroom factory may produce millions of angle valves annually. Workers repeat the tedious tasks of tightening screws and installing seals thousands of times a day, leading to fatigue, errors, and low job satisfaction.

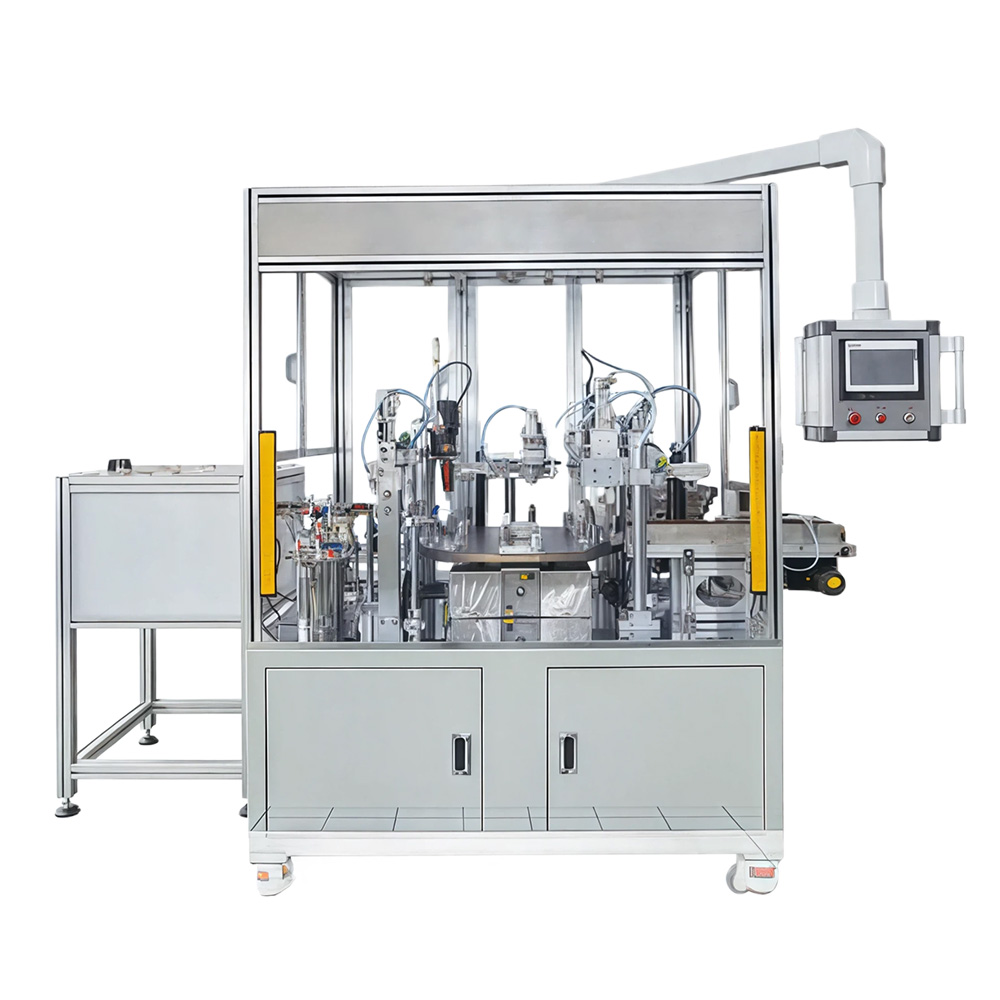

The Angle Valve Assembly Machine is designed to improve efficiency, ensure quality, and reduce manual errors through automation.
 High Efficiency • Cycle time: 6–8 seconds per valve • Output: 3000–4000 pieces per shift • Replaces 3–4 workers with stable, continuous production |  Precise Torque Control • Servo-controlled tightening ensures accurate torque • Prevents leakage (too loose) and damage (too tight) • Torque data can be recorded and traced via MES |  Error-Proofing with Visual Inspection • Cameras detect missing or incorrect components • Checks seal, valve core & screw installation • Defective parts are automatically rejected |  Flexible for Multiple Products • Modular design for quick changeover • Easy adjustment of fixtures and parameters • Changeover time within 20 minutes |  Durable and Easy to Maintain • Pneumatic structure for reliability and low cost • Resistant to dust, oil, and wear • Simple maintenance with minimal downtime |
While small, the assembly process of angle valves reflects a fundamental principle of manufacturing:
The simpler the part, the more stable and reliable the process needs to be.

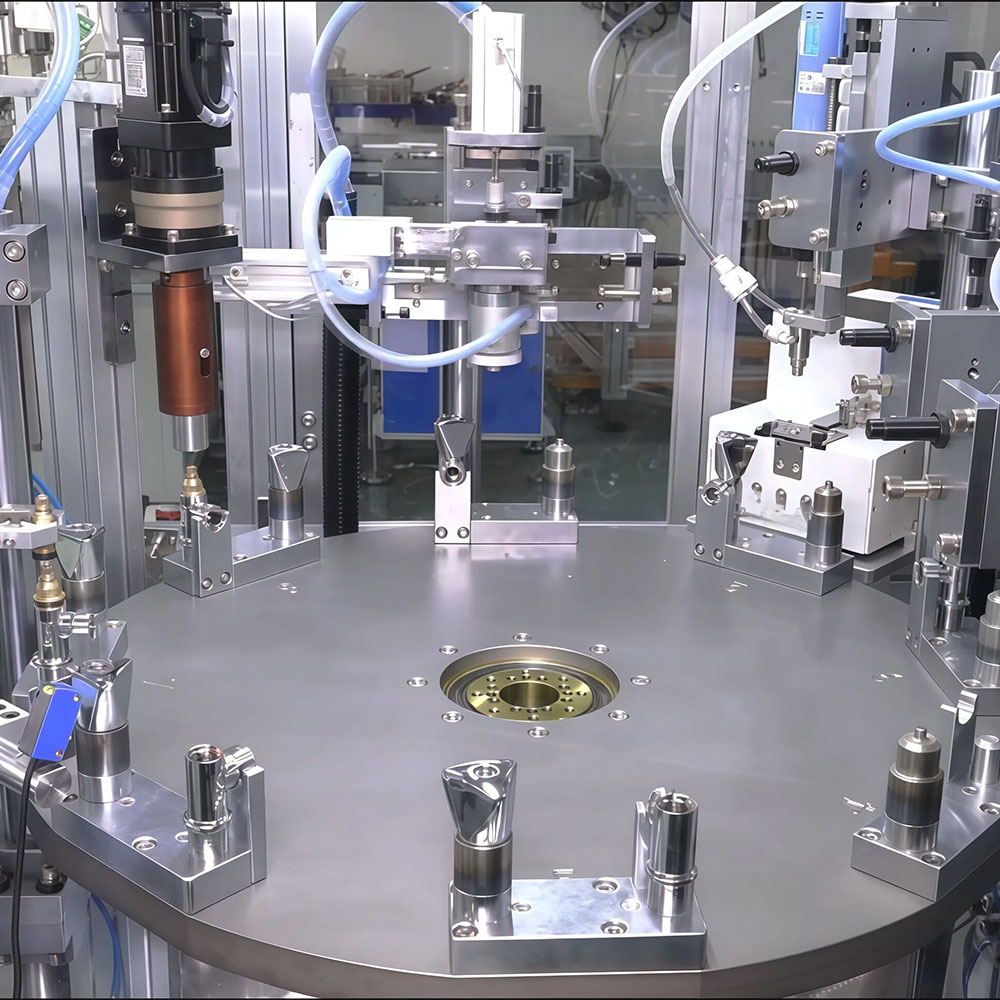

For large-scale production, even a 1% defect rate can result in thousands of faulty parts. The Angle Valve Assembly Machine doesn' t rely on fancy technologies; instead, it integrates tried-and-true methods—turntables, pneumatic cylinders, servo tightening, and visual inspection—into a stable, efficient, and user-friendly automated platform.
It' s not about "flashy" technology; it' s about "reliable" technology.
