| Engineered for high-volume enterprise production, our advanced vertical rotary transfer machine delivers exceptional precision for complex manifold manufacturing. When your factory requires dedicated processing for brass or aluminum components, this specialized equipment ensures reliable continuous output. We provide robust industrial machinery tailored for intricate multi-sided machining needs, optimizing production cycles across diverse fluid control applications. Enhance your operational efficiency with our proven engineering solutions. | |||||||||
|
| |||||||||

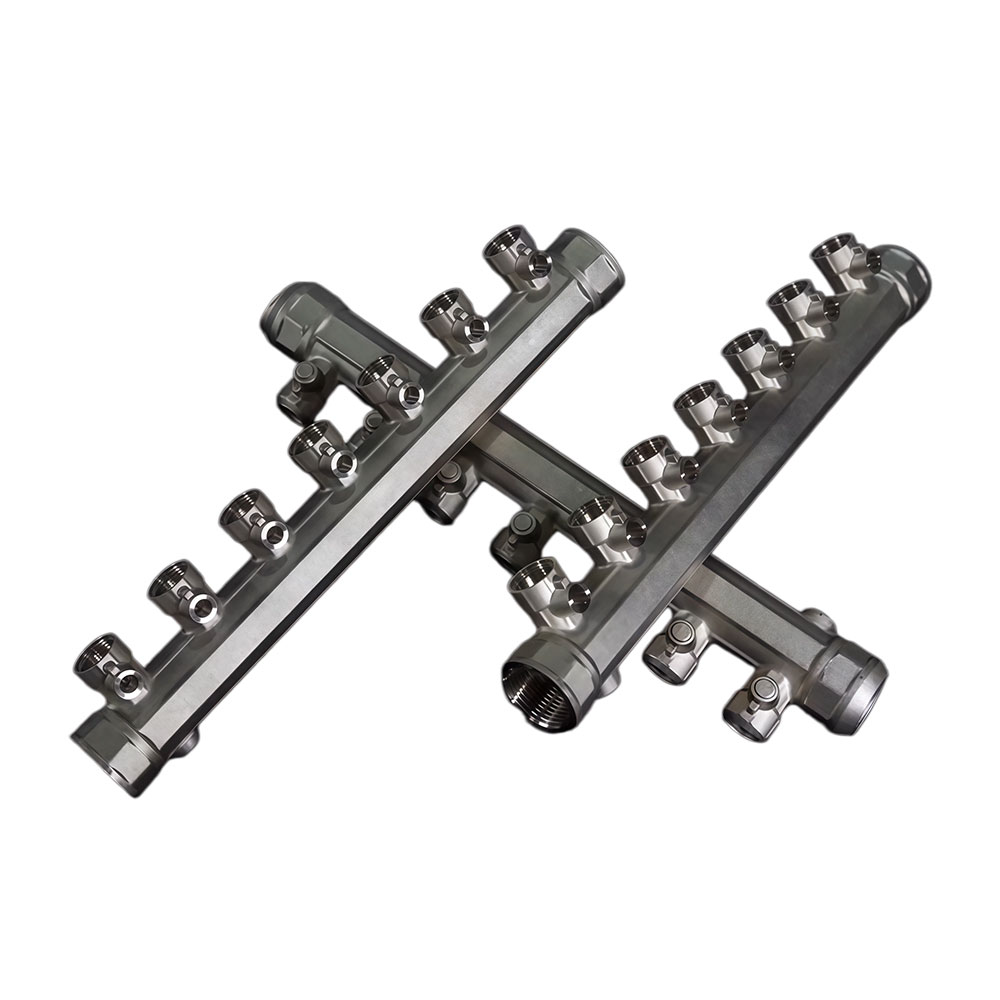

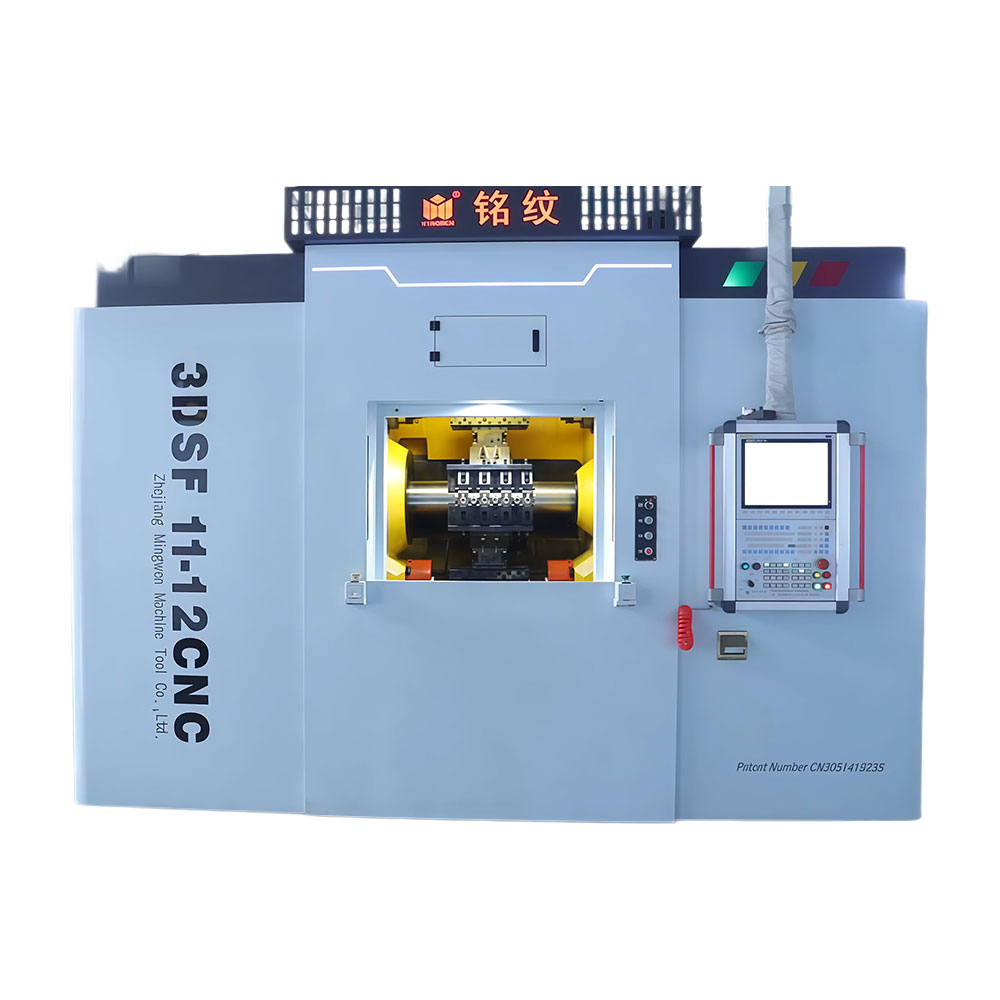

The Vertical Rotary Transfer Machine—or Vertical Waterwheel Machine—is specifically engineered for high-volume production of 3-way to 8-way manifolds, offering a dedicated solution that combines precision, efficiency, and ease of operation. Our vertical rotary transfer machine ensures your facility maintains continuous throughput without compromising on exact tolerances. This equipment provides a robust platform for modern manufacturing facilities demanding consistent reliability. Integrating advanced control systems into our machine allows operators to manage complex workflows seamlessly. Enterprise production lines benefit from the streamlined setup and stable operation inherent in our design.
Parameter | Typical Configuration |
Spindle count | 7-10 spindles (configurable) |
Work stations | 6-station indexing table (1 load/unload + 5 machining) |
Spindle speed | Boring: ~1335 rpm / Tapping: ~556 rpm |
Our machinery features a flexible layout ranging from 7 to 10 spindles to meet specific production demands. We distribute the power head axles according to the exact definition of your target products. This adaptability allows your facility to process complex valve housings effectively. The system supports optimal spindle speeds for distinct operations, achieving up to 1335 rpm for boring and 556 rpm for tapping.

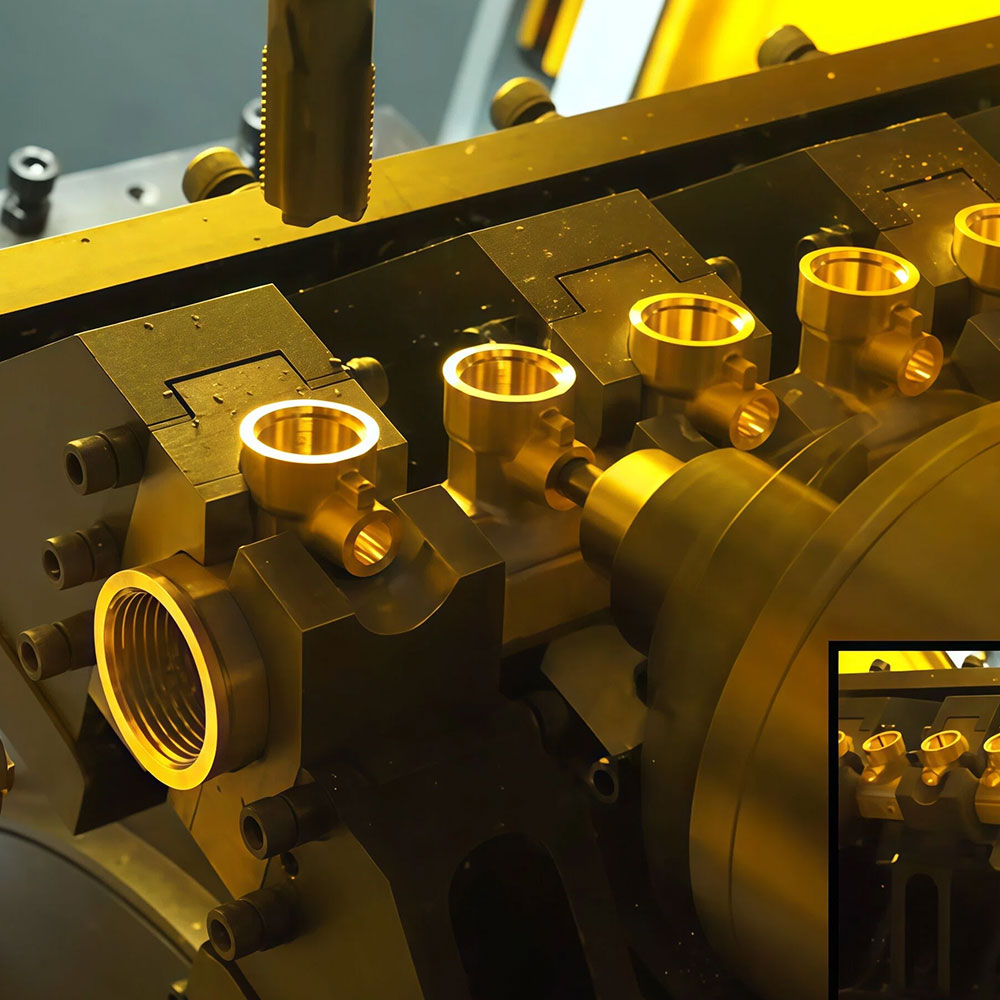

The core mechanism utilizes a robust 6-station indexing table designed for continuous manufacturing workflows. This setup incorporates five dedicated machining stations alongside one designated load and unload position. Operating with a synchronous hydraulic vice, the gripper securely holds workpieces throughout the entire cycle. While manual loading is standard, integrating a robot or manipulator presents an excellent plus for enterprise automation goals.

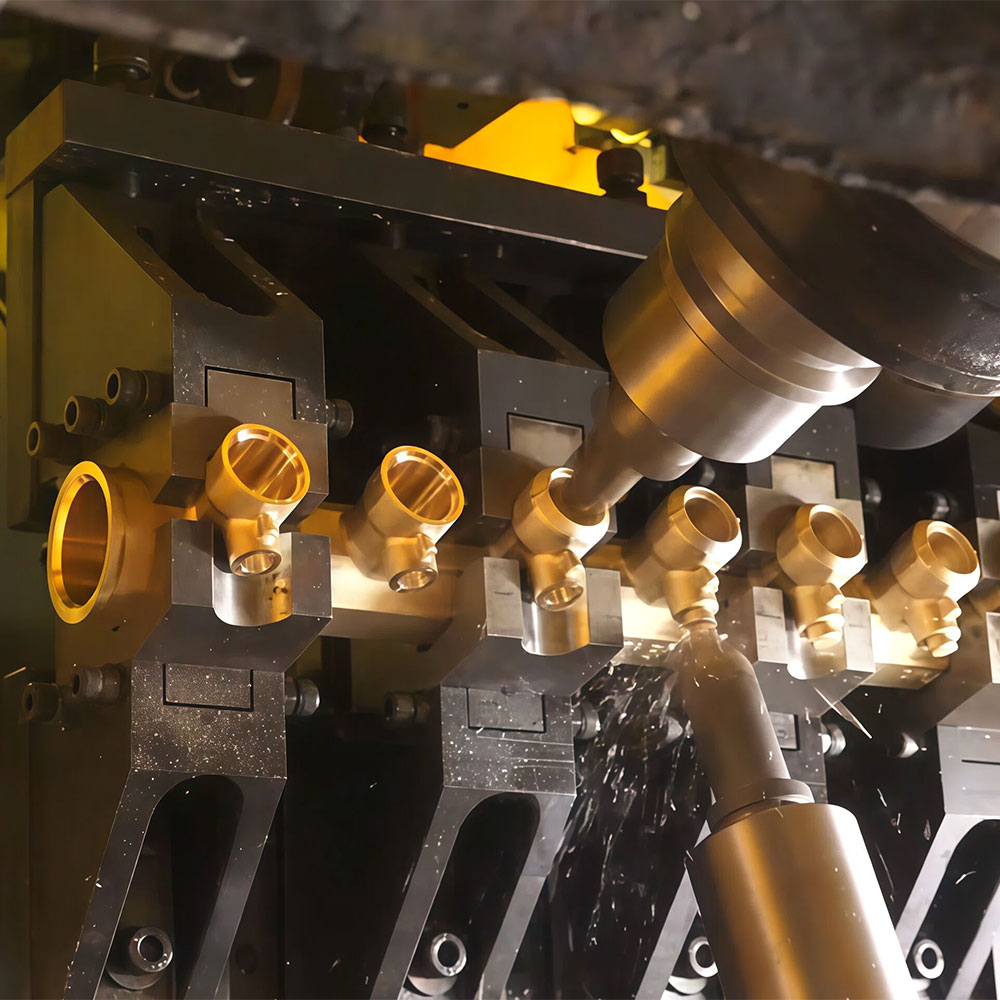

Maintaining thermal stability during operations remains critical for prolonging tool life and part quality. Our vertical waterwheel machine integrates versatile tool cooling methods tailored to your specific material requirements. Operators can utilize standard water cooling, precision spraying, or focused gas injection depending on the machining context. These integrated cooling solutions ensure safe and consistent performance during rigorous production shifts.
Our equipment is specifically optimized for cutting brass, aluminum, and other soft metals prevalent in the industry. Handling non-ferrous materials requires precise control to prevent surface deformation during aggressive multi-sided machining. The structural rigidity of our machinery minimizes vibration, ensuring exceptional finish quality on every single part. Your facility can confidently process delicate valve components with superior dimensional accuracy.
The system delivers remarkable versatility when handling various tri-branch parts and complex connectors. It perfectly accommodates processing within 1/4" to 1" valve housing specifications, covering a wide array of standard industry requirements. This broad capacity reduces the need for multiple specialized machines within your production floor. Consolidating these operations into one reliable platform significantly reduces your overall capital equipment footprint.
The vertical rotary transfer machine is the preferred solution for:
 Complete pipe fabrication |  Complete heating system fabrication |  Hydraulic system water distribution valve fabrication |
Manufacturing robust heating system networks demands precise engineering for all associated fluid control elements. Our equipment excels in producing the integral components required for maintaining stable thermal transfer. The multi-station design effortlessly handles the complex geometries found in modern heating infrastructure. Your enterprise can consistently deliver high-quality heating system fabrication parts that meet strict global tolerance requirements.
Creating reliable water distribution valves for hydraulic networks requires consistent and exact metal removal. The dedicated workstations on our platform ensure that each distribution valve meets strict pressure containment standards. We enable your production lines to deliver flawless hydraulic parts efficiently. Investing in this specialized machinery guarantees your fabricated valves withstand rigorous field testing and daily operational stress.
Producing multi-sided tee fittings and similar pipe connectors involves intricate cutting from various angles without losing structural integrity. Our rotary transfer platform simplifies this demanding process by addressing multiple faces within a single clamping cycle. Facilities can dramatically increase their output of standard and specialized pipe fabrications. Achieve superior threading and boring results that significantly elevate your overall catalog quality.
We understand the rigorous demands placed on modern manufacturing enterprises when sourcing heavy-duty industrial equipment. Delivering reliable machining solutions remains our primary focus, ensuring your factory achieves its daily production targets seamlessly. Our dedicated team provides comprehensive technical support and tailored machinery configurations to match your precise application requirements. Partnering with an experienced machinery provider means receiving equipment that genuinely enhances your operational capabilities over the long term.
1. Application: Suitable for processing within 1/4" to 1" valve housing and other tri-branch parts
2. Power head distribution: According to the definition of products
3. Gripper: Synchronous hydraulic vice.
4. Loading/unloading method: Manual loading/unloading.Robot or manipulator can be a plus
5. Tool cooling system: Water cooling, spraying, gas injection andother cooling methods
6. Make the number of power head axles according to productfeatures.
The equipment is perfectly optimized for brass, aluminum, and similar soft non-ferrous metals.
Yes, it effectively processes components within the 1/4" to 1" valve housing range.
While manual loading is standard, integrating a robotic manipulator is fully supported for increased automation.
The system utilizes configurable water cooling, spraying, and gas injection to maintain optimal tool temperatures.
Watch our Vertical Rotary Transfer Machine in action during manifold production.
