| Our horizontal rotary transfer machine delivers unmatched flexibility for complex, high-volume precision machining. Engineered for exceptional expandability, our horizontal waterwheel machine integrates multiple processes into a single setup. We provide custom wholesale solutions tailored to demanding manufacturing environments, eliminating secondary operations while ensuring consistent quality across large-scale production runs. | |||||||||
|
| |||||||||

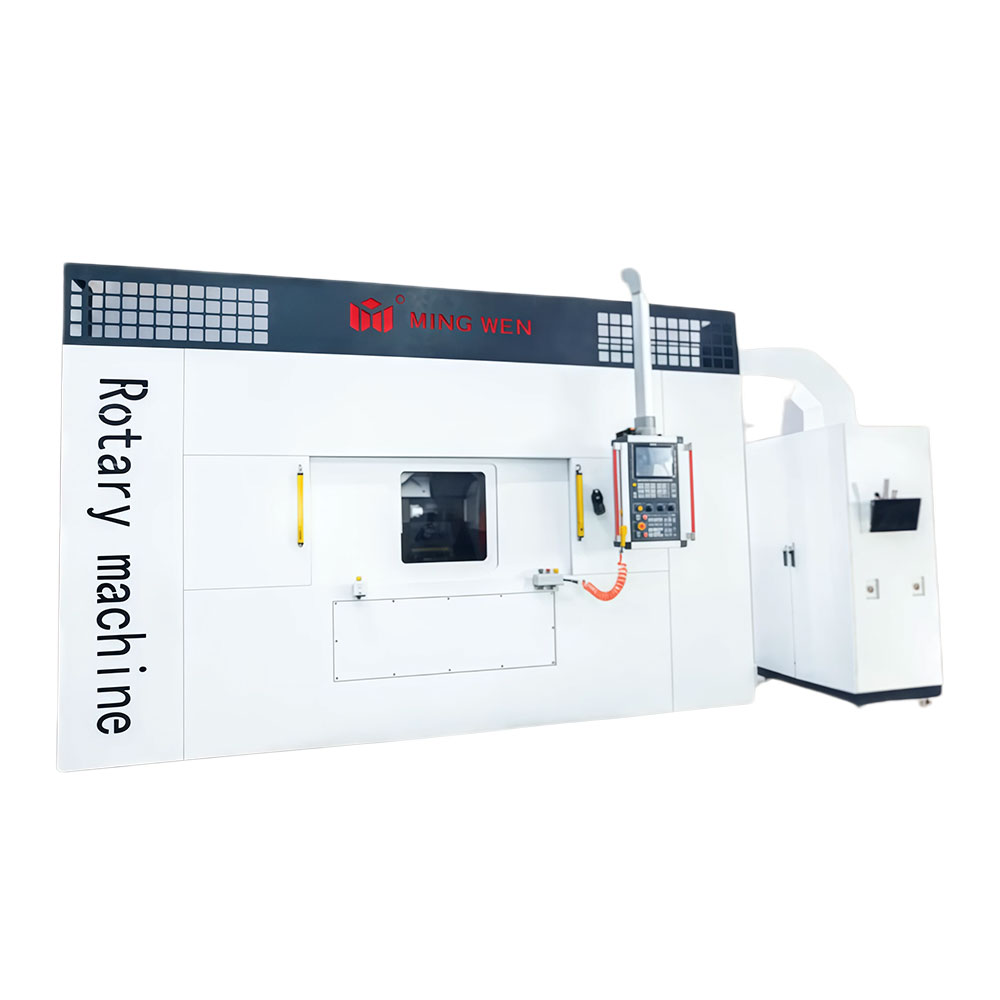

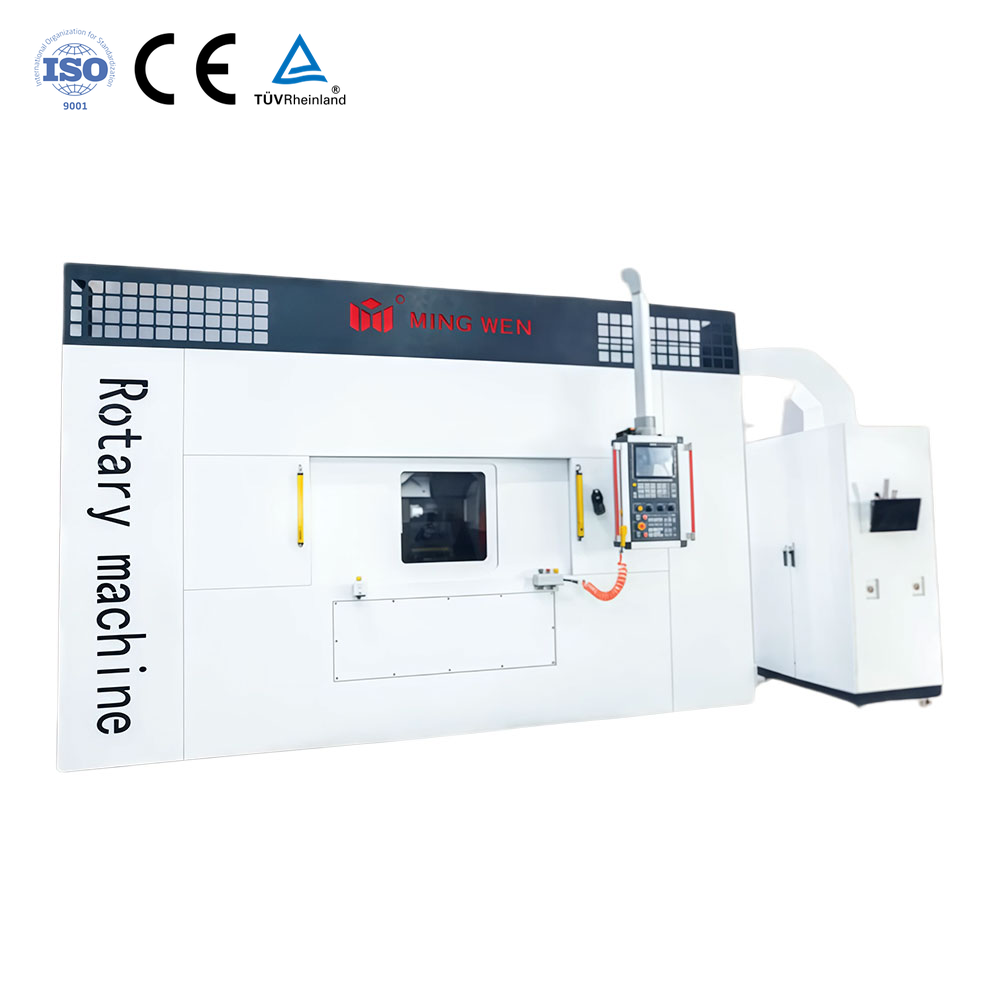

The Horizontal Rotary Transfer Machine represents the pinnacle of flexible, high-volume precision machining. Unlike its vertical counterpart, the horizontal configuration is engineered for exceptional expandability and machining complexity. It serves as the ideal solution for demanding manufacturing environments. We configure our horizontal waterwheel machine to accommodate extensive production needs seamlessly. Our enterprise-grade systems ensure stable operations during extended manufacturing cycles. Integrating our custom solutions optimizes factory floor space while maximizing output rates significantly.

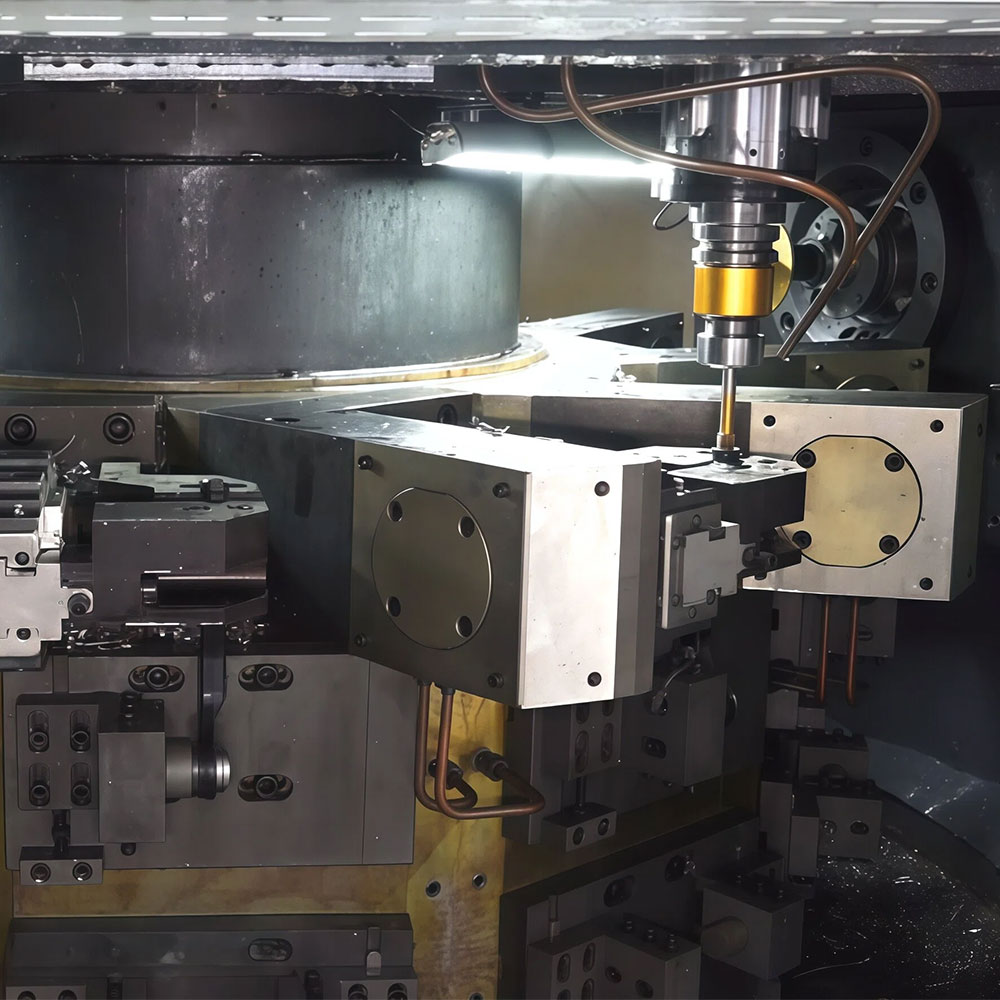

Our equipment utilizes a robust synchronous hydraulic vice gripper to secure components during complex operations. This advanced clamping mechanism ensures optimal stability across various processing stages. We design the holding systems to handle diverse workpiece geometries without compromising cycle times. Secure gripping minimizes vibration and enhances surface finish quality consistently. Operators maintain tight tolerances even when executing heavy material removal tasks.
The tool cooling system integrates multiple methods including water cooling, spraying, and gas injection. Operators select the most appropriate thermal management approach based on specific material requirements. Effective cooling extends cutting tool lifespan and maintains dimensional accuracy during prolonged production runs. We engineer our cooling configurations to flush chips efficiently from the machining zone. Consistent temperature control prevents thermal deformation in critical precision components.
We determine the power head distribution strictly according to the definition of products. Our engineers make the number of power head axles correspond perfectly with your specific product features. This tailored approach guarantees that each station performs its designated operation with maximum efficiency. Custom configurations prevent unnecessary equipment complexity while fulfilling all technical requirements. The modular axle design facilitates straightforward adjustments for future production changes.
Our standard configuration supports reliable manual loading and unloading procedures for standard operational flows. Integrating a robot or manipulator presents a significant advantage for automated facilities. We ensure the multi-station processing environment interfaces smoothly with external handling systems. Automated loading minimizes idle time between cycles and reduces operator fatigue substantially. Our control architecture easily synchronizes with standard industrial robotic protocols to streamline factory operations.
The horizontal design allows for a significantly higher number of machining stations. Up to 20 stations can be configured around the indexing table to meet complex demands. This expanded station count enables the integration of more processes in a single setup. Operators eliminate the need for secondary operations entirely. Our custom horizontal waterwheel machine delivers the most efficient and stable solution for complex parts. Consolidating processes reduces work-in-progress inventory and accelerates manufacturing timelines.
Built around high station expandability, our systems represent a strategic asset for high-end manufacturers. We deliver powerful process integration facing the most demanding processing requirements today. Our high-volume precision machining centers combine turning, milling, and drilling into one continuous flow. This seamless transition between stations minimizes part handling and associated human errors. We ensure each integrated process maintains the exact precision standards required by critical industries.

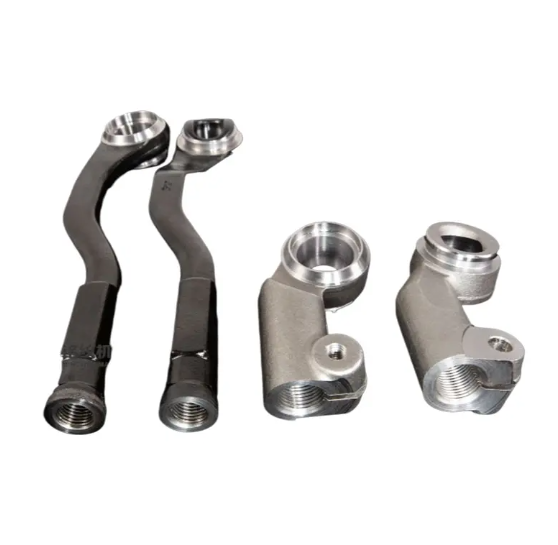

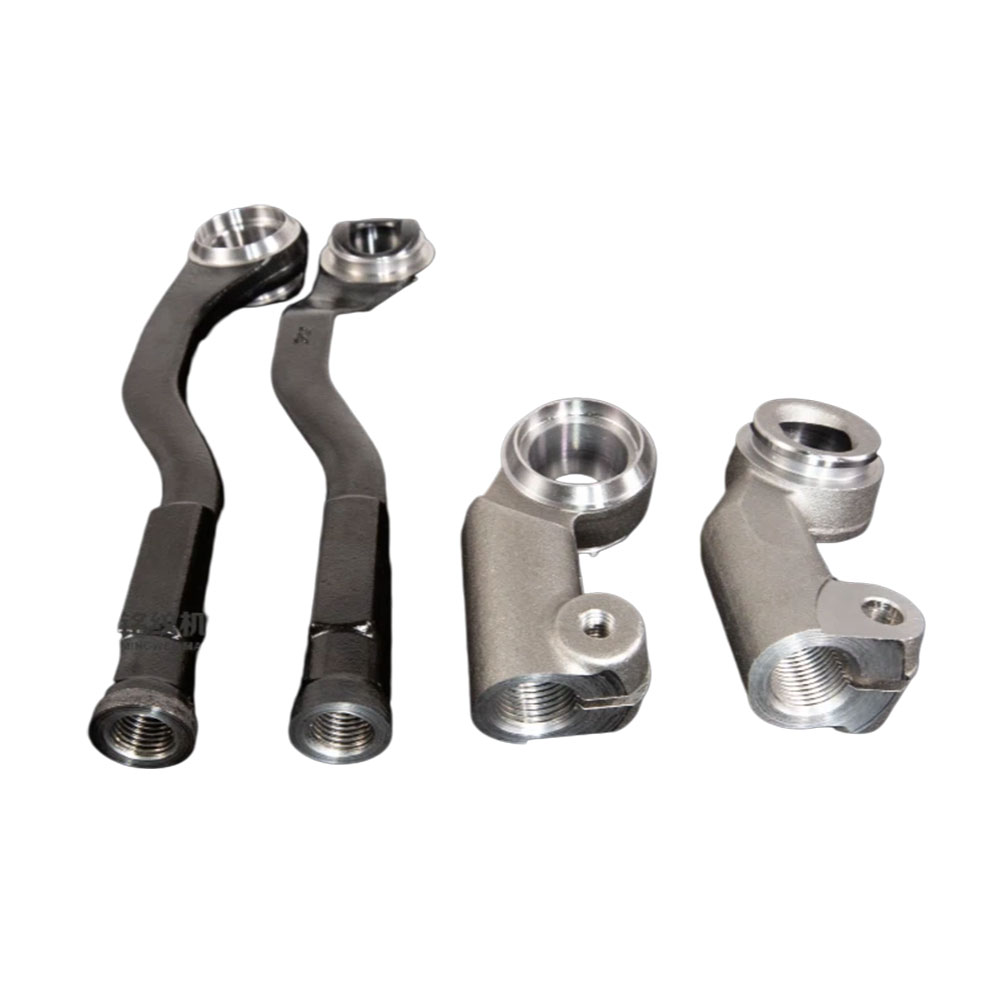

Our custom equipment excels in the multi-station processing of the rod body and rod cap. We engineer the station sequence to handle external turning and internal operations simultaneously. The robust spindle design accommodates the heavy cutting loads required for strong metal alloys. Manufacturers achieve tight concentricity tolerances between the body and cap mating surfaces consistently. Our tailored approach ensures these critical structural components meet stringent industrial standards.
The machine delivers exceptional results during the multi-station boring processing of the connecting rod. We utilize specialized boring heads to achieve superior surface finishes within the internal diameters. The CNC rotary transfer equipment maintains exact center-to-center distances across high-volume production batches. Operators rely on our rigid machine base to absorb vibrations during deep boring operations. Precise alignment guarantees optimal performance for the final assembled mechanical systems.

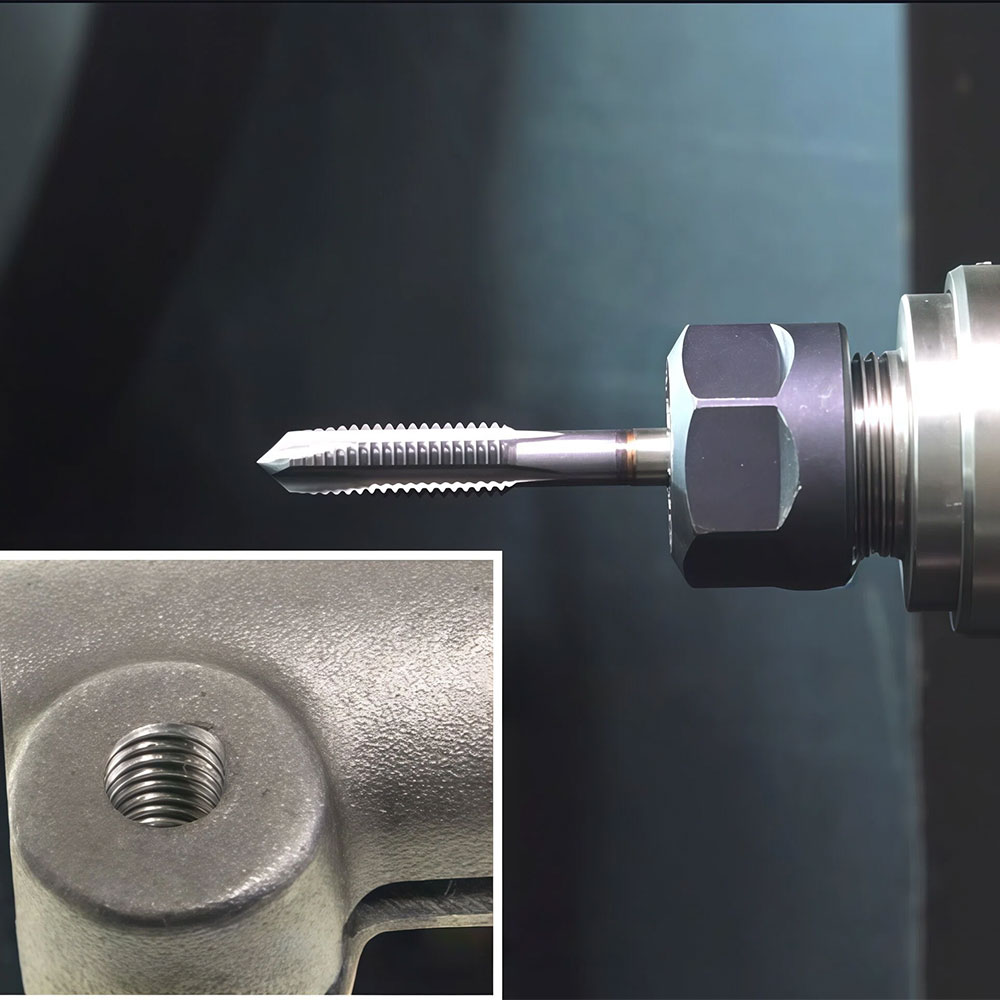

We configure the stations to manufacture complex industrial fasteners requiring multiple secondary features. The system performs cross-drilling, milling, and tapping without releasing the workpiece from the synchronous hydraulic vice. Producing finished fasteners in a single cycle significantly lowers per-unit manufacturing costs. Our flexible programming allows quick changeovers between different fastener sizes and thread specifications. Manufacturers depend on our solutions to fulfill large wholesale orders reliably.
Delivering control and connectivity remains our primary focus when developing smart manufacturing solutions. We specialize in providing custom factory equipment that integrates seamlessly into your existing production floor. Our technical expertise ensures each machine meets exact client specifications before deployment. We supply comprehensive resources and dedicated support to maximize your operational efficiency long-term. Partnering with a reliable wholesale supplier guarantees consistent performance and strategic growth in competitive markets. We prioritize robust construction and enterprise-grade engineering in every project we undertake.
Up to 20 stations can be configured around the indexing table based on specific production requirements.
The system supports multiple cooling methods including water cooling, spraying, and gas injection to suit different materials.
Yes, while manual loading is standard, integrating a robot or manipulator is fully supported for automated operations.
We customize the number and distribution of power head axles entirely according to your specific product features.
