| Upgrade your manufacturing facility with our advanced vertical rotary transfer machine designed for high-volume automated production. We provide custom factory-direct solutions that integrate seamless robotics and precision machining to optimize your output. Invest in our robust equipment tailored for fluid control system components to ensure continuous, high-speed operation. | |||||||||
|
| |||||||||

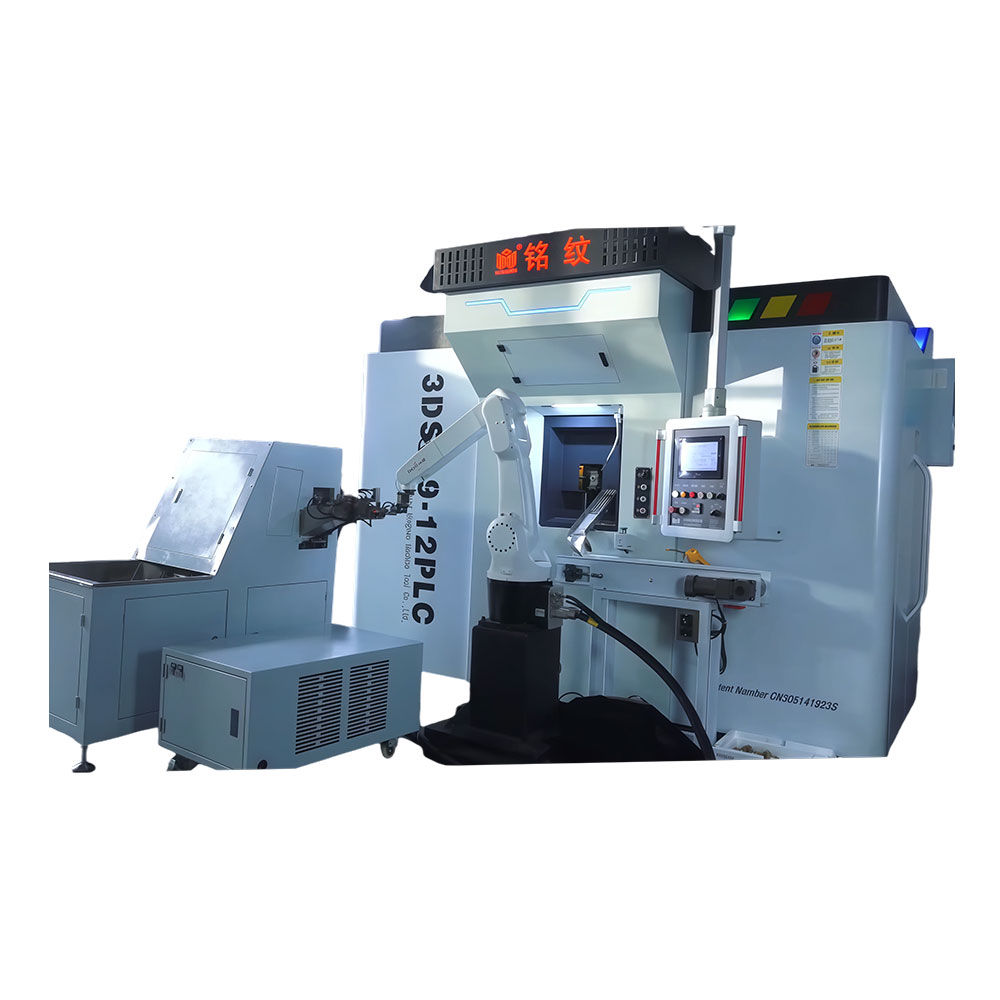

Traditionally, red forged nozzle operations demand multiple setups and extensive manual handling. Our vertical rotary transfer machine revolutionizes this process by integrating a fully automated loading system and a robust six-axis robot. We deliver unmanned, high-speed, and consistent machining at volumes that traditional manual lines simply cannot match. This factory-ready automation eliminates manual intervention entirely, allowing one operator to supervise multiple lines while increasing your overall equipment effectiveness significantly.

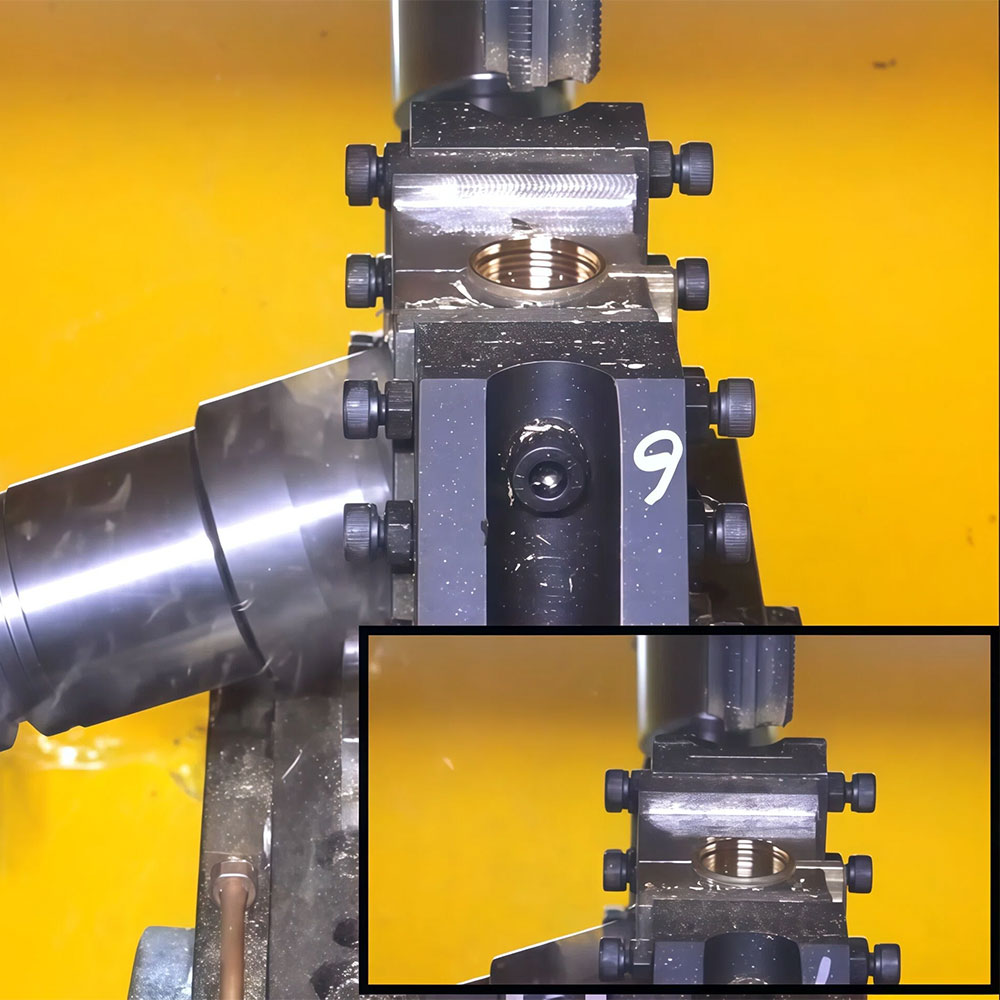

By consolidating drilling, tapping, chamfering, and external turning into one continuous machining cycle, we drastically reduce your required floor space and machinery investment. Our continuous automated machining system operates flawlessly through shift changes and employee breaks, securing an unparalleled return on investment. Choose our high-performance equipment to dominate high-volume wholesale manufacturing environments and outpace your traditional competitors.
We equip our precision systems with highly adaptable tool cooling mechanisms, including direct water cooling, advanced fluid spraying, and focused gas injection options. Combined with a powerful vertical processing method and a precise 20 mm stroke of facing heads, our equipment handles intense machining tasks effortlessly. These features preserve expensive tool life and guarantee operational accuracy throughout extended production runs.

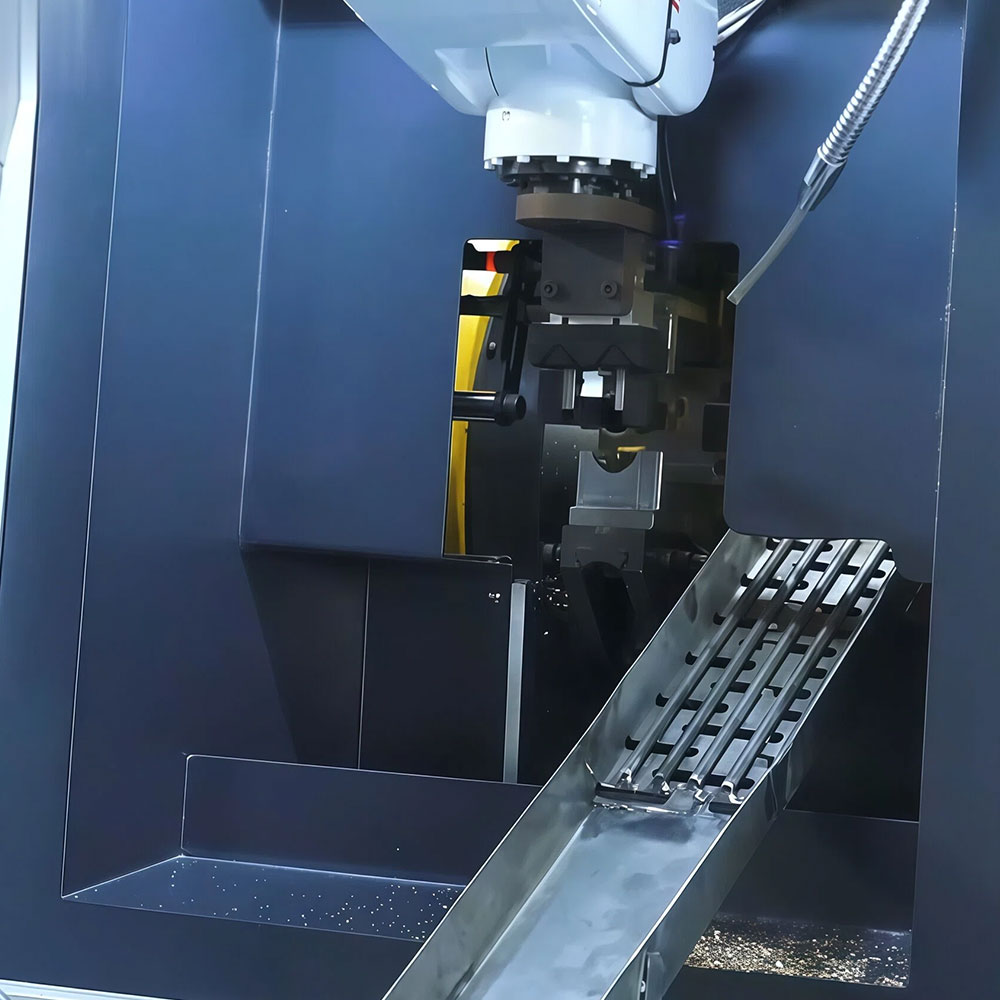

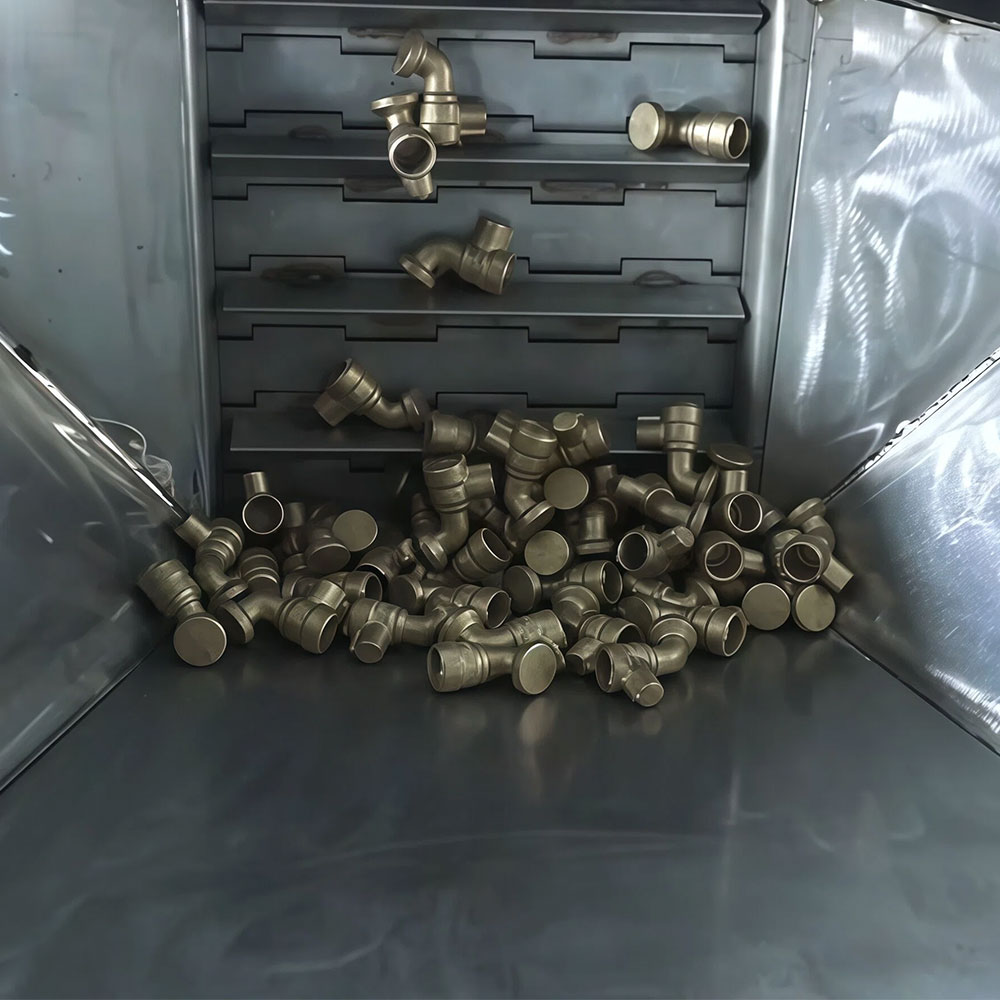

 Dedicated feeding system Vibratory bowl feeder, conveyor, or magazine lift that singulates and presents raw forgings to the robot. |  Six-axis robot Positioned to pick blanks from the feeder, load them into the machine's clamping units, and unload finished parts onto an outgoing conveyor or tray. |  In-process part orientation The robot can flip or rotate parts between stations if required for multi-sided machining. |
Application | Suitable for 3/8" - 2" gate valve body and valve plate |
Form of spindle facing heads | φ200 |
Stroke of facing heads | 20 mm |
Processing method | Vertical |
Tool cooling system | Water cooling, spraying, gas injection and other cooling methods |

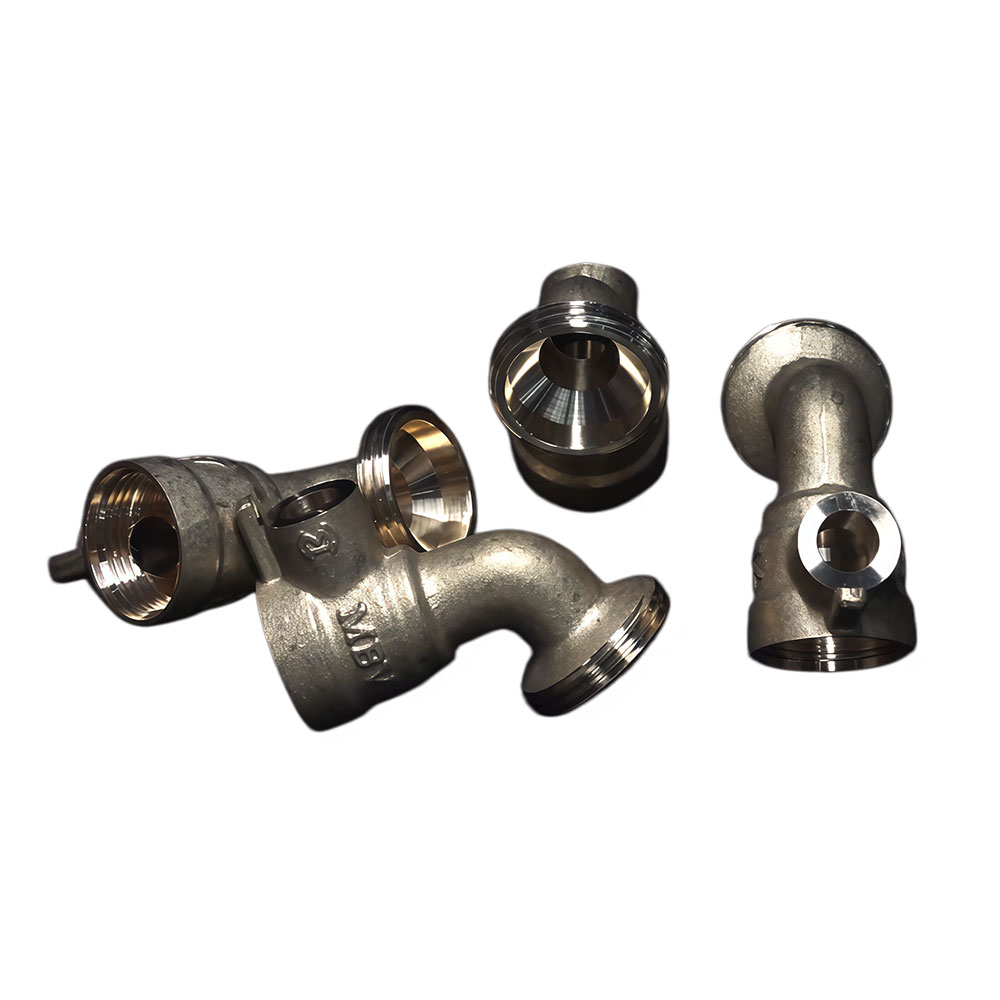

The red forged nozzle remains a highly critical component in complex faucets. It consistently demands high-precision multi-stage machining processes. Our red flushing nozzle machine expertly handles deep cross-hole drilling and complex external turning. We ensure every produced nozzle strictly meets all global quality standards. Rely on our robust factory solutions to deliver consistent, defect-free daily output that easily satisfies your enterprise clients.
Engineered specifically to accommodate heavy-duty fluid control components, this system is perfect for gate valve bodies. It comfortably processes 3/8 inch to 2 inch valve plates and assemblies. We deliver precise manufacturing tolerances and exceptionally clean threading on every single piece. This valve body processing machine directly empowers your facility to supply premium-grade valves to demanding industrial plumbing markets.
Beyond standard nozzles and commercial valves, our custom forging machining equipment creates various intricate metal fittings. These parts are constantly required for sophisticated fluid management networks. By offering flexible robotic station configurations and automated part flipping, we help wholesale suppliers produce highly specialized components. You can rapidly adapt to shifting market demands without investing heavily in completely different production lines.
We actively turn your specialized custom requirements into profitable reality by offering flexible smart manufacturing solutions. These setups are tailored strictly to your specific parts, volume, and budgetary needs. Our highly experienced technical team ensures that every integrated system perfectly matches your overarching production goals. This dedicated approach secures a rapid, sustainable, and highly lucrative competitive advantage within your targeted industrial sector.

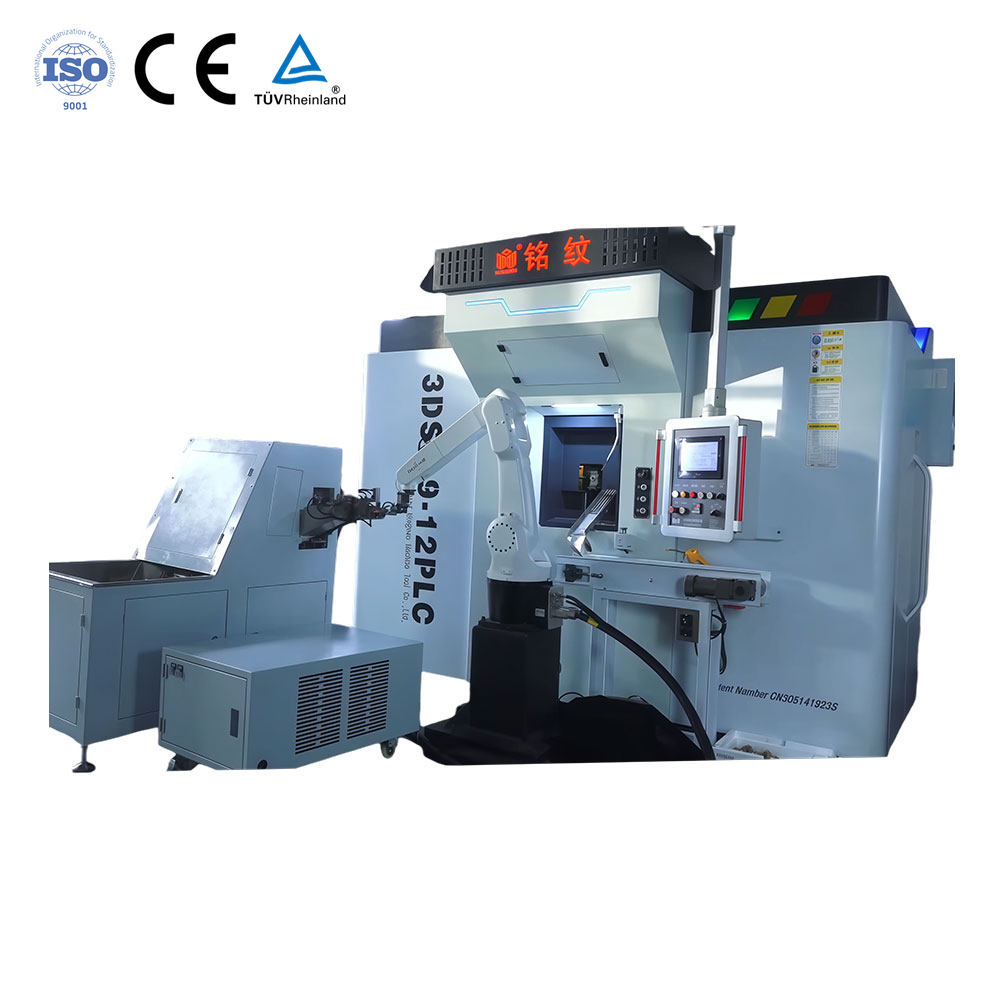

Every delivered equipment batch meets exceptionally high performance standards through rigorous control and extensive testing across our assembly centers. From the initial strategic consultation to final on-site installation, our dedicated customer service guarantees minimal operational downtime. We continually strive to cement a true win-win partnership entirely focused on drastically reducing your long-term total cost of ownership.
Our equipment is exceptionally suitable for processing 3/8 inch to 2 inch gate valve bodies and valve plates, alongside high-precision red forged nozzles.
No, the fully integrated six-axis robot and dedicated feeding mechanism enable completely unmanned, continuous operation across multiple production shifts.
We provide flexible tool cooling options, including water cooling, targeted spraying, and gas injection, to maintain optimal performance during heavy machining.
Yes, the in-process part orientation feature allows the robot to seamlessly flip or rotate parts between stations for complex multi-sided tasks.
Watch our automatic loading and unloading red flushing nozzle in action.
