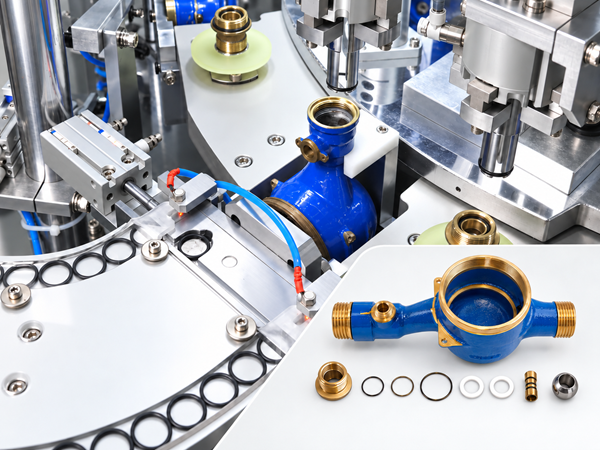

Automatic Valve Core Assembly

The valve core assembly system automatically handles a series of small sealing and internal components required for the water meter valve mechanism. Parts such as O-rings, sealing rings, washers, brass connectors and internal valve elements can be automatically fed, oriented, positioned and assembled through multiple controlled stations. Depending on the product design, pressing, insertion, tightening and inspection functions can also be integrated into the same system. This reduces repetitive manual work while helping maintain stable component orientation, seating position and assembly sequence throughout continuous production.

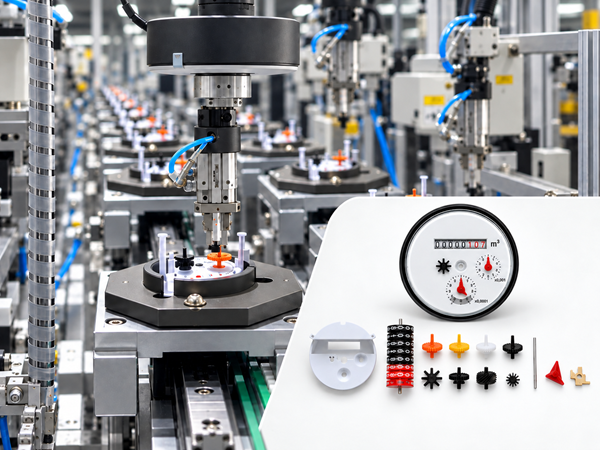

Automatic Water Meter Dial Assembly

The dial assembly system is designed for the precise handling and assembly of small components such as number wheels, gears, pointers, shafts and other register parts. Automatic feeders supply the individual components, while pick-and-place mechanisms transfer and position them at the required assembly stations in the correct sequence. The system can integrate shaft insertion, component positioning, indexing and assembly confirmation according to the meter design. By controlling the orientation and position of each small part, the equipment helps improve repeatability and reduce errors during complex dial and register assembly.

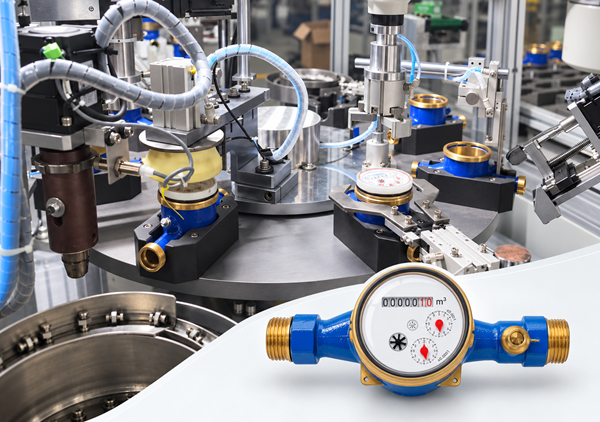

Final Water Meter Assembly & Testing

At the final production stage, the completed measuring mechanism and dial assembly are integrated with the machined water meter housing. Dedicated fixtures hold the product in a controlled position while the meter core is aligned, inserted and secured. After assembly, the finished meter can be automatically transferred to downstream processes such as laser marking, product identification and water pressure testing. The testing section verifies the sealing performance of the completed meter before it moves forward as a finished product, connecting final assembly and product verification within one coordinated production process.
