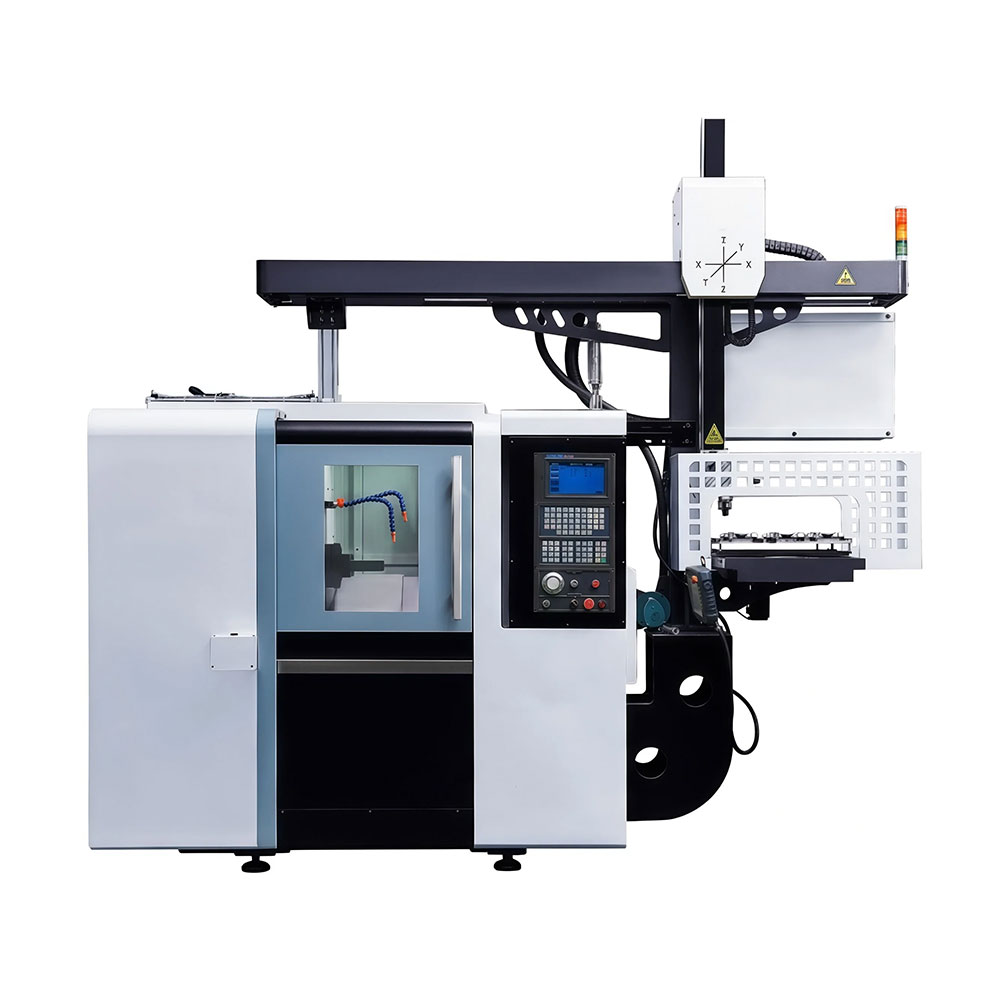

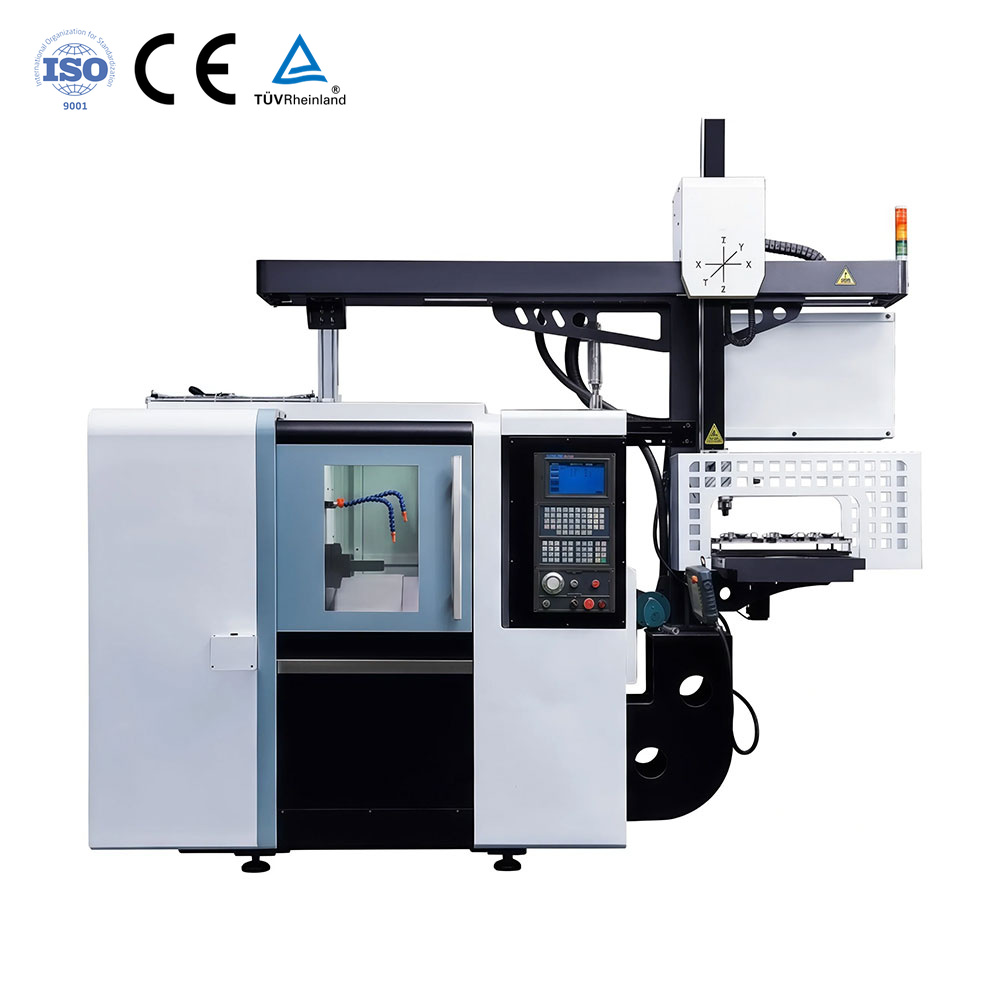

Automated CNC Lathe with Gantry Loading System Integrates machining with automated material handling

Availability:



This CNC lathe is equipped with an advanced gantry loading system, forming a highly efficient automated machining solution. By integrating machining and automatic material handling into one system, the equipment significantly improves productivity, reduces labor dependency, and ensures stable and continuous operation.
Inquire

Product Description

Download

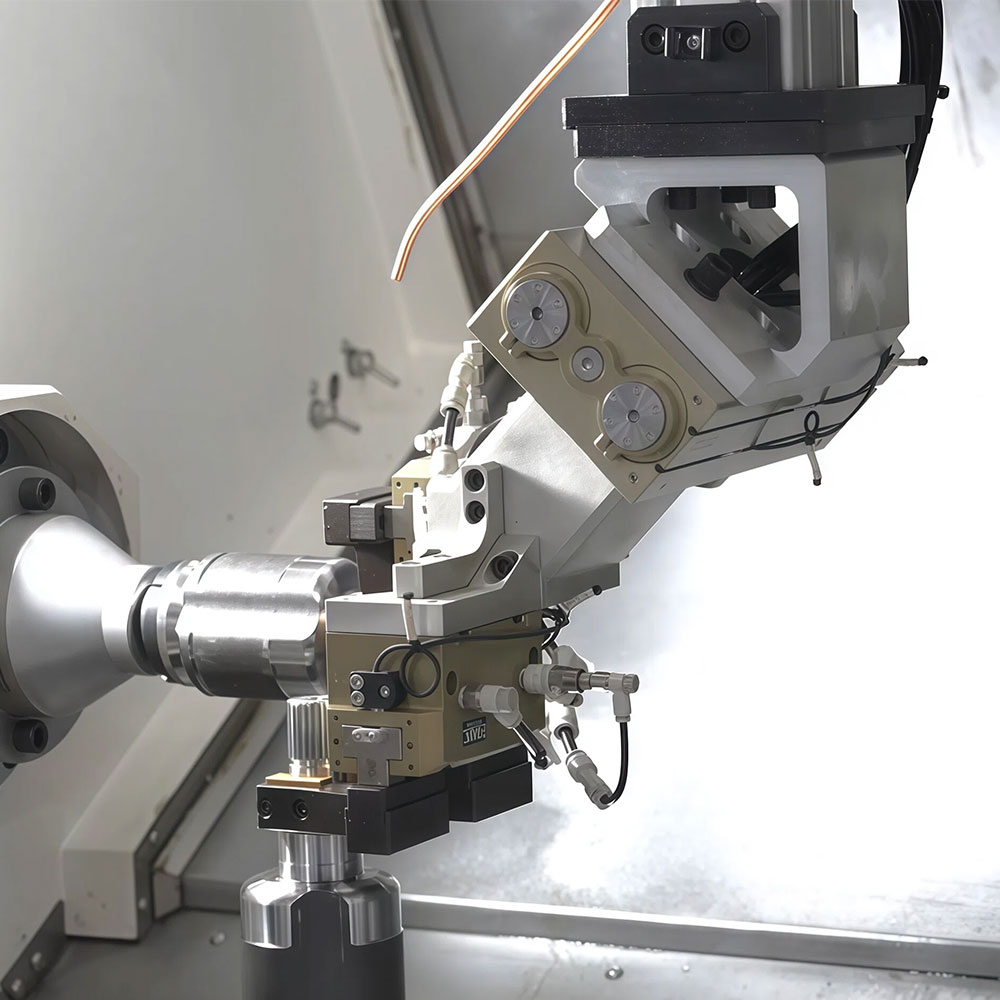

The gantry loading system plays a central role in this solution. Installed above the CNC lathe, the gantry structure uses linear rails and servo-driven axes to move along the machine layout. It is designed to automatically pick up raw materials, load them into the chuck, and unload finished parts after machining. This process is completed with high precision and repeatability, ensuring consistent positioning and minimal cycle time.

Technical Specifications

Category	Content	Unit	Value
Spindle	Spindle head form	ASA	A2-5
	Spring collet	type	Outer diameter 56mm, M48×1.5
	Spindle through hole diameter	mm	Φ48
	Tie rod through hole diameter	mm	Φ40
Processing range	Max. rotation diameter of the bed	mm	320
	Max. processing diameter (disc type)	mm	300
	Max. processing length	mm	350
Mechanical ability	Spindle maximum speed	rpm	3000
	Max. rapid traverse speed of X/Z axis	mm/min	20000
Mechanical precision	X/Z axis repeat positioning accuracy	mm	±0.005
Axial travel	X-axis maximum travel	mm	720 (bidirectional)
	Z-axis maximum travel	mm	350
Knife holder	Tool holder form	type	Gang tool holder (4 pcs)
	Tool specifications	mm	20×20
Motor Power	Spindle motor	kW	5.5
	X-axis motor	N	6
	Z-axis motor	N	6
Other	Orbital form	type	Linear guide
	Best surface roughness	um	Ra ≤ 0.8
	Lathe structure	type	45° slant bed (integral)
	Casting material	type	≥HT300 resin sand casting
	Weight	kg	≈2200
	Overall dimensions (L×W×H)	mm	≈3200 × 1500 × 3200

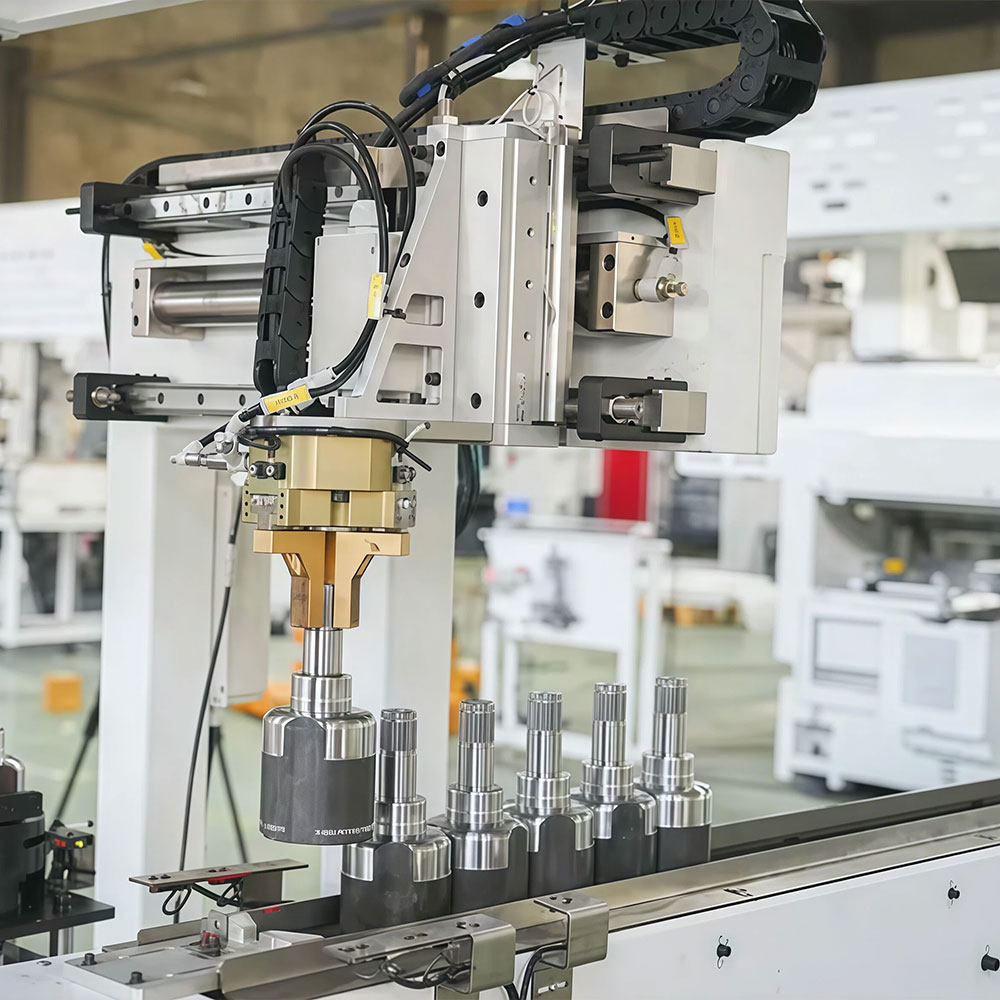

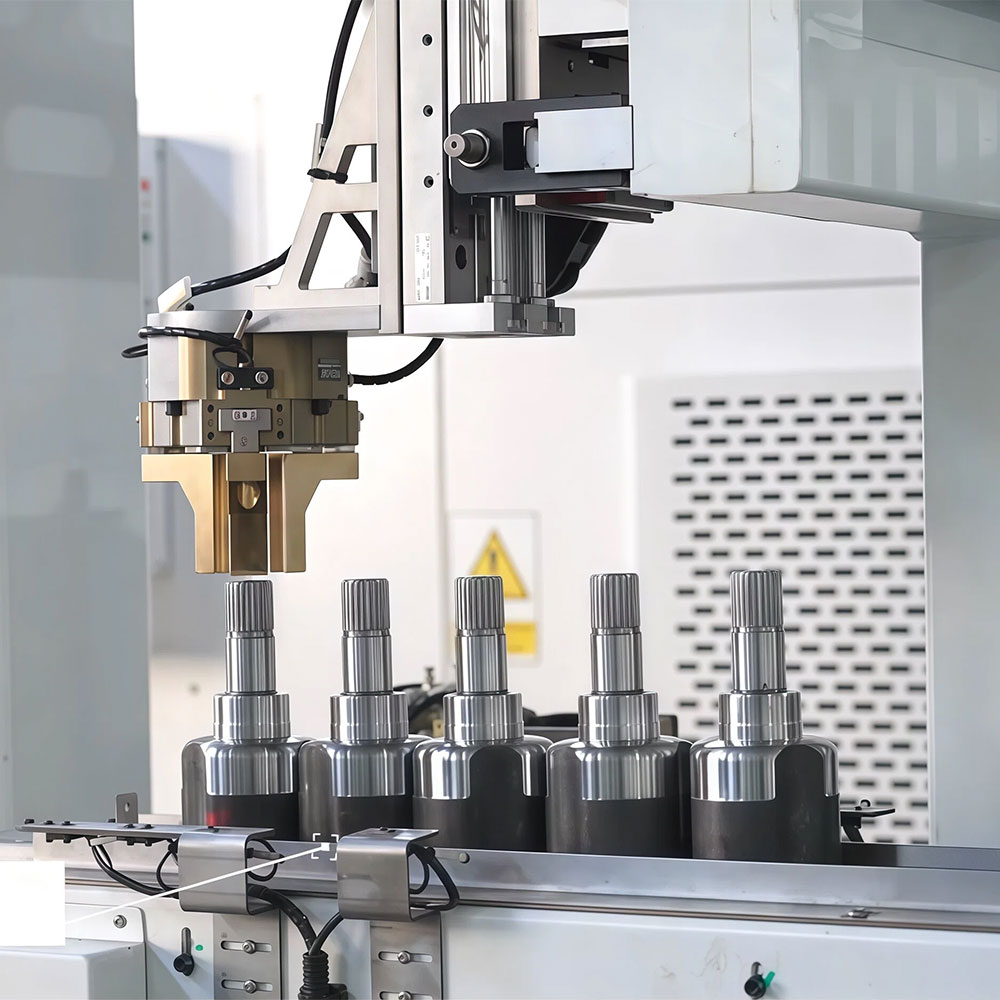

Overhead gantry for high-precision automatic loading/unloading

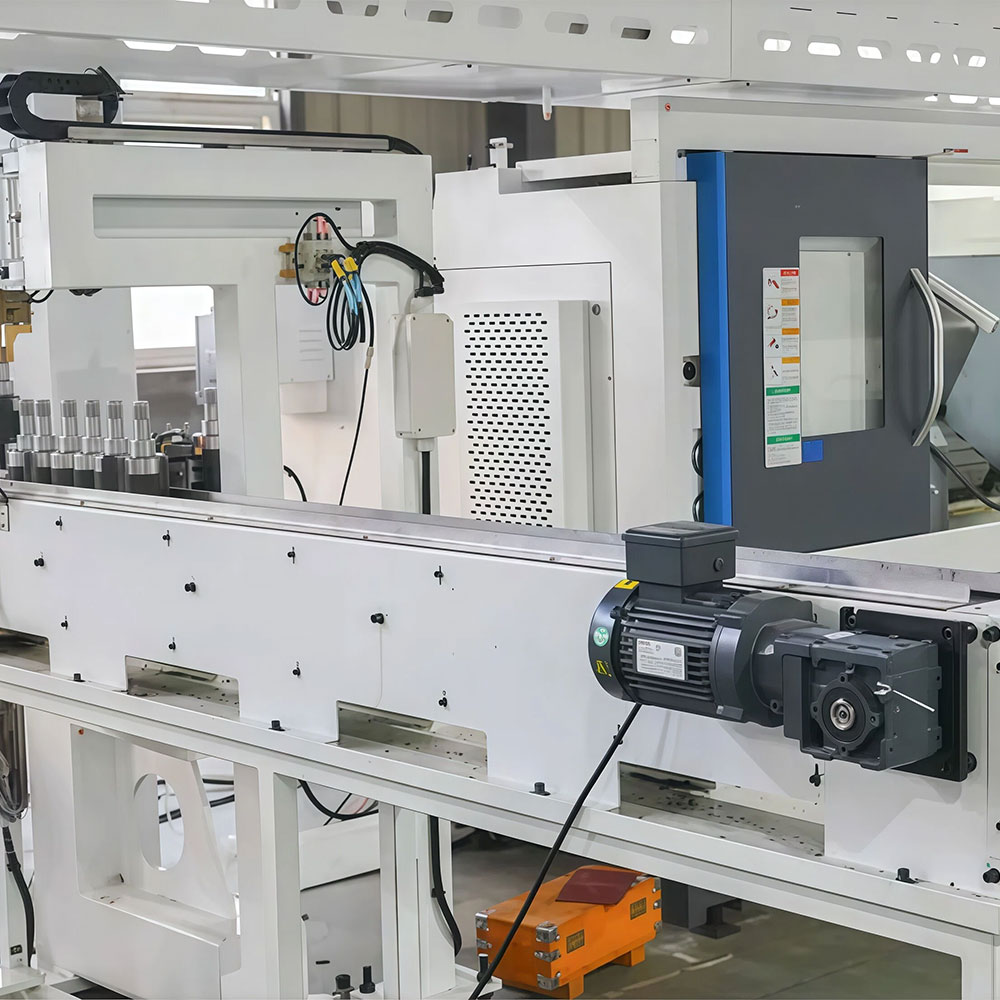

In the machining workflow, raw workpieces are first arranged in a designated loading area. The gantry robot automatically picks up each workpiece and places it into the CNC lathe for processing. After machining is completed, the gantry system removes the finished part and transfers it to the unloading area or conveyor system. This creates a continuous and uninterrupted production cycle without manual intervention.

Superior efficiency, rigidity, safety, and scalability

• Scalability – Covers multiple machines or stations, ideal for scalable production lines.

Rigidity & Stability – Higher rigidity for handling heavier metal parts.

• Efficiency – Optimized motion paths and synchronization reduce idle time, increasing output and lowering cost per part.

• Safety – Minimizes manual intervention, reducing injury risk near moving components.

Used in automotive, valves, hardware; flexibly customizable.

This automated CNC lathe solution is widely used in industries such as automotive parts manufacturing, valve and fitting production, hardware processing, and general precision machining. It is particularly suitable for batch production where consistency, speed, and reliability are critical.

Upgrades standalone machine to intelligent automated cell

The system can be customized according to different production requirements, including the number of CNC machines served by one gantry, workpiece size and weight, gripping method, and integration with additional equipment such as conveyors, inspection stations, or storage systems.

By combining CNC machining with a gantry loading system, this solution delivers a highly efficient, stable, and intelligent manufacturing process, making it an ideal choice for modern automated production lines.
