| Availability: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

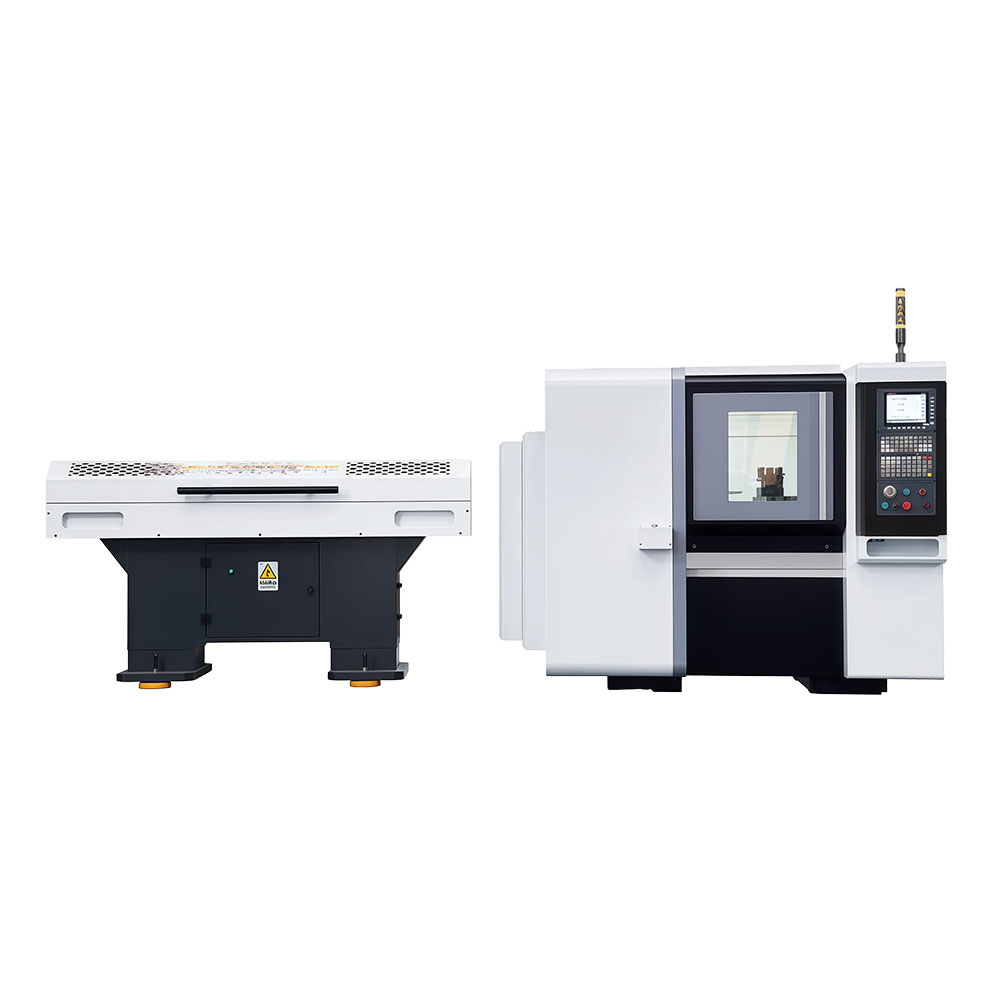

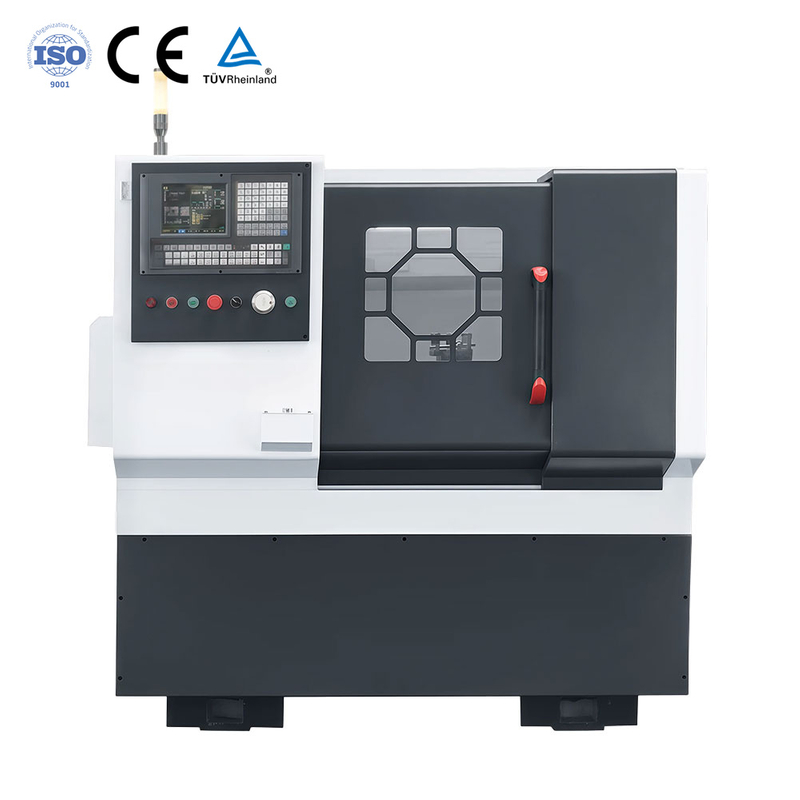

| CNC lathe can realize one-time clamping of parts, automatically complete the turning of parts, and reduce the floor space. The material distribution mechanism can be fully automated. | |||||||||
|
| |||||||||

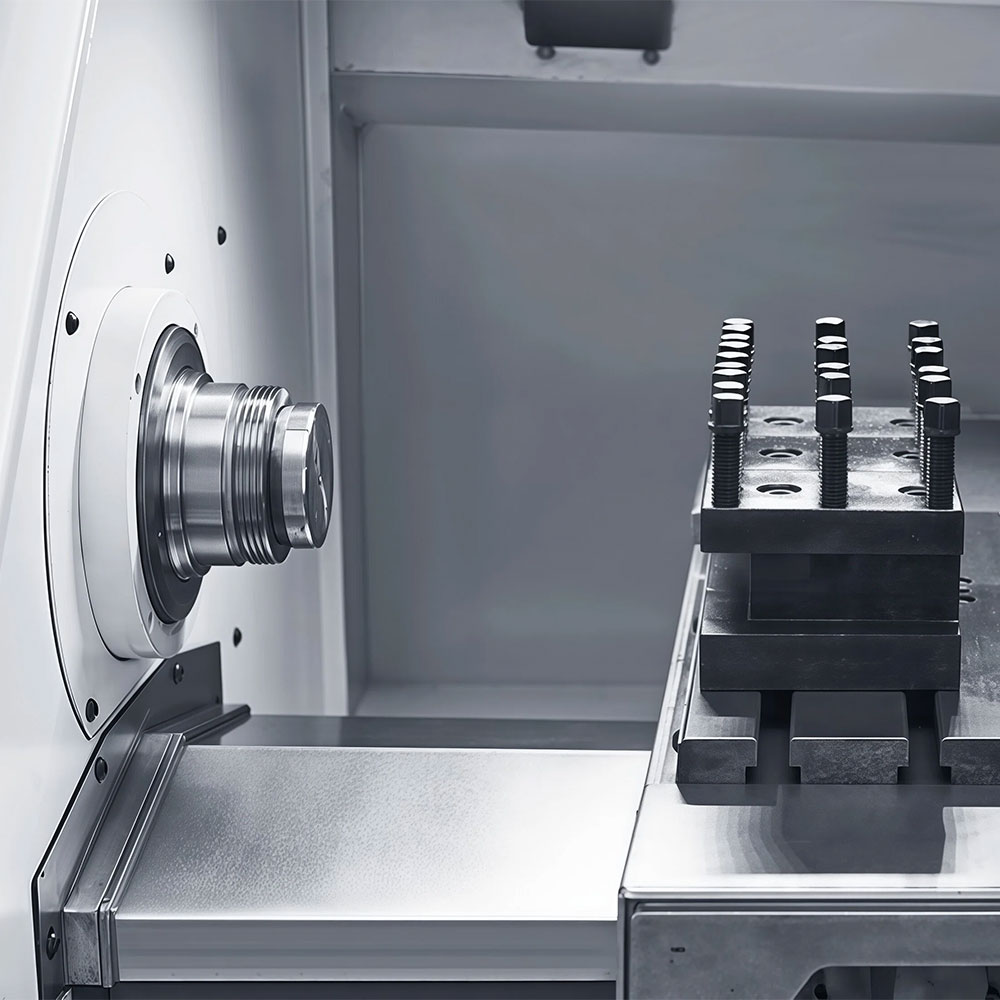

• The spindle box adopts a high-rigidity bearing structure, which can withstand large cutting forces and axial forces.
• The standard spring collet releases the clamp quickly and conveniently.
• The bed adopts a large-span hollow structure in the middle to facilitate pin arrangement, and high-performance linear guides, with high guiding precision, good stability, and fast movement speed, which greatly improves your production efficiency. Can withstand larger loads.
• The bed foot is made of gray cast iron as a whole, which has good shock absorption performance and is not easy to deform.
• The whole machine adopts mechatronics design, with compact and reasonable structure, good safety and easy use.
• The CNC system adopts China famous brand products. Stable operation and rich functions.
Category | Parameter | Unit | Value |
Spindle | Spindle head form | - | ASA A2-5 |
Spring collet | type | Outer diameter 56mm, M48×1.5 | |
Spindle through hole diameter | mm | Φ48 | |
Tie rod through hole diameter | mm | Φ38 | |
Processing range | Max. rotation diameter of the bed | mm | 320 |
Max. processing diameter (disc type) | mm | 320 | |
Max. processing length | mm | 350 | |
Mechanical ability | Spindle maximum speed | rpm | 3000 |
Max. rapid traverse speed of X/Z axis | mm/min | 20000 | |
Mechanical precision | X/Z axis repeat positioning accuracy | mm | ±0.005 |
Axial travel | X-axis max. travel | mm | 720 (bidirectional) |
Z-axis max. travel | mm | 350 | |
Tool holder | Tool holder form | type | Gang type tool holder (4 pcs) |
Tool specifications | mm | 20×20 | |
Motor Power | Spindle motor | kW | 4.0 |
X-axis motor | N | 6 | |
Z-axis motor | N | 6 | |
Other | Orbital form | type | Linear guide |
Casting material | type | ≥HT300 resin sand casting | |
Lathe weight | kg | ≈1700 | |
Overall dimensions of lathe (L×W×H) | mm | ≈2150×1600×1700 | |
Feeder weight | kg | ≈580 | |
Overall dimensions of feeder (L×W×H) | mm | ≈2100×100×1200 |
• JQX-36B CNC lathe can realize one-time clamping of parts, automatically complete the turning of parts, and reduce the floor space. The material distribution mechanism can be fully automated.
• The spindle box adopts a high-rigidity bearing structure, which can withstand large cutting forces and axial forces.
• The standard spring collet releases the clamp quickly and conveniently.
• The bed adopts a large-span hollow structure in the middle to facilitate pin arrangement, and high-performance linear guides, with high guiding precision, good stability, and fast movement speed, which greatly improves your production efficiency. Can withstand larger loads.
• The bed foot is made of gray cast iron as a whole, which has good shock absorption performance and is not easy to deform.
• The whole machine adopts mechatronics design, with compact and reasonable structure, good safety and easy use.
• The CNC system adopts domestic famous brand products. Stable operation and rich functions.

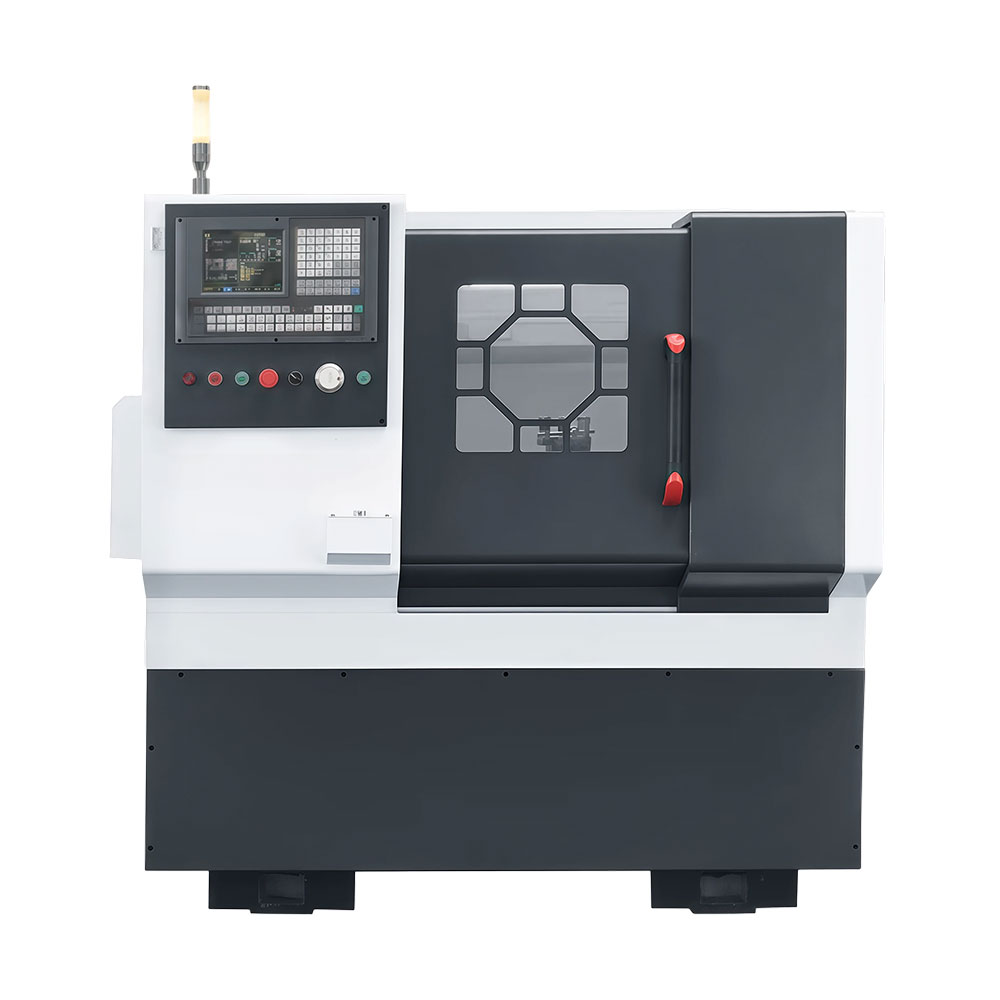

• JQX-36B CNC horizontal lathe has the characteristics of high precision, high power, strong rigidity, etc. Its main components and structure have been optimized and designed. It is the first choice equipment for processing shafts, discs, sleeves, special-shaped surfaces and screw workpieces.
• Bus servo CNC system and full digital AC servo drive, X and Z axes adopt fully closed-loop control, the ball screw pair adopts C5 grade precision ball screw, and the electrical components are all from well-known domestic brands.

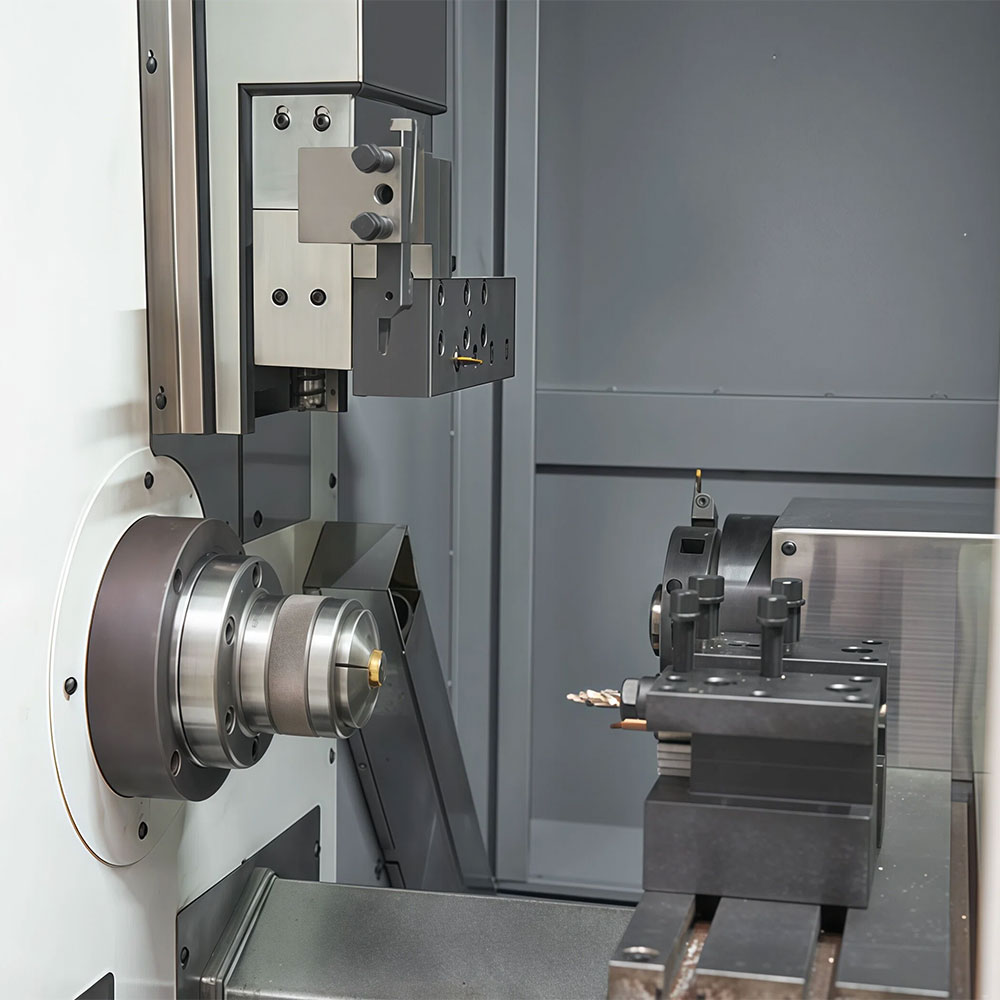

• The machine tool is equipped with 3 row tool holders, which have the characteristics of high positioning accuracy, high strength and good earthquake resistance.
Bus servo CNC system and full digital AC servo drive, X and Z axes adopt fully closed-loop control, the ball screw pair adopts C5 grade precision ball screw, and the electrical components are all from well-known domestic brands.
CNC horizontal lathe has the characteristics of high precision, high power, strong rigidity, etc. Its main components and structure have been optimized and designed. It is the first choice equipment for processing shafts, discs, sleeves, special-shaped surfaces and screw workpieces.
Watch our CNC Horizontal Lathe in action.
