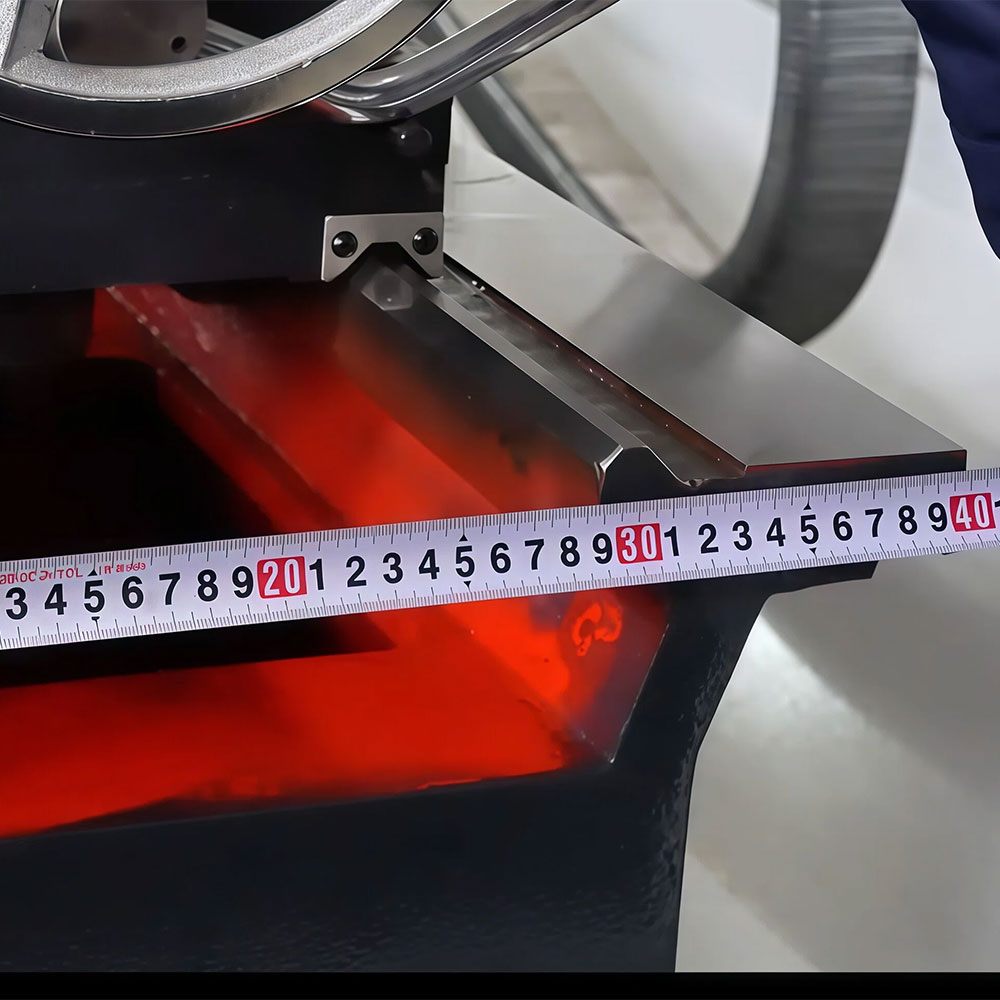

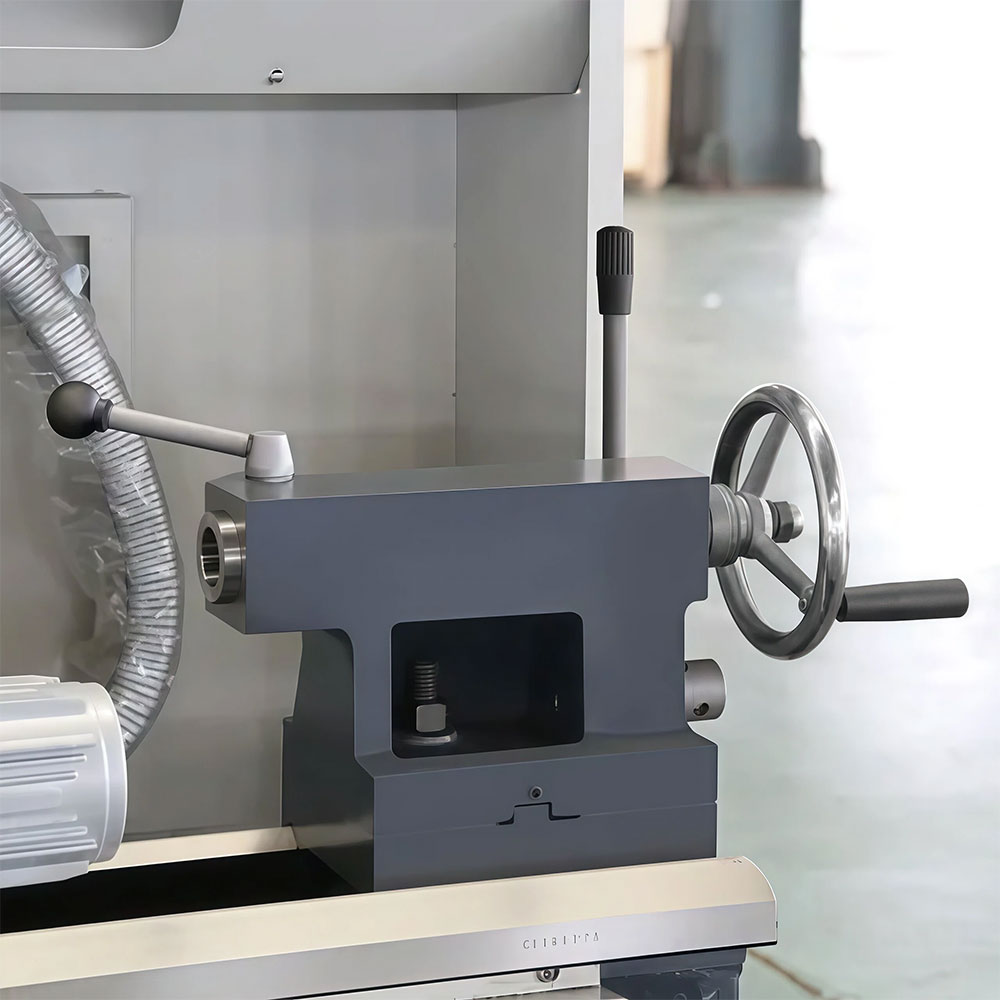

• Hardened Guideways: Bed and carriage guide rails undergo super audio frequency quenching for extended service life
• Precision Transmission: Equipped with precision ball screw pairs for accurate and smooth movement
• Quick Clamping Mechanism: High-efficiency clamping system reduces auxiliary time

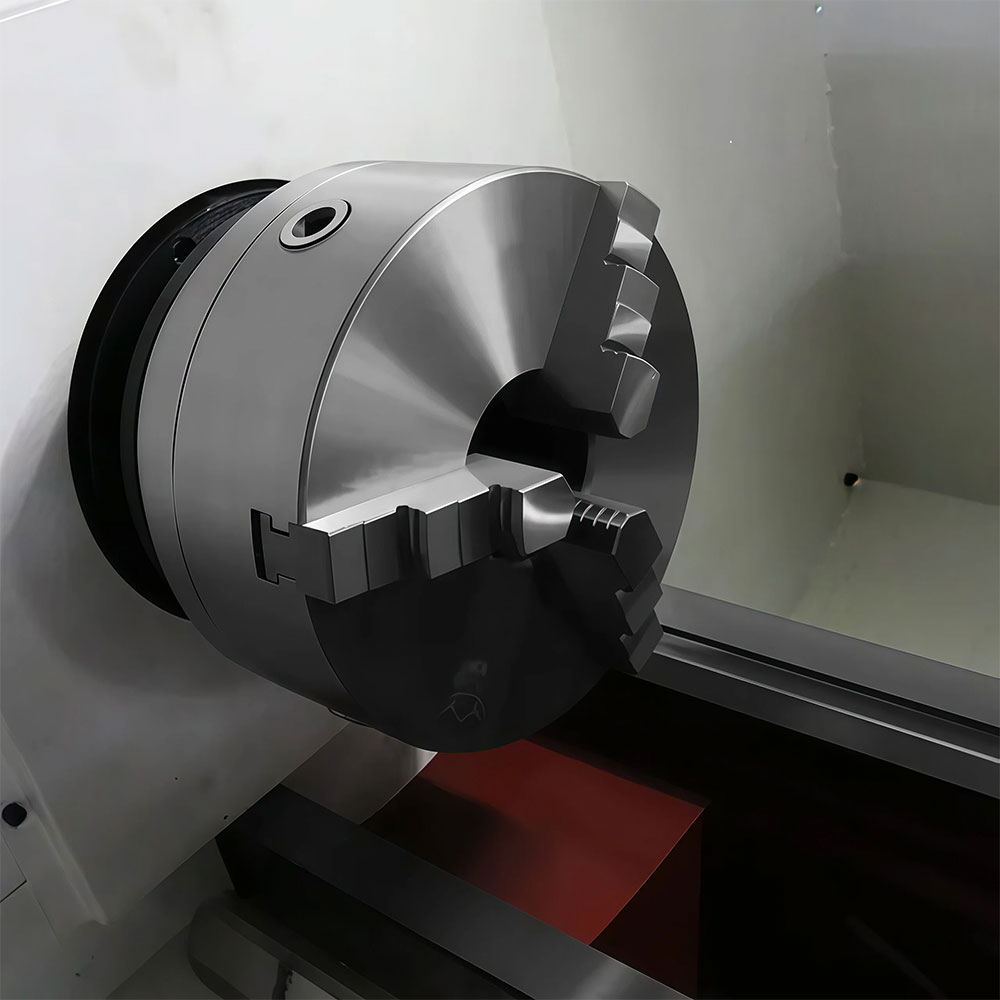

• Flexible Chuck Options: Elastic collet chuck or Ø200 three-jaw chuck available (optional)
• High-Precision Spindle: Uses precision matched bearings (front 3, rear 2) for superior running accuracy
• Multiple Clamping Methods: Optional clamping modes – pneumatic, cylinder, or hydraulic
Category | Parameter | Unit | Value |
Spindle | Spindle through hole diameter | mm | Φ48 |
Draw tube through hole diameter | mm | Φ40 | |
Processing range | Max. rotation diameter of the bed | mm | Φ400 |
Max. workpiece rotation diameter on the slide | mm | Φ100 | |
Max. processing workpiece length | mm | 350 | |
Processing thread range (metric) | mm | 0.25–12 | |
Processing thread range (imperial) | - | 33 1/2–3 TPI | |
Mechanical ability | Spindle speed range | r/min | 200–2500 |
X-axis rapid forward speed | mm/min | Servo 8000 | |
Z-axis rapid forward speed | mm/min | Servo 10000 | |
Cross feed speed (stepless) X-axis | mm/min | 5–1000 | |
Longitudinal feed speed (stepless) Z-axis | mm/min | 10–2000 | |
X-direction travel / Z-direction travel | mm | 300 / 400 | |

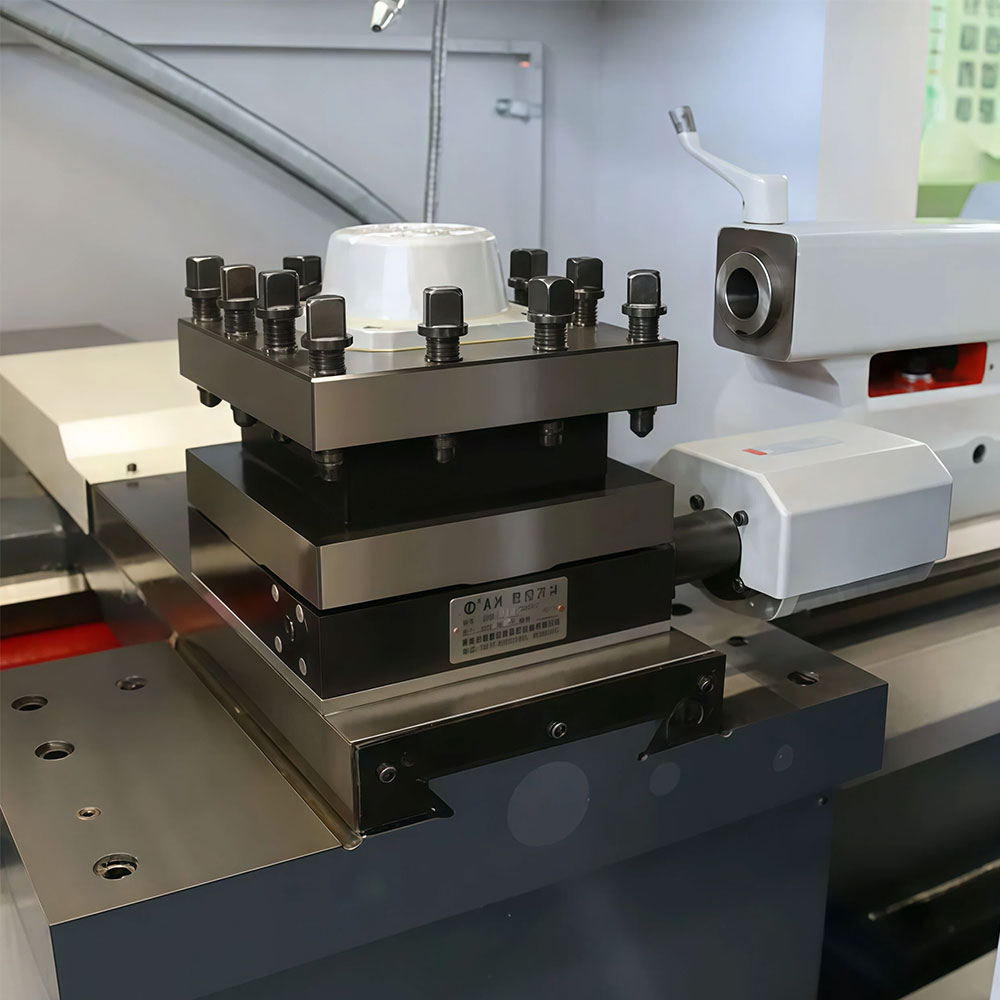

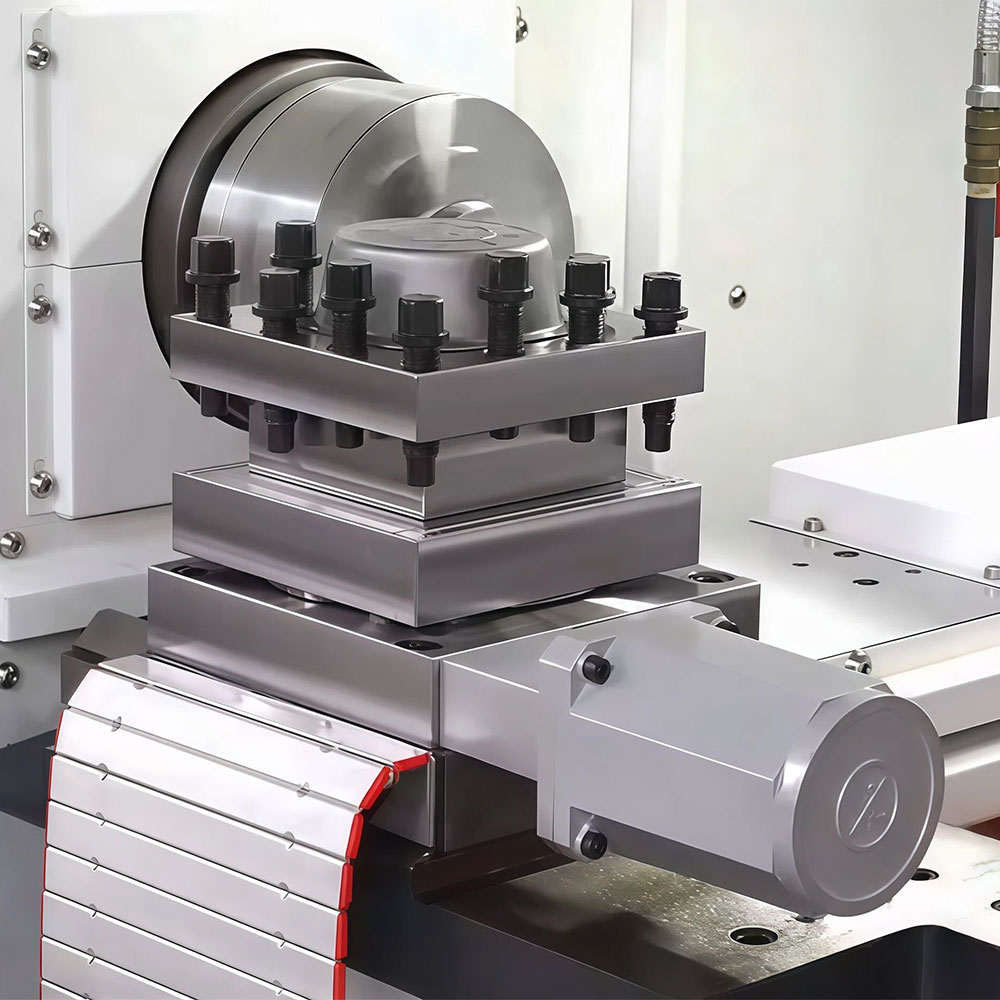

Number of stations for electric tool holder | - | 3 sets / 4 stations (optional) | |
Motor Power | X-axis pulse equivalent | mm | 0.01 |
Z-axis pulse equivalent | mm | 0.01 | |
Main motor power (frequency conversion) | kW | 4 | |
Other | Weight | kg | ≈1300 |
Overall dimensions (L×W×H) | mm | ≈1850 × 1350 × 1600 |
Turning cylindrical surfaces
Turning conical surfaces
Turning arc surfaces
End face turning
Grooving
Drilling and reaming
Various thread processing
• It has the functions of turning cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, drilling and reaming and processing various threads.
• It is suitable for use in automobile and motorcycle parts, valves, electric tools, hardware instruments and other industries. It can process various metal or non-metal parts with surface roughness of Ra3.2-0.8μm.
Ideal for manufacturing components in:
 Valves |  Automobile and motorcycle parts |  Electric tools |  Hardware instruments |
• The bed and carriage guide rails are super audio quenched and have a long service life.
• Adopt precision ball screw auxiliary transmission.
• Quick clamping mechanism, high efficiency.
• Flexible chuck and Φ200 three-jaw chuck are optional.
• The spindle uses precision matched bearings. (First 3, Last 2)
• Clamping method: pneumatic, cylinder or hydraulic (optional).

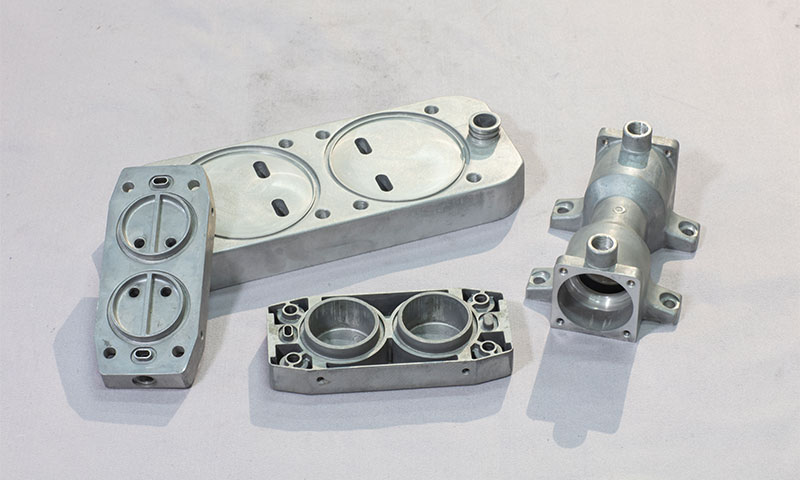

Capable of processing both metal and non-metal parts, achieving surface roughness of Ra 3.2~0.8μm to meet diverse quality requirements.

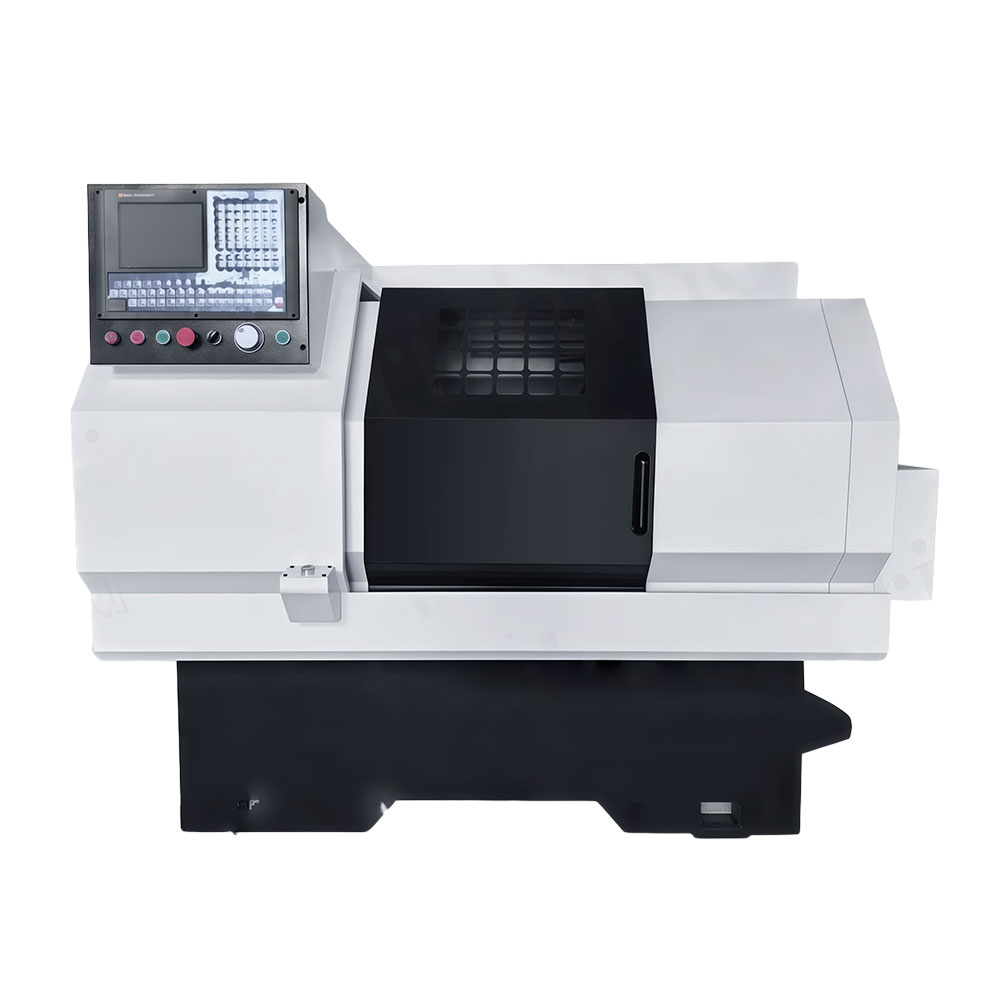

Watch our High-Precision Hardened Guideways Lathe in action.
