| Enhance your production efficiency with our advanced precision valve assembly equipment. Designed for complex micro-component installation, this system delivers exceptional accuracy and stability. We supply highly tailored automation machinery to support large-scale enterprise manufacturing, ensuring your factory achieves superior output quality and maintains a highly competitive edge in the market. | |||||||||
|
| |||||||||

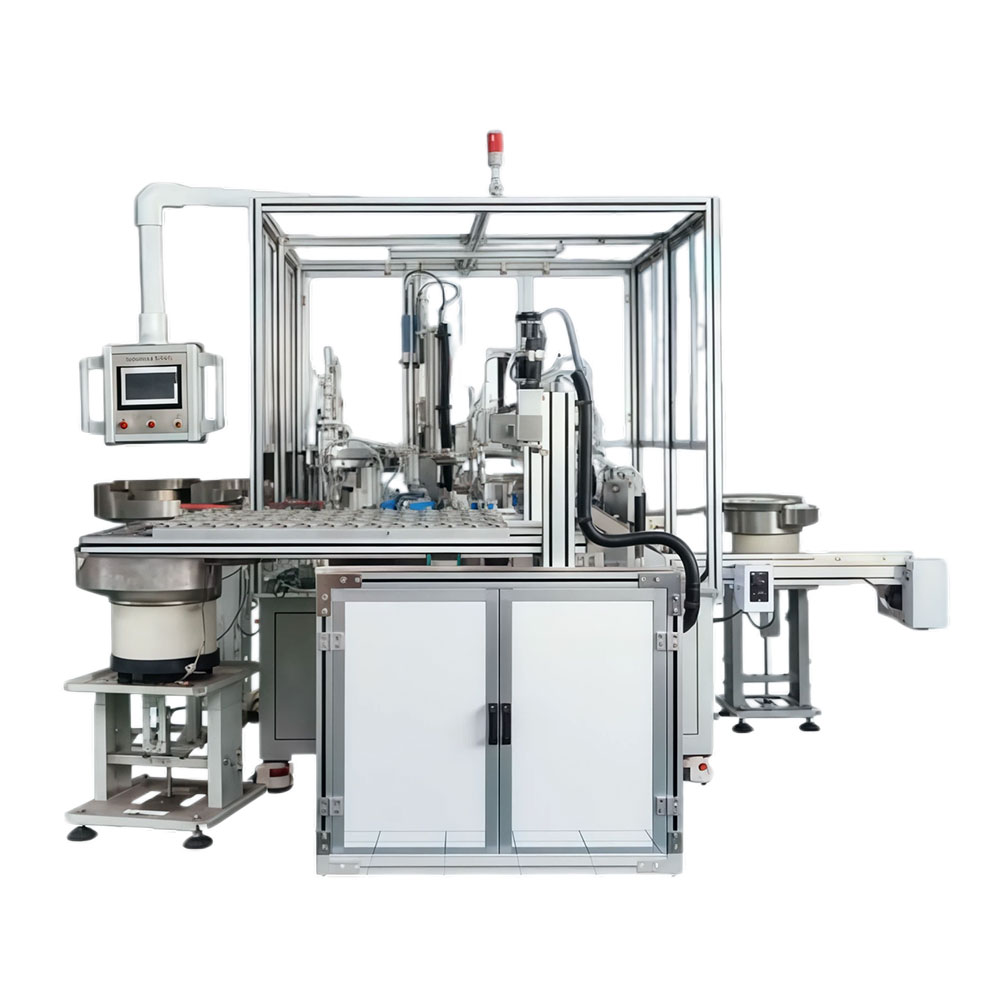

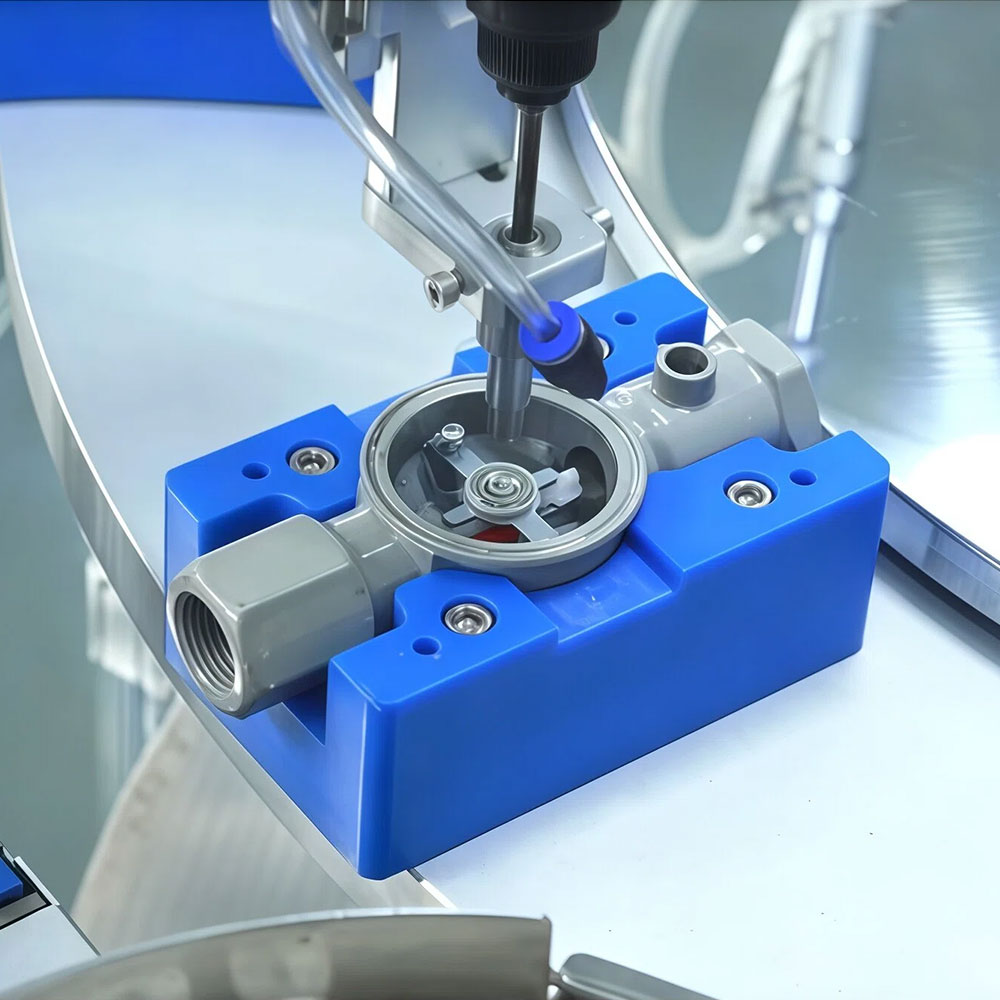

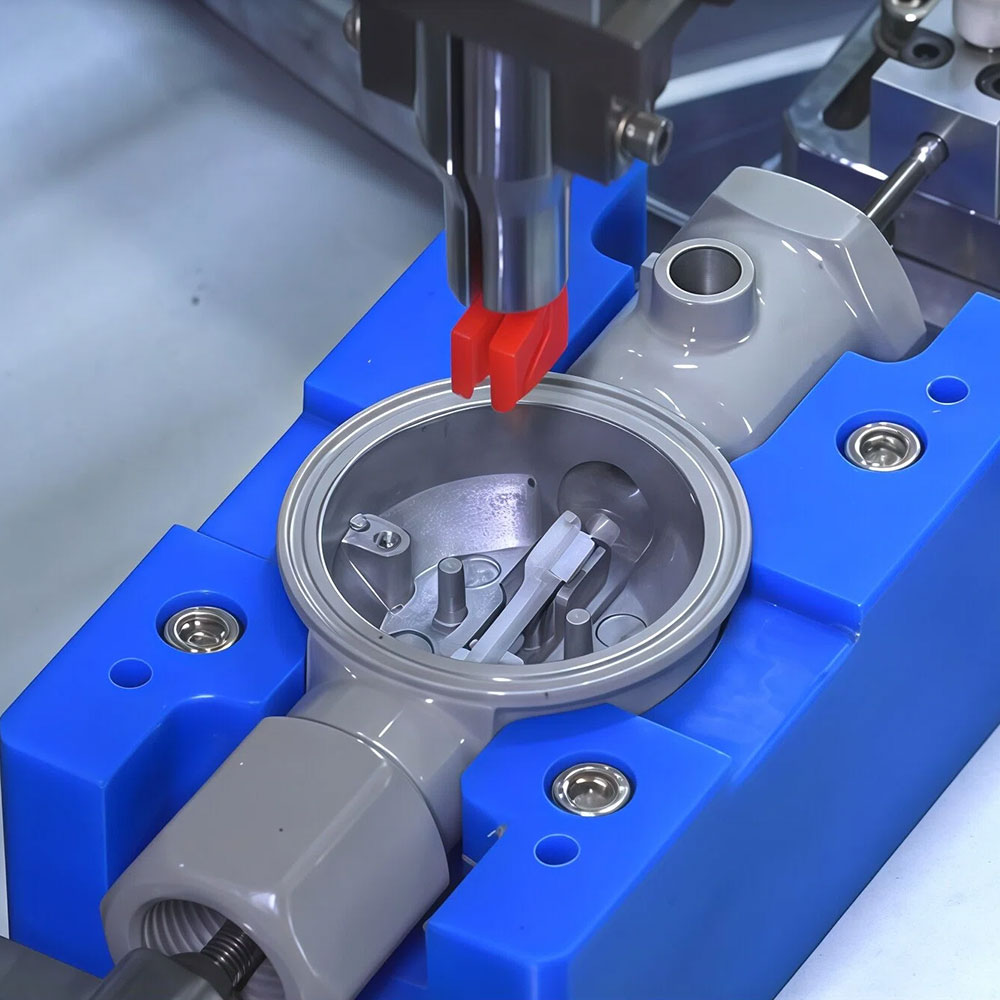

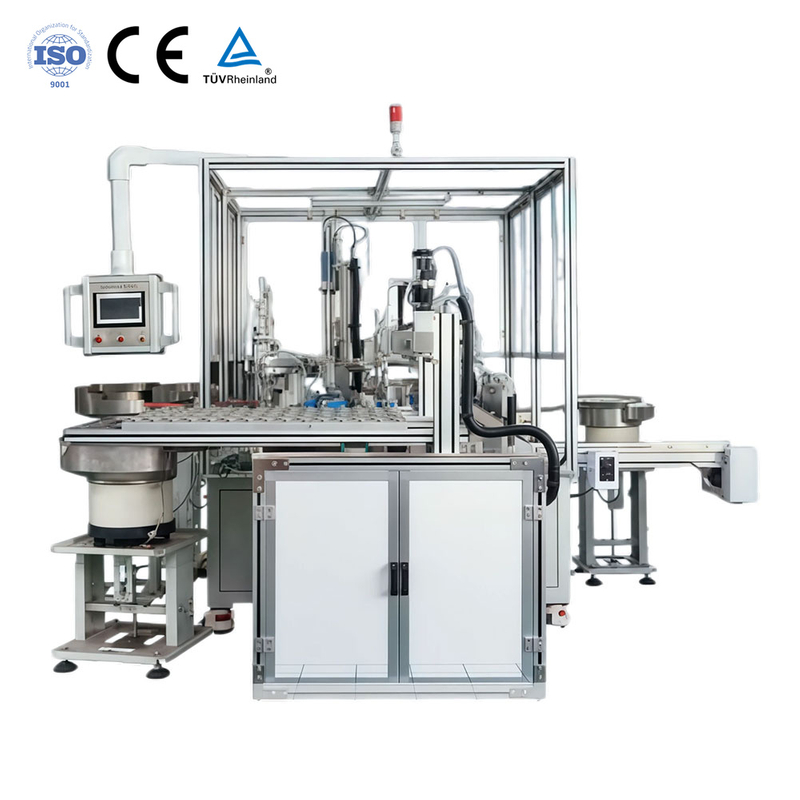

A safety valve is known as the "last line of defense" for equipment, where its precise internal structure and complex multi-component assembly directly determine operational reliability and sealing performance. Specifically designed for the automated installation of ten distinct components on our custom valve assembly line, this system adopts an optimized semi-automatic design philosophy. The operator only needs to place the valve housing on the first station, and the machine automatically completes the complex, repetitive, and high-precision assembly of all remaining parts, retaining manual loading flexibility while handing over micro-component precision entirely to automation to achieve an optimal balance between efficiency and flexibility.
Item | Brand | Specification |
Cylinder | AirTAC | A variety of specifications |
Solenoid valve | AirTAC | A variety of specifications |
Proximity sensors | OMCH | Inductance and capacitance proximity switches |
Photoelectric sensor | Made in China | Optical fiber, laser, infrared, etc |
PLC & Touch screen | XINJE | Multi-function customization |
Item | Specification |
Scope of application | Customized |
Servo power | 400W |
Speed ratio of reducer | 5:1 |
Processing efficiency | <5 seconds/piece |

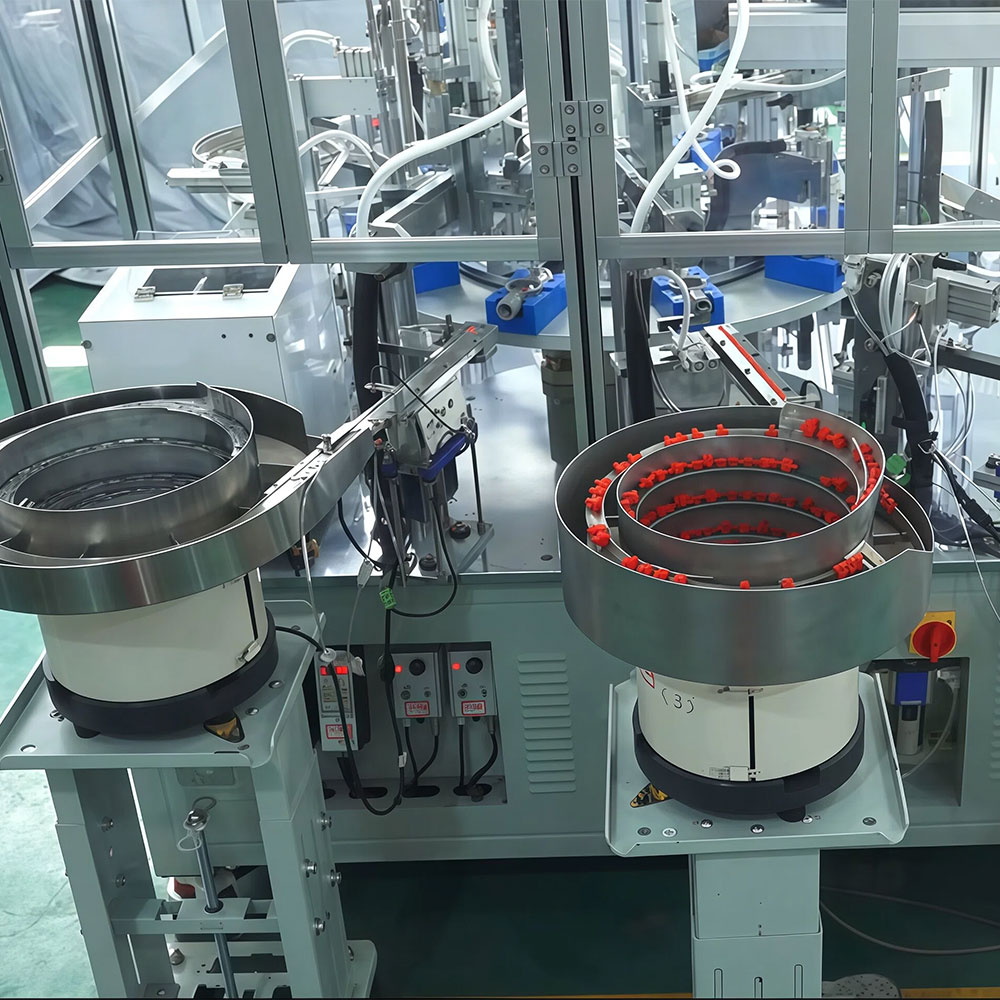

Matching vibration plate | 8 sets |
Compressed air | ≥4kg/cm² |
Power supply | AC220V |
Overall size | Determined by actual machine |
Weight | Determined by actual machine |

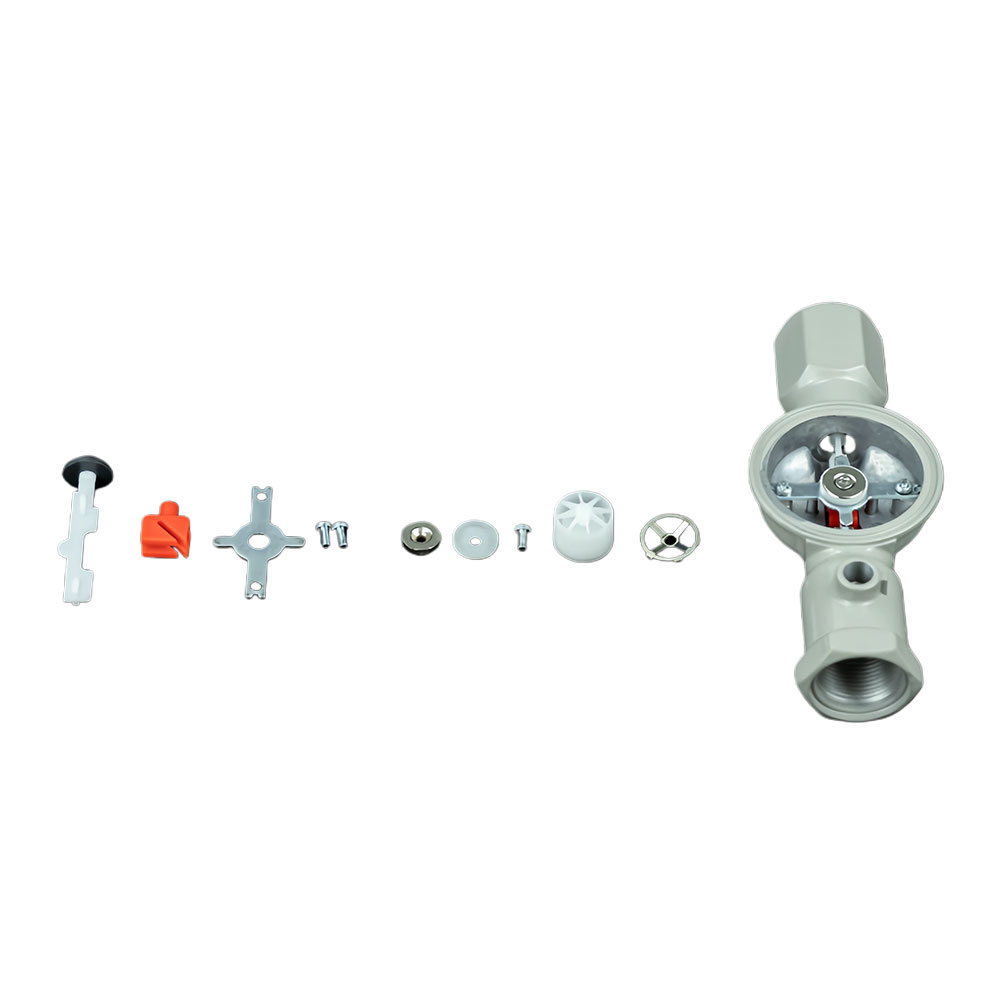

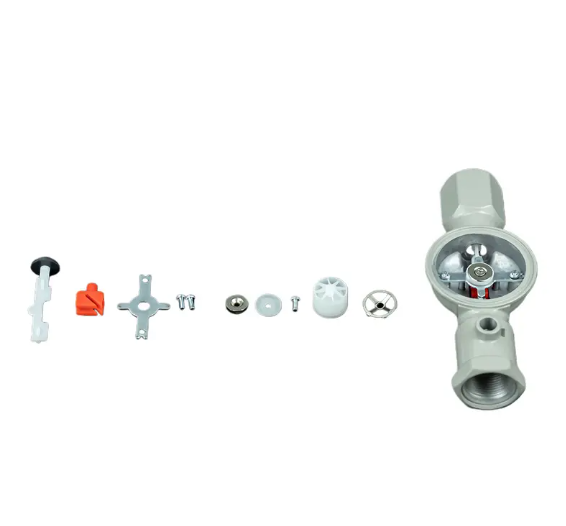

The core challenge lies in the extremely small size of the safety valve's internal parts, including fine springs, miniature sealing gaskets, and intricate valve core components. These parts are measured in millimeters or even sub-millimeters, placing extremely high demands on the precision of gripping, positioning, and pressing. Traditional pneumatic grippers struggle to handle them directly, necessitating the use of ingenious mechanical structures and assembly strategies within our safety valve assembly equipment.
Our micro-part assembly machine requires minimal manual intervention while maximizing your overall factory output speed. Processing efficiency consistently reaches less than five seconds per piece, ensuring high-volume production demands are met without compromising structural integrity. The strategic integration of high-performance servo motors and custom vibration plates guarantees smooth, uninterrupted operation throughout the entire manufacturing shift to secure maximum return on investment.
This semi-automatic safety valve assembly machine, operating on the principle of manual housing loading and fully automatic internal component assembly, retains the flexibility of manual work while fully leveraging the advantages of automation in micro-part assembly. Its core value lies not only in replacing manual labor but also in using ingenious mechanical structures to solve the complex challenges of assembling micro-components that are typically difficult for humans and even harder for machines.
We exclusively utilize premium industrial components like AirTAC cylinders and XINJE control systems to ensure long-term mechanical stability. This rigorous component selection process minimizes maintenance downtime and significantly extends the operational lifespan of the machinery. Your custom factory setup benefits from an intelligent system designed to withstand rigorous, continuous manufacturing cycles without degrading structural assembly accuracy over prolonged operational periods.
Our industrial safety valve automation systems are perfectly suited for producing pressure relief devices used in demanding heavy industrial environments. These critical safety components require absolutely flawless assembly to function correctly under extreme pressure conditions. Our machine ensures that every miniature internal part is precisely seated, guaranteeing the final assembled product consistently meets strict industrial safety standards and complex performance certifications.
For manufacturers producing advanced fluid control systems, the precise assembly of miniature internal components remains absolutely non-negotiable. Our custom machinery provides the exact mechanical tolerances needed for specialized liquid and gas handling valves. This dedicated precision ensures leak-proof performance and exceptional structural durability in the final assembled fluid control units, which are widely utilized across various demanding commercial and industrial sectors.
We believe that intelligent manufacturing is built on precise control of processes and seamless connectivity between technologies, systems, and people. We are a technical service-oriented company and system integrator of smart manufacturing solutions. What sets us apart is not just the safety valve manufacturing machine we supply, but how we supply it. We combine deep technical expertise with extensive industry resources to deliver enterprise-grade solutions that are flexibly configured, cost-effectively delivered, and rapidly supported. We provide flexible smart manufacturing solutions tailored to your parts, volume, and budget, keeping your production running with minimal downtime to ensure long-term operational success and stability.
Our custom assembly machine processes components at a rapid rate of less than five seconds per piece, significantly boosting overall production capacity.
Yes, the scope of application is fully customized to accommodate your specific valve designs and component requirements precisely.
The machine operates on a standard AC220V power supply, making it exceptionally easy to integrate into standard industrial facility electrical grids.
