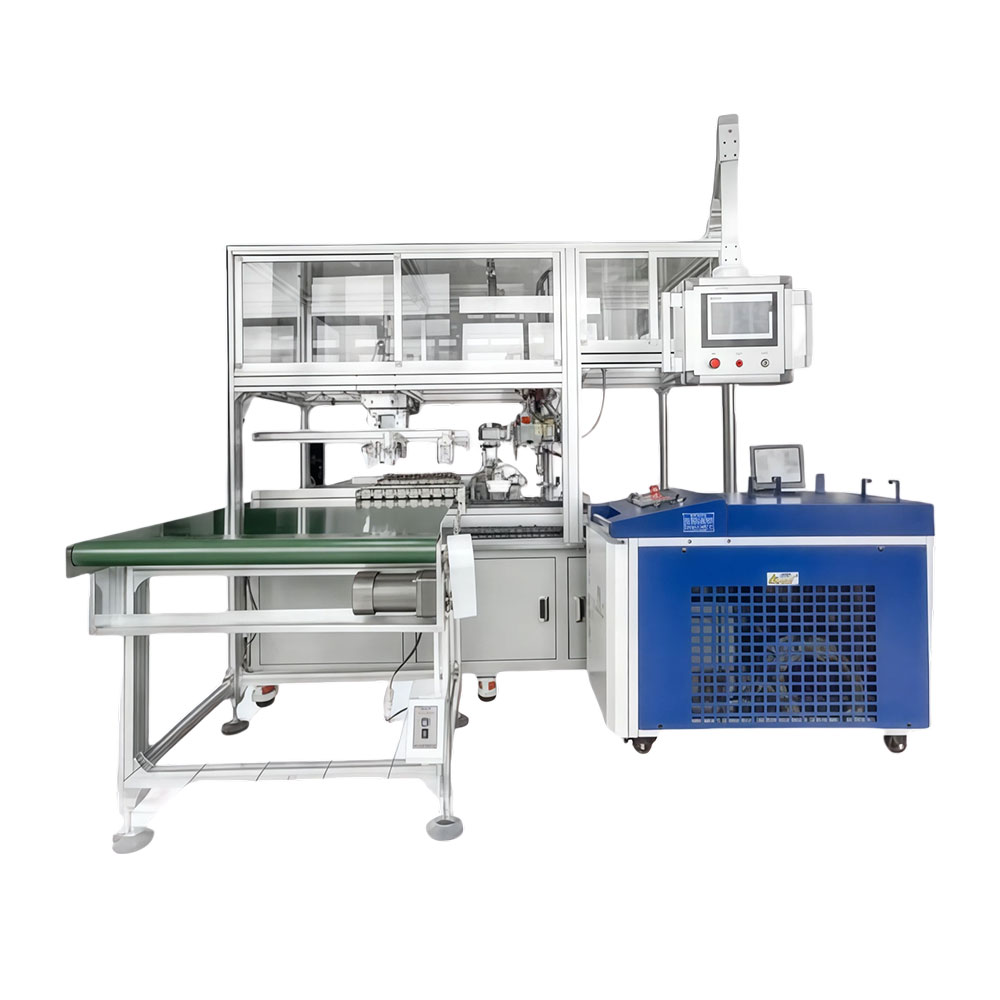

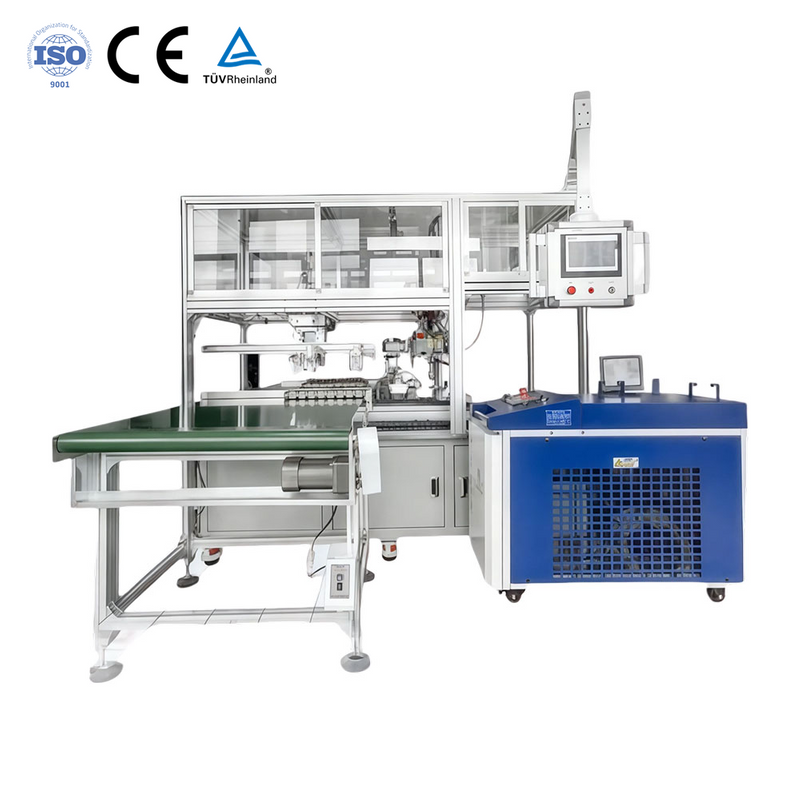

| Designed for high-volume industrial operations, our 8-way manifold automatic assembly and laser welding production line transforms multi-component fabrication. By combining precision part feeding with immediate laser integration, this factory-direct solution ensures leak-proof performance for complex manifolds, elevating your production capacity with enterprise-grade intelligent manufacturing. | |||||||||
|
| |||||||||

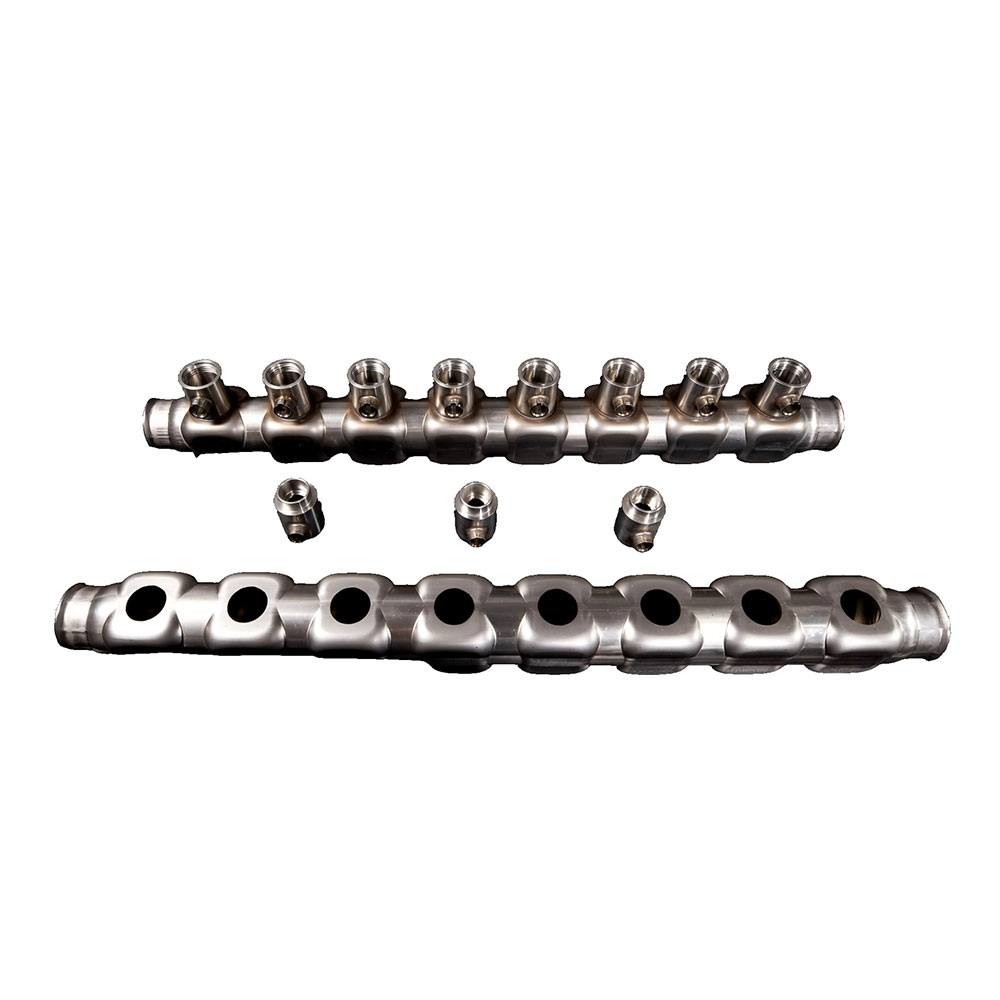

Traditional manifold production faces two major challenges: ensuring eight connectors are precisely aligned and consistently positioned, and achieving permanent joining to guarantee leak-proof, long-term performance. Our specialized production line solves these challenges seamlessly. Consisting of one main body and eight branch connectors—nine components in total—the system integrates automatic feeding, precision assembly, and laser welding into a single, fully automated process. This transforms individual parts into finished, market-ready products with unprecedented speed and consistency.
Our system features continuous conveyor belt feeding equipped with precision clamping technology. This ensures that the main body of the manifold is held securely and positioned with exact tolerances, eliminating manual handling errors and keeping the production pace steady. By automating the initial material intake, the equipment significantly reduces operator fatigue and prevents the bottlenecks commonly associated with hand-loading multi-port components.

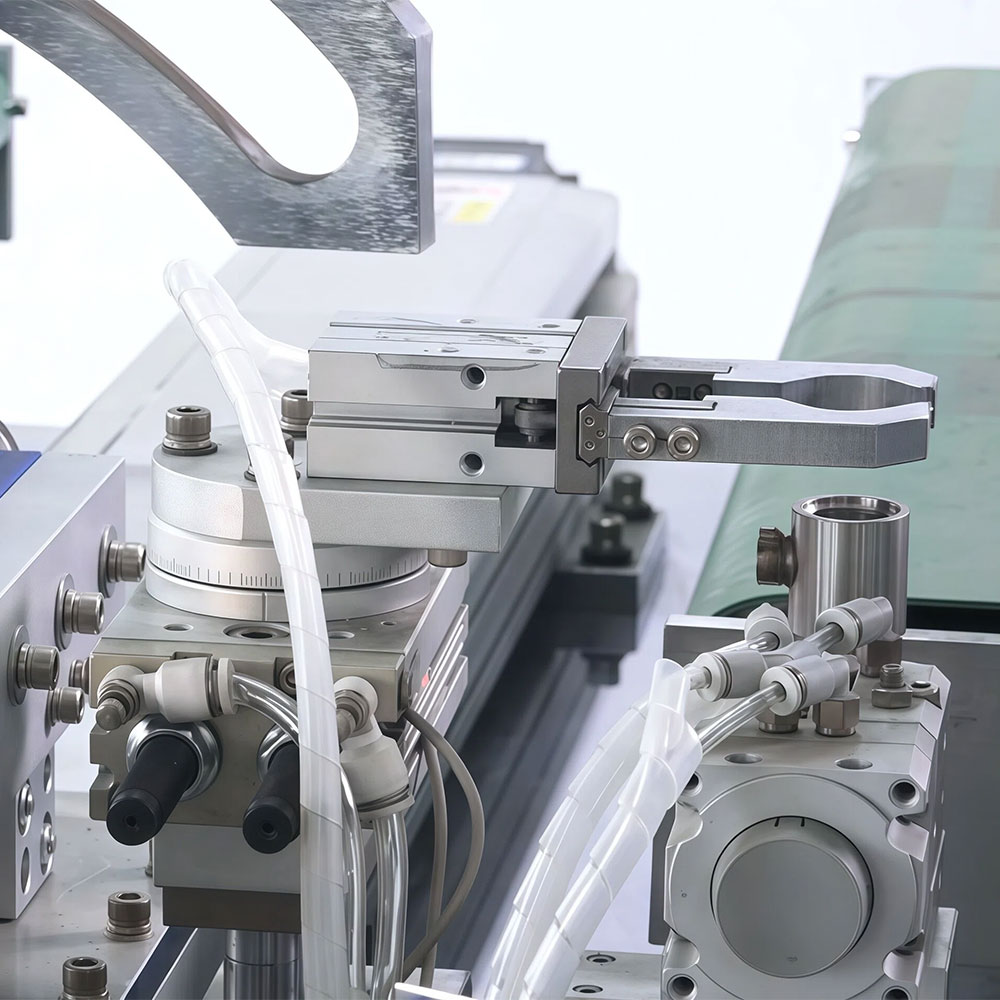

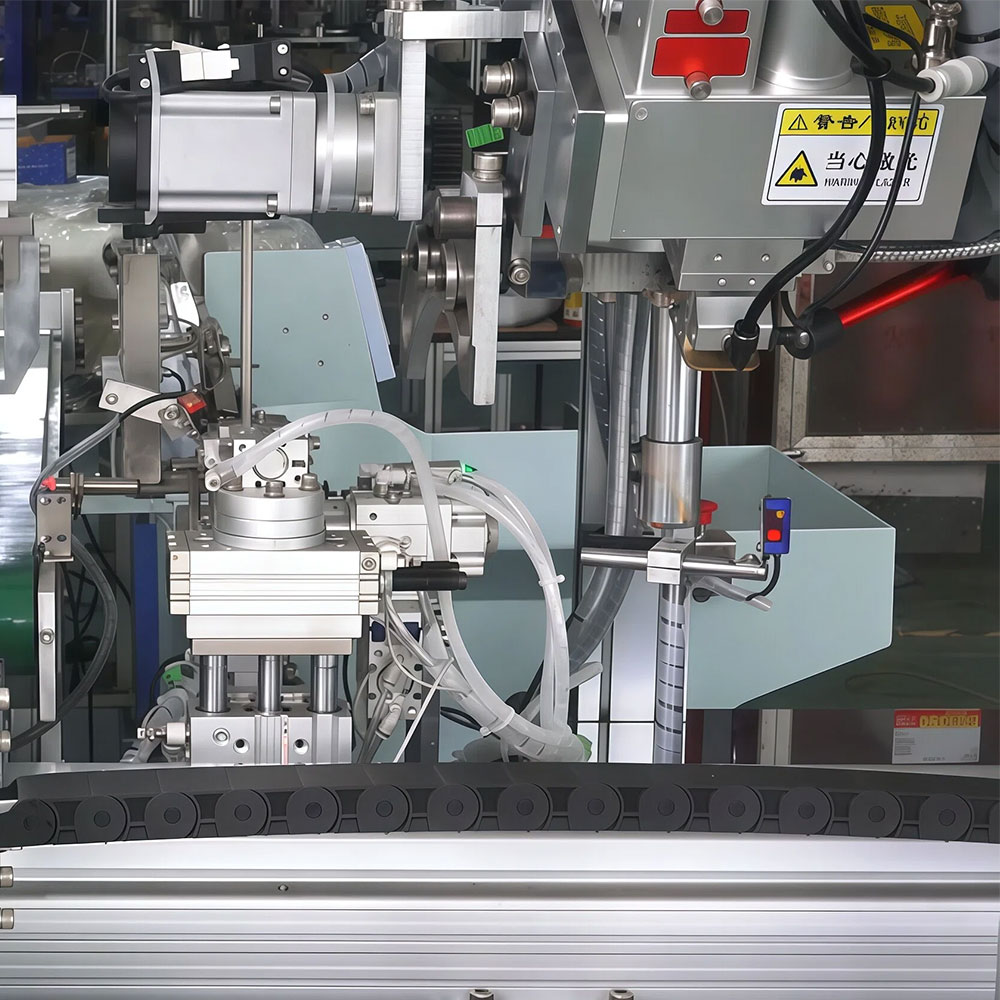

The equipment utilizes a highly synchronized multi-station indexing system. It allows for the sequential and accurate multi-component automated assembly of all eight connectors. Each station performs its task with meticulous precision, reducing the risk of misalignment during high-speed runs. This structured progression ensures that every connector is properly seated before the part moves to the next phase, guaranteeing superior build quality.

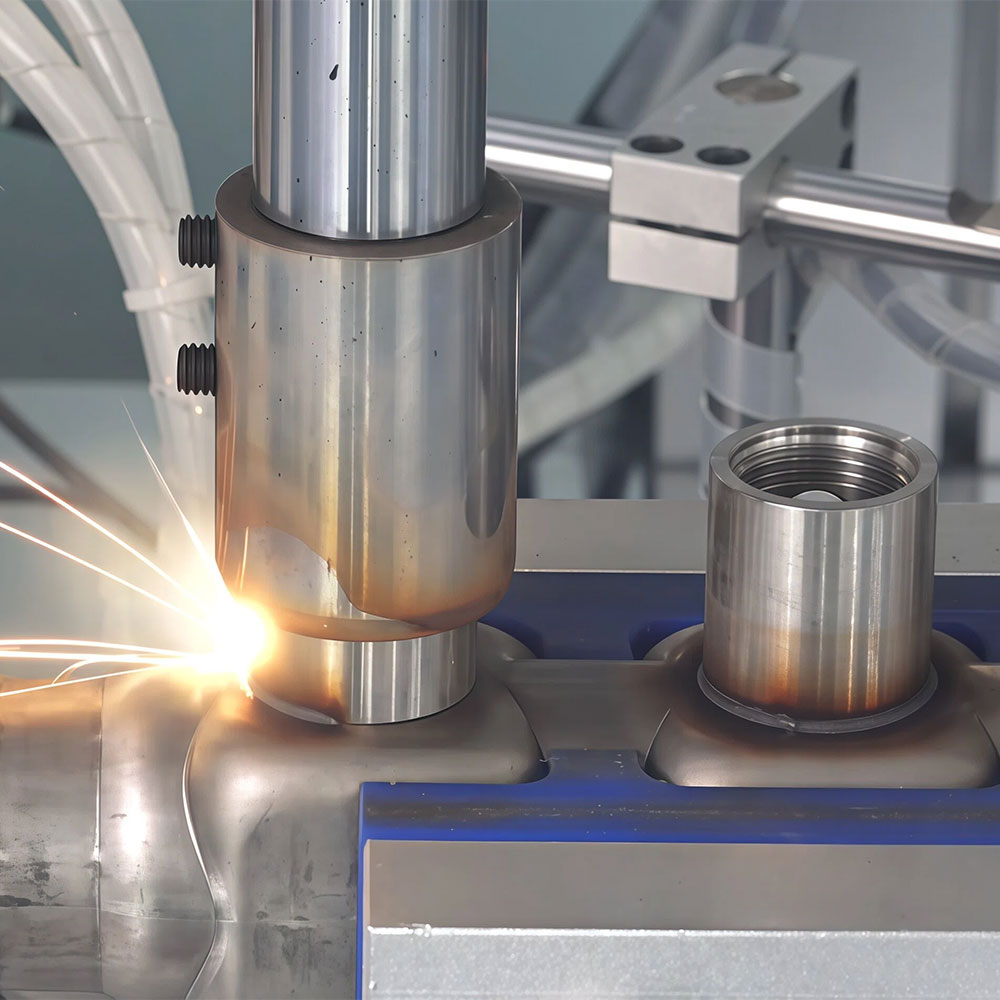

At the core of this machine is the inline laser welding system. It executes immediate welding right after the assembly stage, ensuring the connectors are permanently integrated into the body. This immediate thermal bonding guarantees superior structural integrity and leak-proof performance. The fast-acting laser technology applies concentrated heat precisely where needed, avoiding thermal distortion in the surrounding metal and maintaining strict dimensional tolerances.
Built with adaptability in mind, the modular structure of this equipment allows stations and processes to be added or adjusted as needed. This flexibility ensures that the production line can evolve alongside your future product developments or varying batch requirements. Plant managers can easily reconfigure the setup to accommodate different manifold designs, providing an excellent return on investment for long-term operational planning.
The key innovation of our system is integrating precision assembly and laser welding into a single automated process. This completely eliminates the need to transfer semi-finished products between different machines, drastically reducing cycle times and potential transit damages. Consolidating these critical steps also saves valuable floor space in your facility and minimizes the tracking complexity typically required for multi-stage manufacturing routing.
By minimizing human intervention, the production line ensures remarkable consistency in both assembly accuracy and welding quality. Every manifold produced meets strict tolerance standards, reducing scrap rates and boosting your overall operational profitability. The automated validation at each station provides peace of mind that the final shipped components will perform flawlessly in the field, protecting your brand reputation and customer satisfaction.
Whether you are currently focusing on 8-way manifolds or planning future development for new multi-port fittings, our custom manifold production solutions allow for quick adjustments. The equipment is engineered to accommodate changing requirements without requiring massive reinvestments. This forward-thinking design philosophy ensures that your manufacturing capabilities remain agile and competitive as market demands and plumbing standards continue to evolve.
 HVAC Systems Manifolds for underfloor heating, radiators |  Plumbing and Sanitary Ware Shower manifolds, faucet components |  Hydraulic & Pneumatic Multi-port valve bodies, distribution blocks |  Gas Distribution Multi-port pipe fittings |  Industrial Piping Instrumentation manifolds, sampling systems |
Our production line is ideal for manufacturing manifolds used in underfloor heating and sophisticated radiator setups. The precise welding ensures the components can handle fluctuating thermal stresses and pressures inherent in modern HVAC systems safely and effectively. Delivering leak-free performance is critical for interior climate control systems, and our machinery provides the exact reliability that premium heating contractors demand for their installations.
The system excels in producing shower manifolds and complex faucet components. The seamless laser welds provide the smooth, leak-proof joints required for high-end water distribution applications, ensuring long-lasting performance in residential and commercial settings. Manufacturers can confidently supply sanitary ware products knowing that the internal connections have been permanently bonded to withstand decades of daily municipal water pressure fluctuations.
Engineered for demanding industrial environments, this machinery efficiently produces multi-port valve bodies and distribution blocks. The robust construction of the finished products withstands the intense pressure requirements of heavy-duty hydraulic and pneumatic circuits. Industrial automation systems rely on perfect fluid direction, and manifolds assembled on our platform deliver the structural strength necessary for continuous, fail-safe operation in heavy manufacturing facilities.
Safety is paramount in gas handling, and our equipment is perfectly suited for fabricating secure multi-port pipe fitting machinery components. The precision assembly ensures zero-leakage tolerances necessary for safe, reliable gas distribution manifolds and instrumentation arrays. Building gas flow infrastructure requires the highest level of joint integrity, which our synchronized inline laser welding consistently achieves without compromising the base material.
We turn your specific requirements into reality by offering flexible, smart manufacturing solutions tailored to your parts, volume, and budget. Our engineering team brings deep industry knowledge to ensure your equipment operates at peak efficiency from day one. We collaborate closely with your technical staff to understand your production goals, delivering a customized setup that seamlessly integrates into your existing workflow.
Every machine undergoes rigorous control and testing across our facility. We maintain high standards to guarantee that your production line delivers flawless performance, ensuring that every batch of parts you produce meets exact dimensional and functional criteria. This uncompromising approach to equipment validation guarantees that you receive robust, reliable machinery capable of sustaining high-volume output throughout its operational lifespan.
From initial consultation to installation and comprehensive training, we provide swift on-site solutions and technical support. Our dedicated service team works tirelessly to keep your production running smoothly, minimizing downtime and maximizing your return on investment. We build long-term partnerships with our clients, offering continuous optimization advice and fast troubleshooting to secure your competitive advantage in the global manufacturing landscape.
The system is optimized for metallic materials commonly used in industrial manifold manufacturing, ensuring strong laser welds and precise mechanical assembly.
Yes. The equipment features a modular structure that can be quickly adjusted to accommodate different configurations and future multi-port fitting developments.
Performing laser welding immediately after assembly eliminates the risk of parts shifting during transfer, creating a permanent, secure joint for leak-proof performance.
We offer comprehensive customer service, including full installation, operational training for your staff, and rapid on-site technical support to ensure continuous production.
