Selecting a manufacturing platform based solely on peak horsepower often leads to catastrophic inefficiencies on the shop floor. Buyers mistakenly equate massive horsepower with universal cutting ability, only to discover their new equipment struggling during critical jobs. A high-horsepower machine optimized for speed will undoubtedly stall during heavy roughing. Conversely, a high-torque setup will brutally inflate cycle times on light finishing work. The fundamental physical trade-off between spindle speed (RPM) and torque (cutting force) strictly defines the operational limits of your equipment. We provide a clear, evidence-based framework for evaluating spindle specifications in this article. You will learn exactly how to ensure your machine investment perfectly aligns with your specific materials, tooling, and production volume requirements. This guide empowers you to stop guessing and start matching technical capabilities to your actual operational reality.
High spindle speed prioritizes rapid material removal in softer materials (aluminum, plastics) and precision finishing, typically utilizing direct-drive spindles.
High torque is non-negotiable for hard metals (titanium, Inconel, steel alloys) and large-diameter tooling, often requiring gear-driven or high-torque belt architectures.
Machine architecture matters: A vertical machining center may offer flexibility, but a horizontal machining center often provides the necessary rigidity for high-torque applications.
Procurement evaluation must focus on the spindle's torque curve and continuous (S1) duty cycle ratings, rather than peak (S6) promotional horsepower claims.
Understanding spindle performance requires looking past the glossy marketing brochures. The physical relationship between speed and torque remains absolute. You cannot manipulate physics.
Torque and speed share an inverse relationship under a fixed power output. Power, measured in horsepower (HP) or kilowatts (kW), represents the total work capacity. It functions strictly as a product of torque multiplied by RPM. When spindle speed increases significantly, available torque must decrease proportionally to maintain the same power output. You need torque to push a heavy cutter through tough metal. You need speed to take rapid, light passes across soft surfaces. Expecting a single spindle design to excel at both extremes defies fundamental physics.
Smart buyers never purchase a CNC machining center without examining the spindle torque curve chart. This chart visually graphs exactly how much cutting force the machine delivers at any given RPM. You must identify the "base speed" on this graph. Base speed denotes the specific RPM where the motor achieves maximum torque before the curve tapers off. If your primary tooling requires 2,500 RPM, but the machine's base speed sits at 8,000 RPM, you will lack the cutting force necessary to complete the operation successfully.
Manufacturers often advertise peak horsepower ratings to sound impressive. You must learn to differentiate between duty cycles. The S1 rating designates continuous operation. A machine can sustain its S1 power level 24 hours a day without overheating. The S6 or S3 ratings represent intermittent or peak operation. A spindle might sustain S6 power for only thirty minutes before requiring a cool-down period. Always base your procurement models and tooling calculations on the S1 continuous rating. Ignoring this rule practically guarantees unexpected spindle burnout during long production runs.
Modern manufacturing often demands blazing speeds rather than brute force. Certain applications require spindles capable of spinning at astonishing rates.
High-speed machining (HSM) relies heavily on high RPM. Operators use HSM techniques for finishing operations, complex 3D profiling, and delicate micro-machining. These strategies involve taking very light radial depths of cut at extremely high feed rates. The spindle must rotate fast enough to keep up with the rapid axis movements.
Soft materials thrive under high-speed conditions. Aluminum, brass, composites, and plastics cut effortlessly when you apply high RPM. Fast spindle speeds prevent material from melting or galling onto the cutter. They also ensure superior surface finishes right off the machine.
Small diameter end mills absolutely require high RPM. Tooling manufacturers specify a recommended Surface Feet per Minute (SFM) for every cutter. A quarter-inch end mill must spin incredibly fast to achieve the same SFM as a three-inch face mill. If you run small tools too slowly, you cannot achieve optimal chip loads. The tool will rub against the material instead of slicing through it cleanly.
Machines built for speed typically utilize direct-drive or electro-spindles. These units frequently operate between 12,000 and 30,000+ RPM. They offer incredibly smooth rotation and minimal vibration. However, you must acknowledge the trade-off. Direct-drive spindles lack low-end grunt. They will stall or vibrate violently if you push them into deep cuts on hard steels.
Balance all toolholders precisely to prevent premature spindle bearing failure.
Use shrink-fit or high-precision collet chucks for maximum concentricity.
Ensure your machine controller processes look-ahead code quickly enough to prevent stuttering.
Certain jobs demand sheer rotational violence. When you face tough alloys, speed becomes secondary to unstoppable cutting force.
High torque proves mandatory for heavy roughing. You also need it for drilling large holes using spade drills. Rigid tapping of large threads demands immense low-end power to reverse the tap without stalling. Deep slotting operations equally require a spindle that refuses to bog down under heavy load.
Tough metals punish weak spindles. Tool steels, stainless steel, titanium, Inconel, and other high-temp aerospace alloys require substantial cutting force. These materials harden when machined improperly. You must take decisive, heavy chips to get underneath the work-hardened layer.

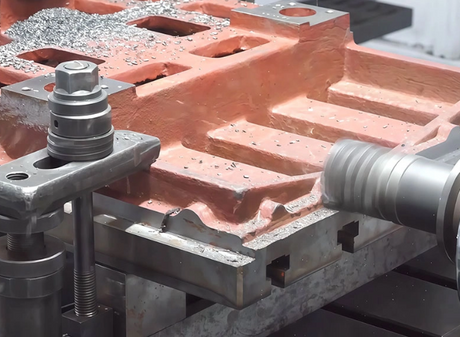

Large diameter indexable cutters and heavy face mills dictate torque requirements. These tools feature multiple cutting edges engaging the material simultaneously. They require massive rotational force at low RPMs. Operators often run these tools well under 4,000 RPM. Without adequate torque, you cannot maintain the required chip load, leading to shattered carbide inserts.
You need specific spindle architectures for heavy cutting. Gear-driven heads act like a truck transmission, multiplying torque at low speeds. High-torque winding spindle motors also provide the necessary low-end muscle. These configurations sacrifice top-end speed to deliver unstoppable low-end power.
Using a high-speed, low-torque spindle for heavy roughing invites disaster. The machine will experience severe tool deflection. You will hear destructive chatter echoing across the shop. Insert failure will happen prematurely and frequently. Ultimately, you risk causing catastrophic damage to the spindle bearings.
Drive Configuration | Typical RPM Range | Primary Advantage | Ideal Material Class |
|---|---|---|---|
Direct-Drive / Inline | 12,000 - 30,000+ | Minimal vibration, fast acceleration | Aluminum, Plastics, Brass |
Belt-Driven | 8,000 - 15,000 | Balanced general performance | Mild Steels, General Purpose |
Gear-Driven | 4,000 - 8,000 | Massive torque multiplication | Titanium, Inconel, Tool Steels |
The orientation of your spindle profoundly impacts how effectively you can utilize its torque and speed. You must choose a machine structure capable of supporting your cutting strategy.
A vertical machining center remains highly versatile and generally more cost-effective for everyday operations. Builders frequently equip them with higher RPM, direct-drive spindles. They excel at producing aluminum aerospace parts or executing complex 3D mold finishing. The spindle drops down from above, making setup highly intuitive for operators.
However, the VMC presents a significant physical limitation. Gravity constantly works against chip evacuation. When you carve deep pockets, chips pool at the bottom. If you attempt high-torque roughing, the cutter will constantly recut those trapped chips. This recutting destroys tools quickly and forces operators to dial back their cutting parameters.
A horizontal machining center inherently provides superior rigidity. The massive column mass and horizontal spindle orientation dampen vibrations exceptionally well. Builders design these machines specifically to handle immense cutting forces.
The HMC proves ideal for high-torque applications. Gravity actively aids chip evacuation. Chips fall freely away from the cutting zone. This natural clearing mechanism keeps large cutters engaged in fresh material without recutting old chips. You justify the selection of an HMC through drastically increased Material Removal Rates (MRR). The stable cutting environment also prolongs tool life significantly when machining hard metals.
Assuming a VMC can match HMC roughing speeds simply by upgrading the spindle motor. The casting rigidity will fail before the motor stalls.
Ignoring chip management. Trapped chips destroy cutters faster than any incorrect speed or feed setting.
Failing to align your spindle with your operational reality creates compounding daily penalties. These physical mismatches drain productivity directly on the shop floor.
Running hard materials on a high-speed machine forces severe compromises. Operators cannot take deep, aggressive cuts without stalling the spindle. They must program shallow, light passes instead. A job that should take twenty minutes suddenly takes an hour. This cycle time bloat ruins production schedules and dramatically inflates the operational cost of manufacturing each part.
Running small tools on a high-torque, low-speed machine creates equally damaging problems. You simply cannot spin the spindle fast enough to reach the required SFM. The cutting edges drag and rub against the material. This friction generates immense heat buildup. Rapid tool wear occurs almost immediately. You will find yourself constantly replacing expensive end mills because they burn up rather than cut cleanly.
Machines suffer when you push them outside their intended design parameters. Consistently forcing a direct-drive spindle to perform heavy roughing introduces harsh radial loads. The bearings take severe abuse. You will experience premature bearing failure. Spindle rebuilds cause agonizing machine downtime and require expensive emergency service calls. Buying the wrong spindle guarantees a frustrating maintenance cycle.
Protect your production efficiency by adopting a systematic evaluation process. Use this checklist before signing any purchase orders.
Audit Your Production Mix: Look closely at your actual workflow. Calculate the exact percentage of roughing versus finishing you perform. Quantify the ratio of soft materials to hard materials in your current and projected pipeline. Let data drive your decision.
Demand the Torque Chart: Never make a purchase based purely on a brochure's top-line horsepower claim. Insist the dealer provides the detailed torque curve chart. Overlay your most common cutting tool RPMs directly onto that curve. Verify the machine provides adequate cutting force exactly where you need it most.
Evaluate the Drive System: Dig into the mechanical architecture. Specify the exact spindle drive mechanism you intend to buy. Choose among belt-driven, inline direct-drive, geared heads, or motorized spindles based strictly on your primary material class.
Factor in Future-Proofing: Consider your business trajectory. If you plan on transitioning to harder aerospace alloys in the future, lean toward higher torque and structural rigidity now. It makes sense to sacrifice some top-end RPM today to guarantee you can cut tough materials tomorrow.
A successful equipment investment requires looking far beyond simple horsepower numbers. You must match the physical capabilities of the spindle to the daily operational reality of your shop floor. Prioritize high-speed, direct-drive architectures when your work demands rapid finishing and soft material removal. Conversely, demand heavy gear-driven torque when your schedule fills up with tough alloys and heavy roughing tools. You must meticulously evaluate torque curves and continuous duty ratings to avoid devastating production bottlenecks. Always prioritize continuous torque ratings and structural rigidity over peak horsepower claims when evaluating commercial equipment. Making the right architectural choice ensures your tools cut cleanly, your cycle times stay tight, and your machine runs reliably for years.
A: Yes, but only with specific High-Speed Machining (HSM) toolpaths taking very light radial depths of cut. You must maintain high feed rates to prevent heat buildup. However, it remains highly inefficient for bulk material removal or heavy roughing in steel.
A: Peak (S6) is the power the machine can sustain for a short burst (usually 30 minutes or less) before overheating. Continuous (S1) is the power it can sustain safely 24/7. Always base your primary tooling calculations on the continuous rating.
A: HMCs generally feature heavier, more rigid castings to support the spindle. They employ horizontal chip evacuation, preventing chip recutting. Gravity naturally pulls heavy chips away from the cutter during aggressive material removal operations.
A: A geared head acts exactly like a transmission in a heavy-duty truck. It significantly reduces the top available spindle speed but heavily multiplies the torque available at low RPMs. This makes it ideal for large face mills and tough alloys.
