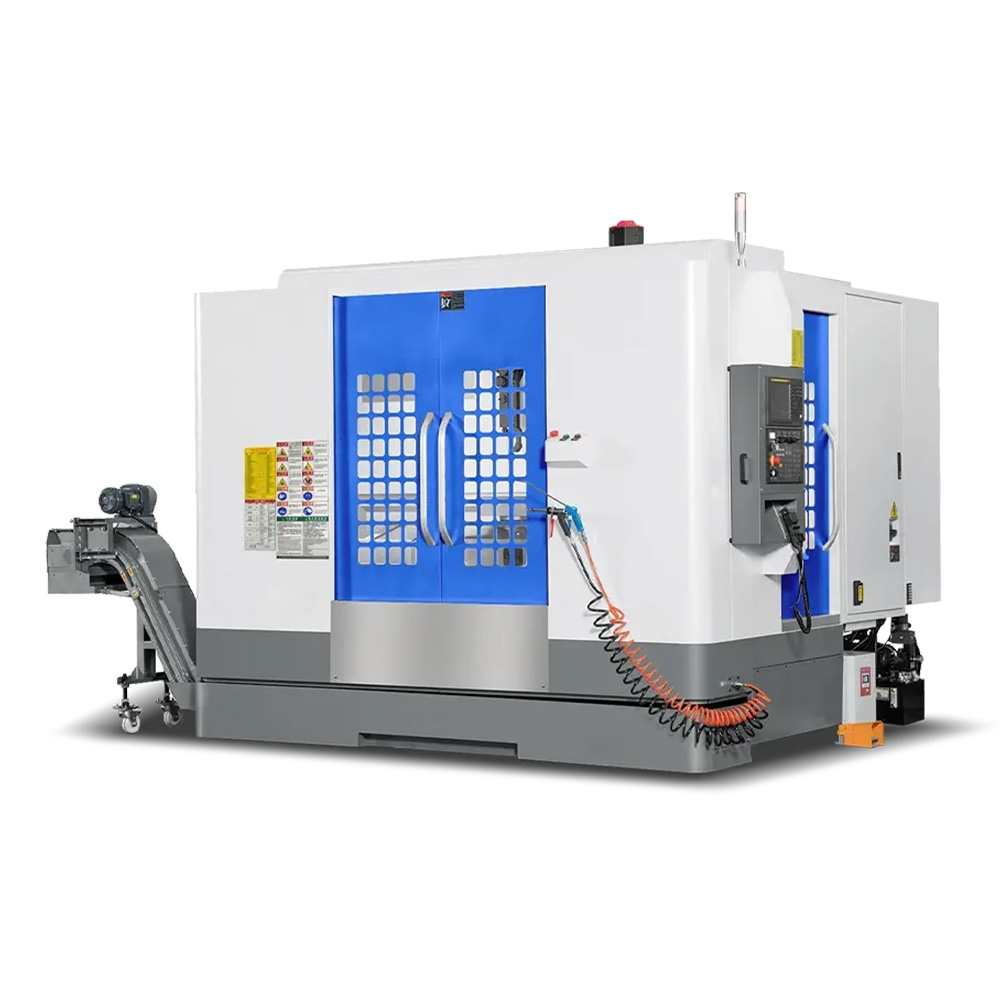

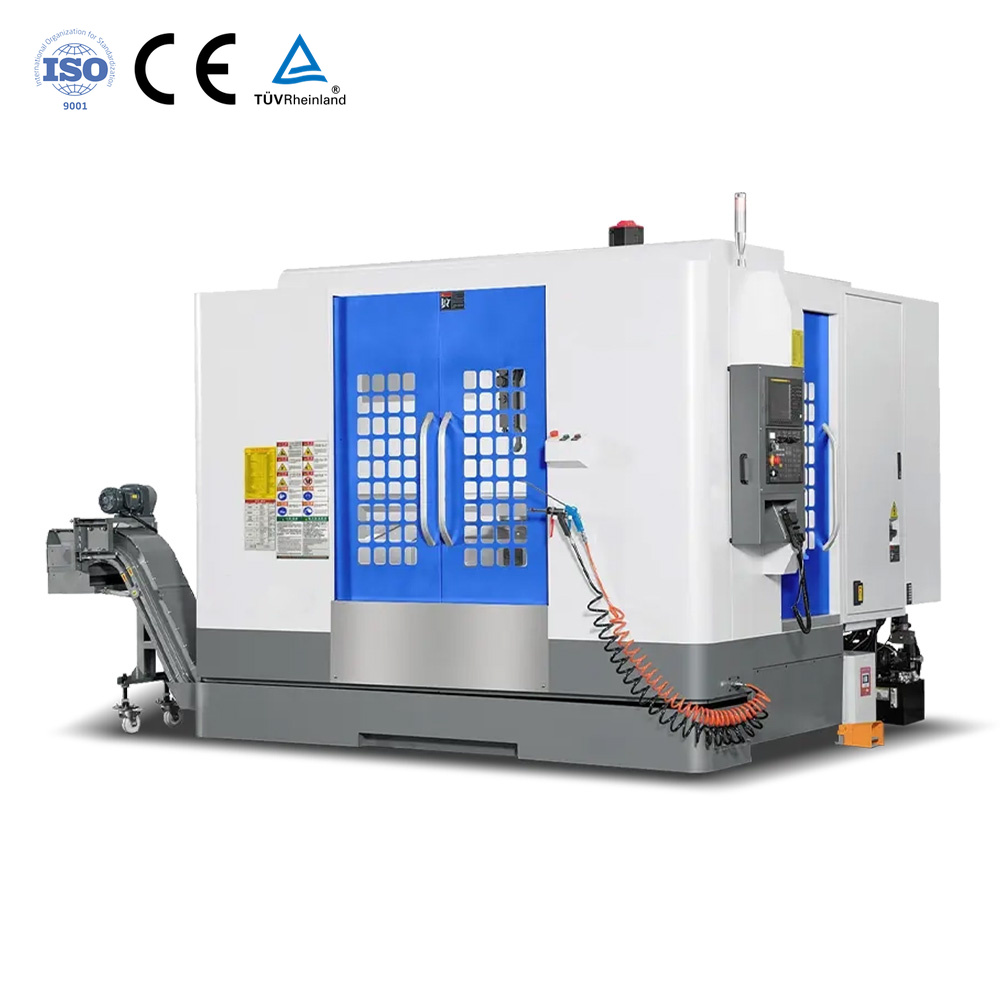

Horizontal Machining Center For Heavy-Duty and Multi-Sided Precision Machining
Availability:
The horizontal machining center is a high-precision, high-efficiency machine tool that can be used to process precision parts. It is widely used in aviation, aerospace, automobiles, electronics, energy and other fields. Horizontal machining centers have a larger machining space. Compared with vertical machining centers, horizontal machining centers are known for their versatility and can perform various machining operations on different sides of the workpiece, including milling, drilling and tapping without repositioning. This design is particularly advantageous for certain types of machining tasks and is commonly used in manufacturing and precision engineering.
Product Description
Download
Engineered for Complex Geometry and High-Precision Performance
This horizontal machining center is designed for complex parts, especially box-type components and multi-face machining.
With a rigid structure, powerful spindle, and precision rotary table, it ensures high efficiency, accuracy, and stability in demanding applications.
Technical Specifications
Specifications
HMC80H (Light Z-axis Boxway)
HMC80H (Opt Gearbox)
HMC100H
HMC100H (Gearbox)
X/Y/Z axis travel
1100/900/920
1300/9000/1000
1600/1000/1000
1600/1000/1000
Distance from spindle nose to worktable
200 ~ 1120
200 ~ 1200
200 ~ 1200
200 ~ 1200
Distance from spindle center to worktable
70 ~ 970
80 ~ 1080
120 ~ 1120
0 ~ 1000
Reduction ratio
1:240
1:200
1:200
1:200
Worktable size (L*W)
800×800
800×800
1000×1000
1000×1000
Max. load
1500
2500
2500
2500
Worktable indexing
1°/0.001°
1°/0.001°
1°/0.001°
1°/0.001°
T slot (number-width-pitch)
5-22-125
5-22-160
5-22-160
5-22-160
Spindle taper (model / mounting size)
BT50-190
BT50-190
BT50-190
BT50-190
Spindle speed
6000
6000
6000
6000
X/Y/Z axis rapid feed
24/24/20
20/20/20
20/20/20
20/20/20
Max. cutting feed
10000
10000
10000
10000
Exchanger type
Arm
Arm
Arm
Arm
Tool holder
BT50
BT50
BT50
BT50
Magazine tool capacity
BT50-30/40 disc (Disc)BT50-60 chain (Chain)
BT50-30/40 disc (Disc)BT50-60 chain (Chain)
BT50-30/40 disc (Disc)BT50-60 chain (Chain)
BT50-30/40 disc (Disc)BT50-60 chain (Chain)
Max. tool weight
18
18
18
18
Fastest tool change time (T-T)
5
5
5
5
Motor power
15/18.5
15/18.5
15/18.5
15/18.5
X/Y/Z positioning accuracy
±0.006
±0.006
±0.006
±0.006
The 4th-axis segmentation
±5
±5
±5
±5
Repeatable positioning accuracy
±0.004
±0.004
±0.004
±0.004
The 4th-axis positioning
±1
±1
±1
±1
Main motor
IP30/8000rpm
IP30/8000rpm
IP30/8000rpm
IP30/8000rpm
X-axis motor
30/2000rpm
30/2000rpm
30/2000rpm
30/2000rpm
Y-axis motor
30B/2000rpm
30B/2000rpm
30B/2000rpm
30B/2000rpm
Z-axis motor
40/2000rpm
40/2000rpm
40/2000rpm
40/2000rpm
The 4th-axis
12/2000rpm
12/2000rpm
12/2000rpm
12/2000rpm
X/Y/Z axis
40/40/50
50/50/50
50/50/50
50/50/50
X/Y/Z axis (Roller)
45/45/55
55/55/55
55/55/55
55/55/55
Completed machine
1500
2000
2000
2000
LWH
3850×3550×3200
4850×6880×4280×4100
4850×6880×4280×4100
4850×6880×4280×4100
Weight
13
16.5
17.3
17.3

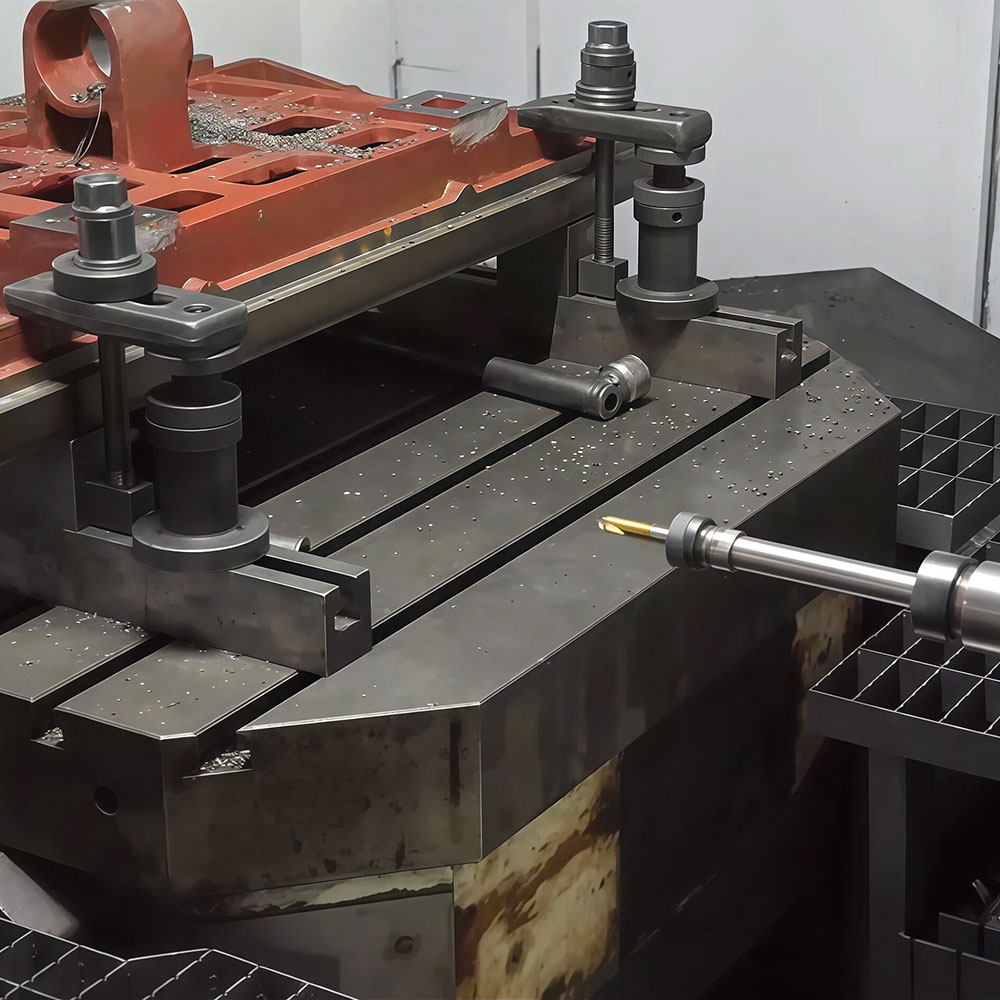

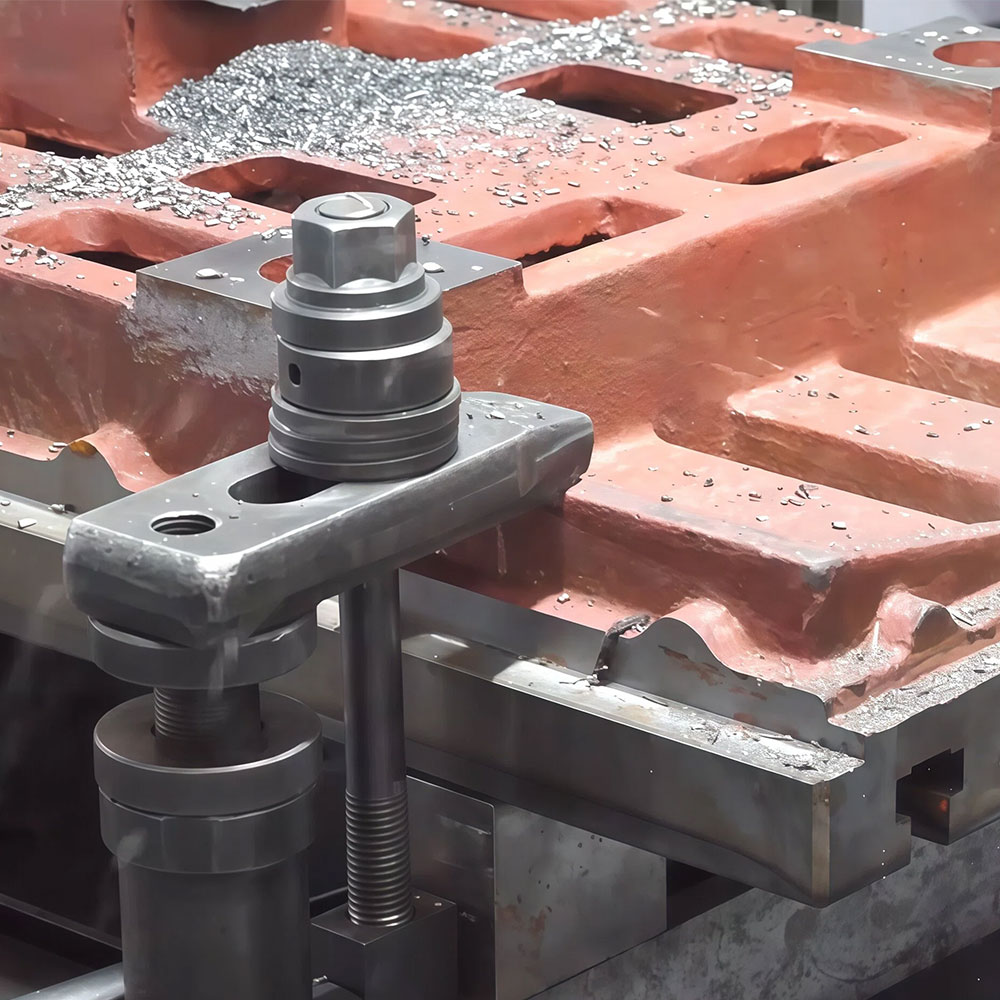

Precision Indexing for Efficient Multi-Face Machining
Equipped with a high-precision rotary worktable:
Indexing accuracy: 1°
Positioning resolution: 0.001°
This enables accurate multi-face machining in a single setup, reducing repositioning time and improving overall efficiency.

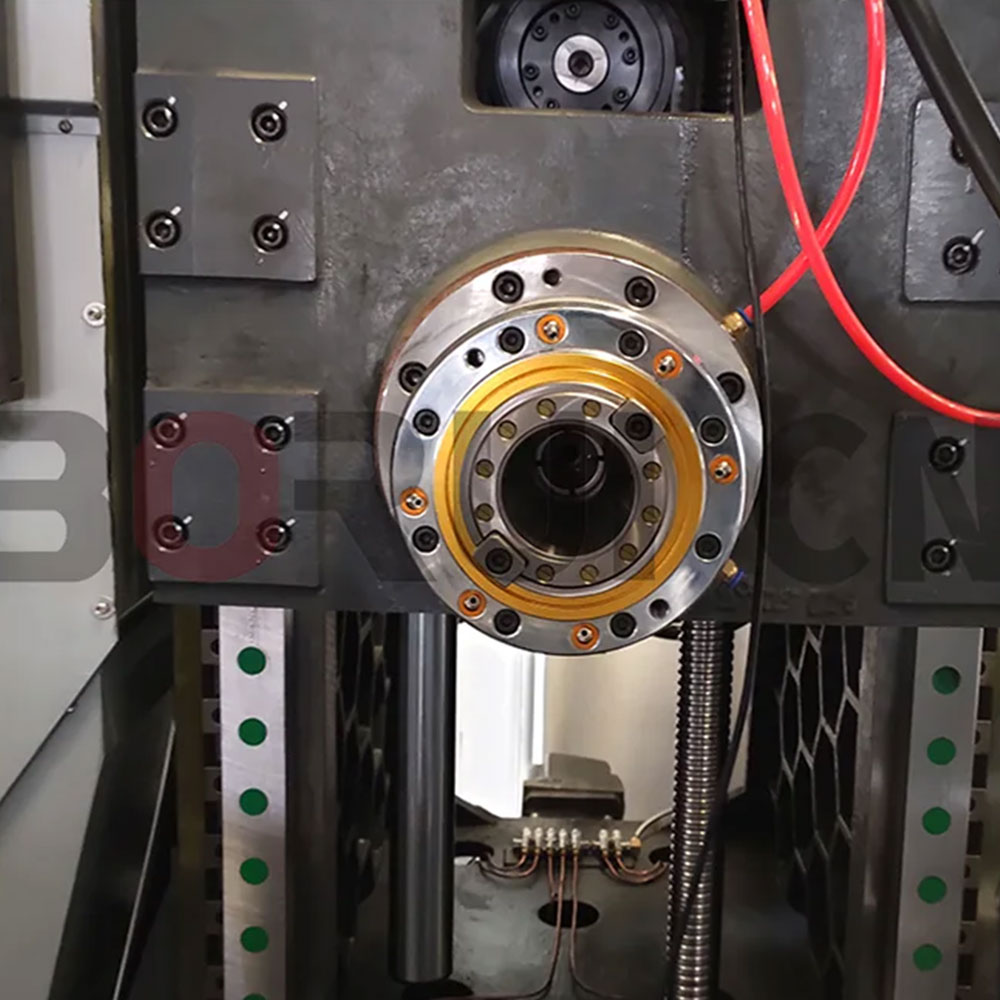

Power-Driven Spindle for Heavy Cutting and Finishing
The BT50 spindle reaches speeds up to 6000 rpm, suitable for both roughing and finishing.
Gearbox-driven options provide higher torque, ensuring stable performance when machining hard materials and large parts.
Intelligent Tool Management for Continuous Operation
The machine features an automatic tool changer with fast switching time of approximately 5 seconds.
Tool magazine options:
Disc type: 30–40 tools
Chain type: up to 60 tools
This ensures uninterrupted machining and improved productivity.

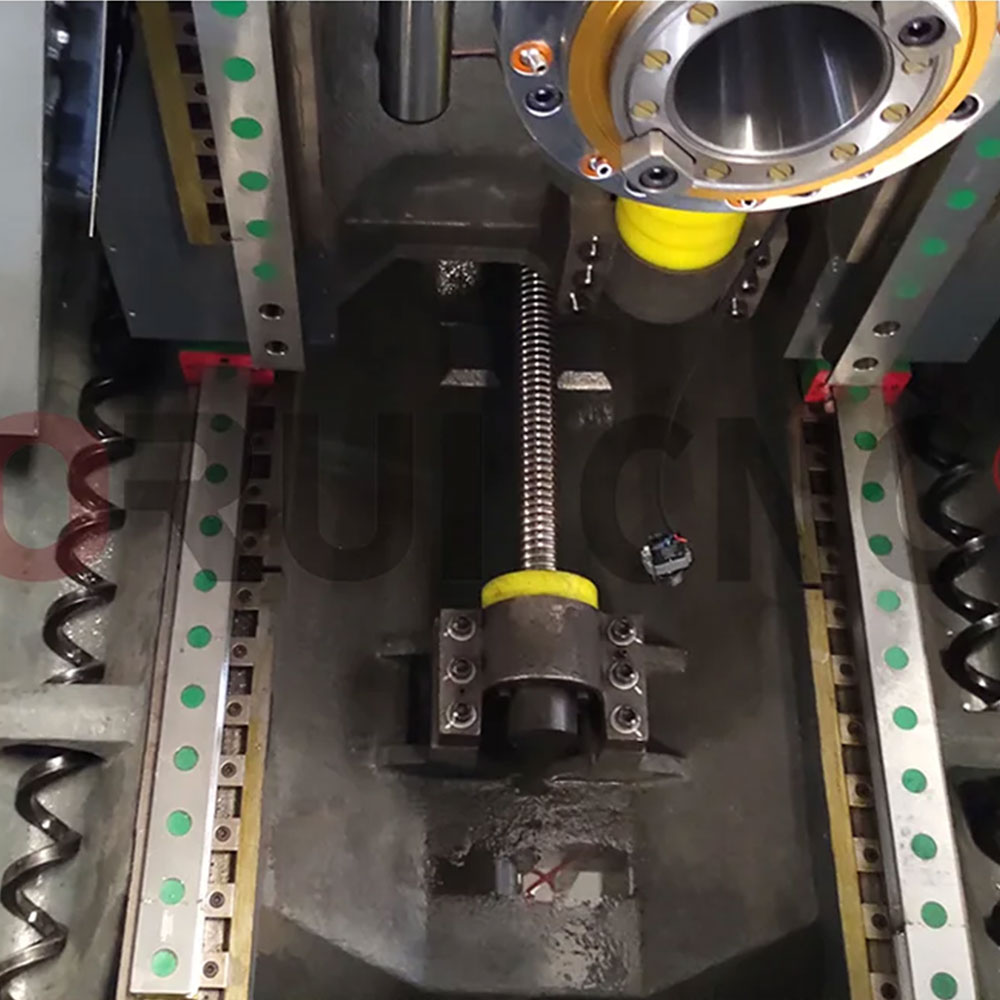

High-Speed Motion with Consistent Precision
Specification
Value
Rapid feed
24 m/min
Cutting feed
up to 10,000 mm/min
Positioning accuracy
±0.006 mm
Repeat accuracy
±0.004 mm
The servo-driven system ensures smooth motion and reliable machining results.
Single Setup, Multi-Sided Machining Capability
The integrated fourth axis allows multiple surfaces to be machined in one setup.
This reduces fixture changes, minimizes manual intervention, and improves both accuracy and efficiency.

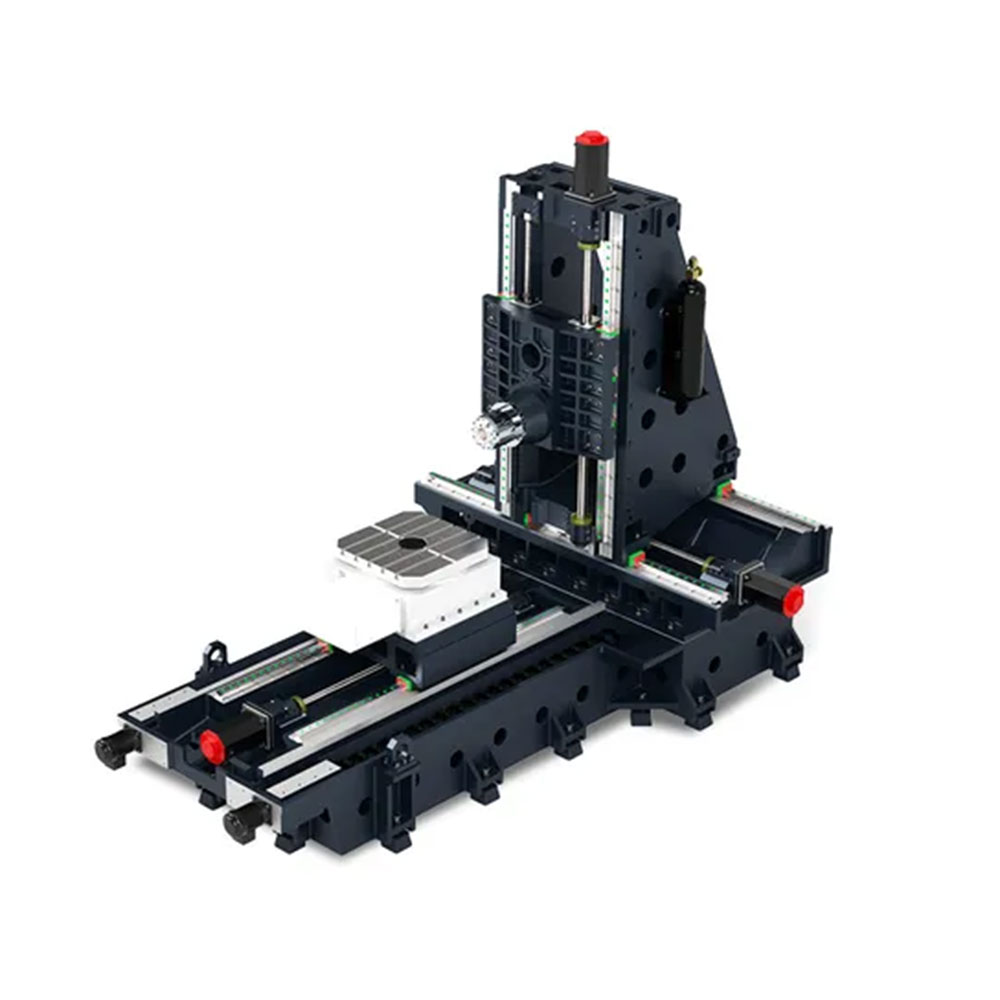

Rigid Structure for Long-Term Stability
A heavy-duty base and reinforced column design provide excellent rigidity and vibration resistance.
Machine weight ranges from 13 to over 17 tons, ensuring stable performance under continuous heavy-duty operation.
Driving Efficiency, Accuracy, and Production Value
With its powerful spindle, precision indexing, and flexible configurations, this horizontal machining center improves productivity, reduces setup time, and ensures consistent machining quality.
Product Video
Watch our Horizontal Machining Center For Heavy-Duty and Multi-Sided Precision Machining in action.
