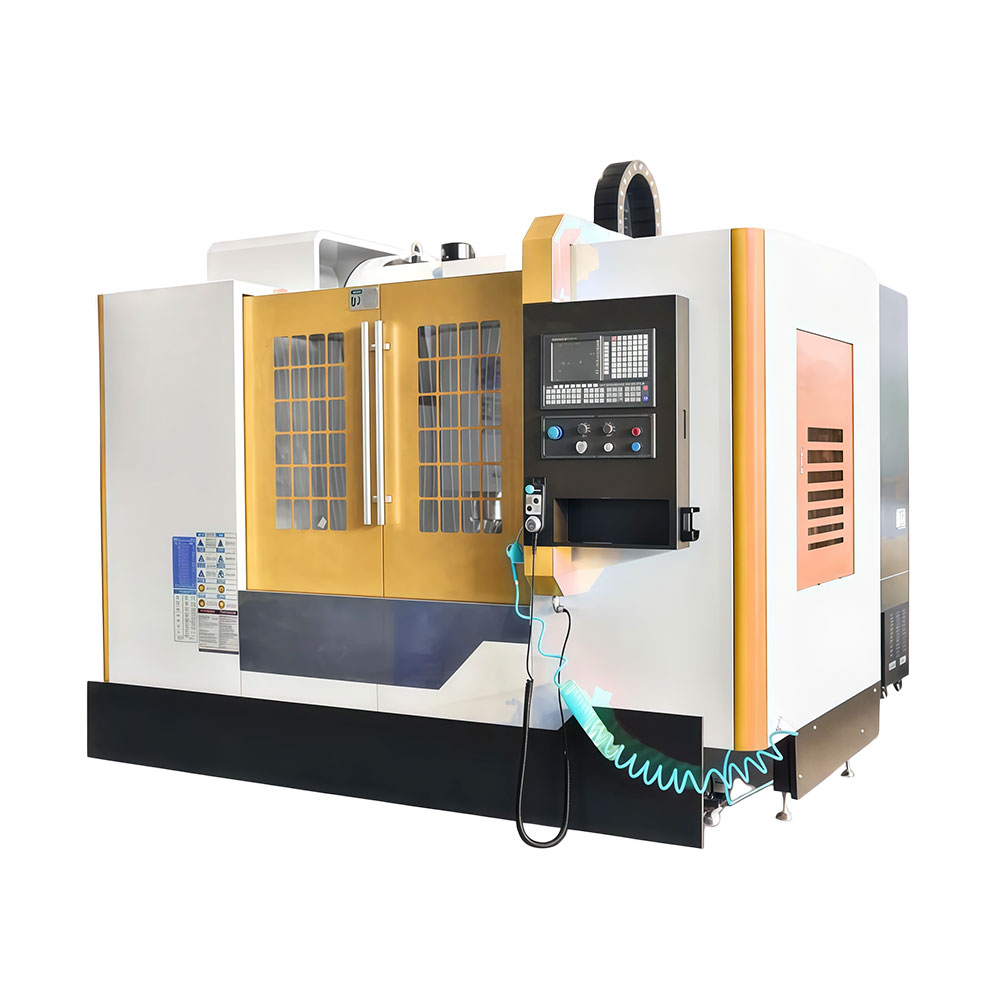

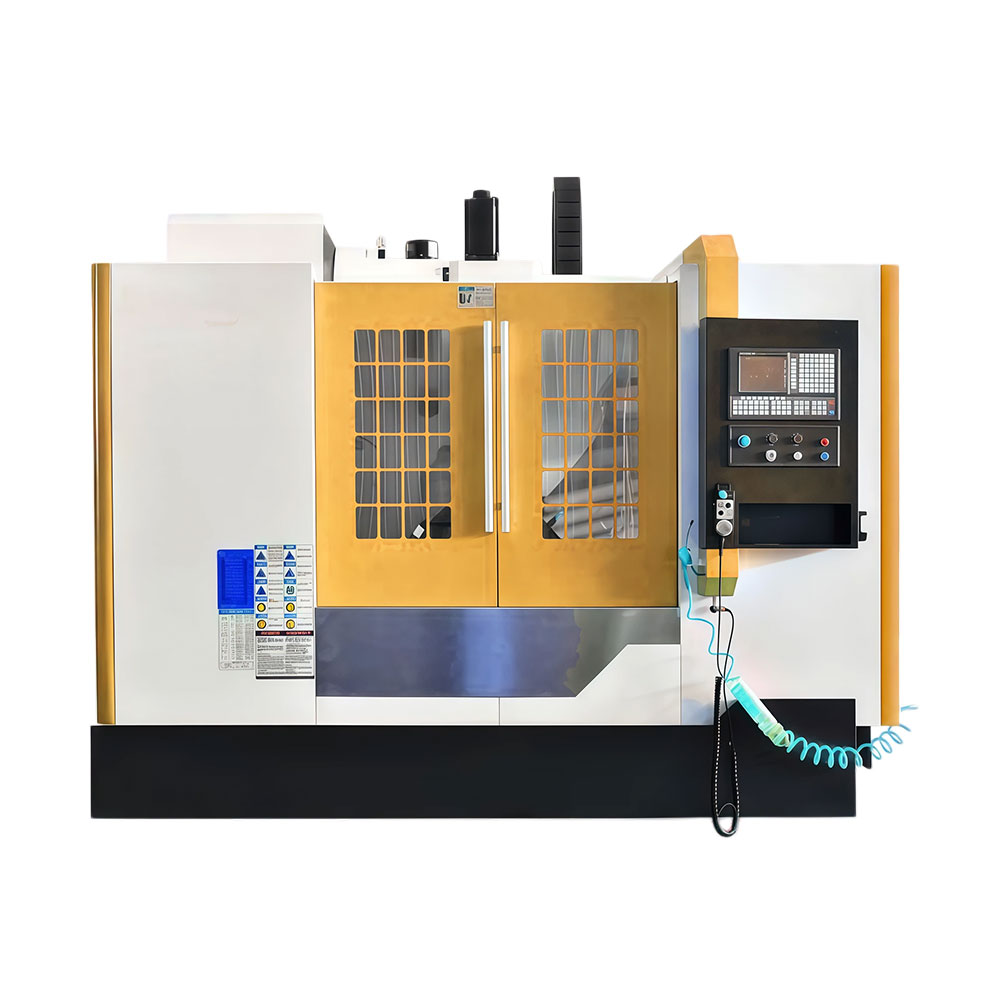

Vertical Machining Center For Precision and High-Efficiency Manufacturing

Availability:



This VMC is suitable for mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring, etc.

Product Description

Download

Designed for Versatile Precision Machining Across Industries

This vertical machining center is built for milling, drilling, tapping, and complex part machining.

With a rigid structure, stable spindle, and flexible configurations, it delivers reliable performance across a wide range of industrial applications.

Technical Specifications

Specifications	Units	VMC650	VMC650P	VMC850	VMC855
X/Y/Z axis travel	mm	650/400/500	600/500/500	800/500/500	800/550/550
The distance from spindle center to worktable surface	mm	120-620	120-620	140-640	120-670
Spindle center to Column surface	mm	550	550	550	550
T-slot	mm	31890	31890	318100	518100
Table size	mm	800*400	800*500	1000*500	1000*550
Max. table load	kg	400	400	500	500
Spindle speed (Belt)	rpm	8000	8000	8000	8000
Main motor	kw	5.5	5.5	7.5	7.5
Spindle taper	-	BT40(φ120)	BT40(φ120)	BT40(φ150)	BT40(φ150)
X/Y/Z axis rapid feed	m/min	24/24/24	24/24/24	24/24/24	24/24/24
Cutting feed speed	mm/min	1-10000	1-10000	1-10000	1-10000
Three axis Servo motor	kw	223	223	223	223
Magazine tool capacity	pcs	16 (standard umbrella type, optional 24dis type)	16 (standard umbrella type, optional 24dis type)	24 (dis type)	24 (dis type)
Positioning accuracy	mm	±0.005	±0.005	±0.005	±0.005
Repeat Positioning accuracy	mm	±0.003	±0.003	±0.003	±0.003
Overall dimension	mm	240020002550	240020002550	255022002530	257022802800
Machine weight	kg	3600	4000	5000	5200

Rigid Structure Ensuring Stability and Long-Term Accuracy

The machine adopts a classic vertical structure with optimized mechanical design.

Precision linear guideways and a stable column ensure high rigidity, reduced vibration, and consistent machining accuracy during high-speed operations.

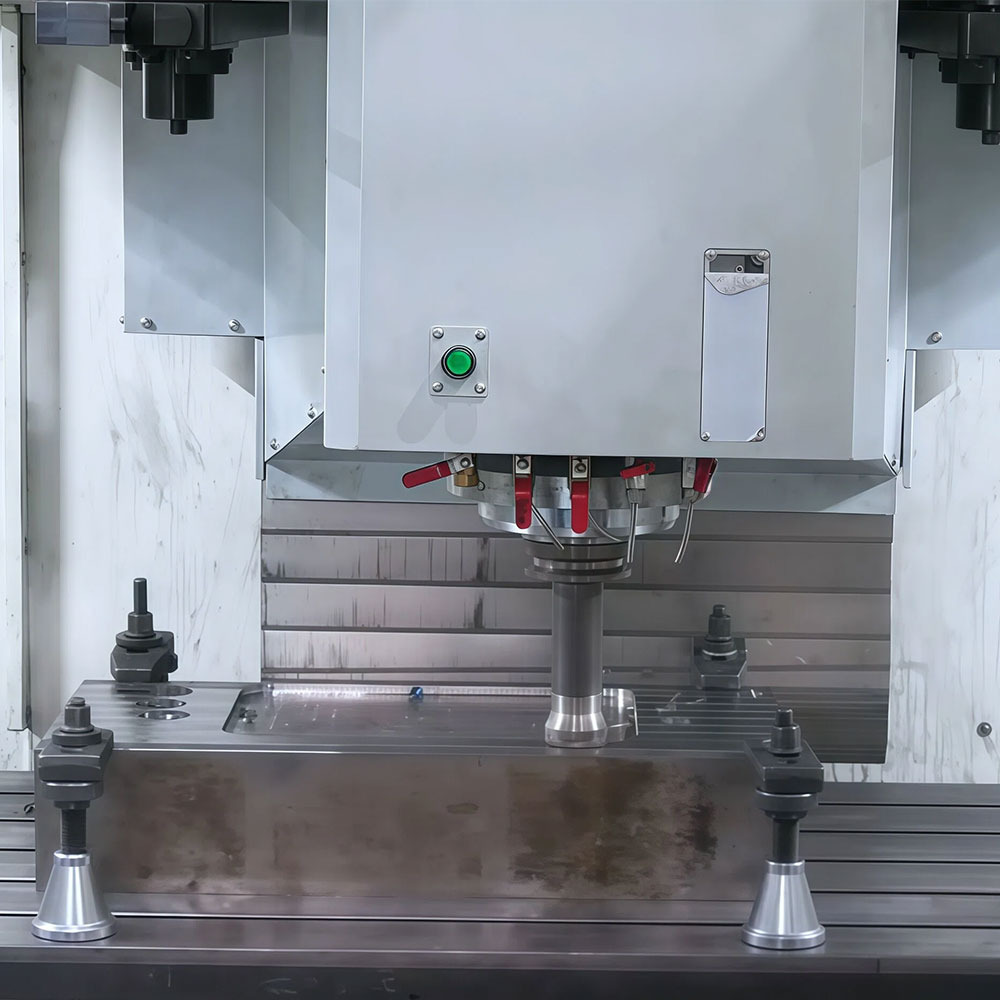

Reliable Spindle Performance for Consistent Cutting Power

Equipped with a BT40 spindle, reaching speeds up to 8000 rpm.

The belt-driven design provides stable performance and strong cutting capability across different materials and machining conditions.

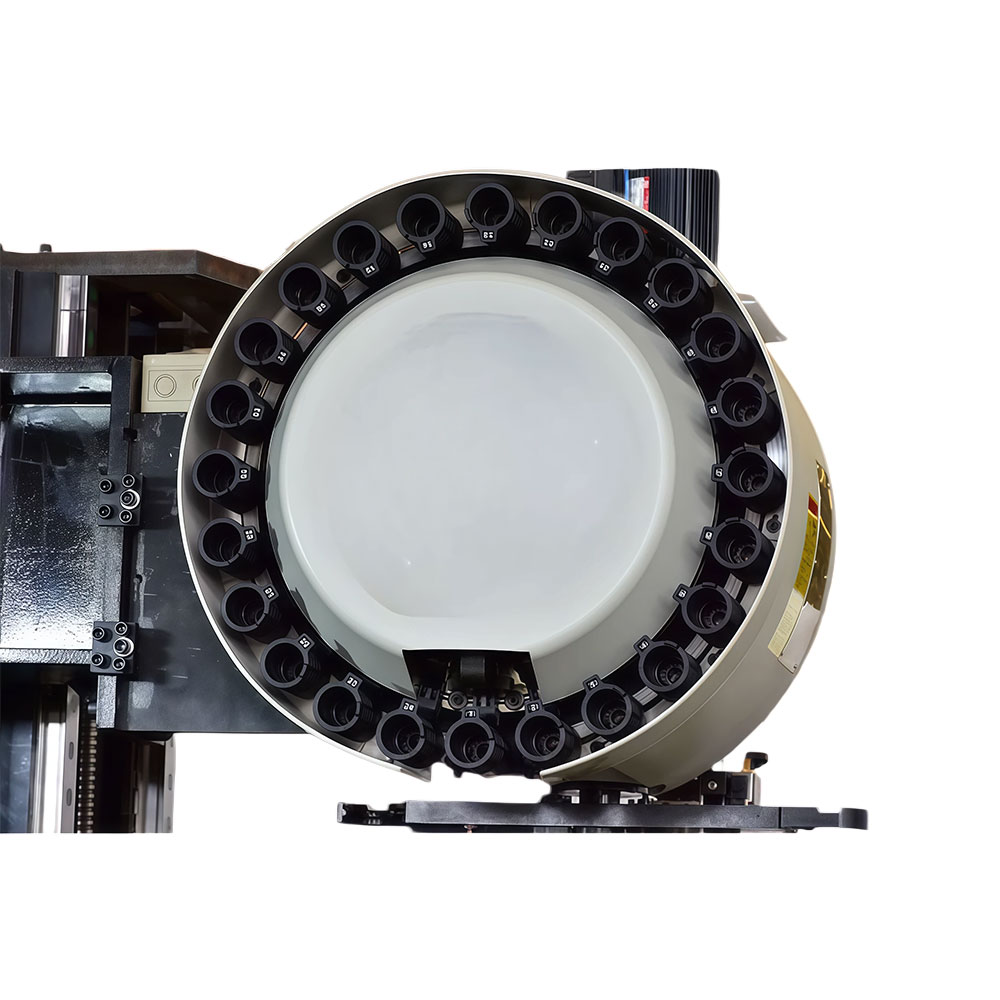

Efficient Tool Handling for Multi-Process Machining

Standard configuration includes a 16-tool umbrella-type magazine, with an optional 24-tool disc-type magazine.

This ensures efficient tool management and reduces downtime during multi-step machining operations.

High-Speed Motion with Precision Control

Specification	Value
Rapid feed	24 m/min
Cutting feed	up to 10,000 mm/min
Positioning accuracy	±0.005 mm
Repeat accuracy	±0.003 mm

Servo-driven axes ensure smooth motion, high responsiveness, and consistent machining results.

Compact Yet Robust for Stable Operation

Machine weight ranges from 3600 kg to 5200 kg, providing a solid structure for stable machining.

The compact design allows efficient use of workshop space while maintaining performance.

Enhancing Productivity with Reliable and Flexible Solutions

With multiple configurations and stable performance, this vertical machining center improves machining efficiency and ensures consistent product quality.

It is a practical and reliable solution for modern CNC manufacturing.
