| QINGDAO C AND C provides this premium CNC equipment engineered for maximum factory productivity. Designed for modern manufacturing setups, our enterprise-grade machinery offers robust performance for custom and wholesale production needs. Sourced directly from our advanced facilities, this lathe ensures reliable precision for your continuous machining operations. | |||||||||
|
| |||||||||

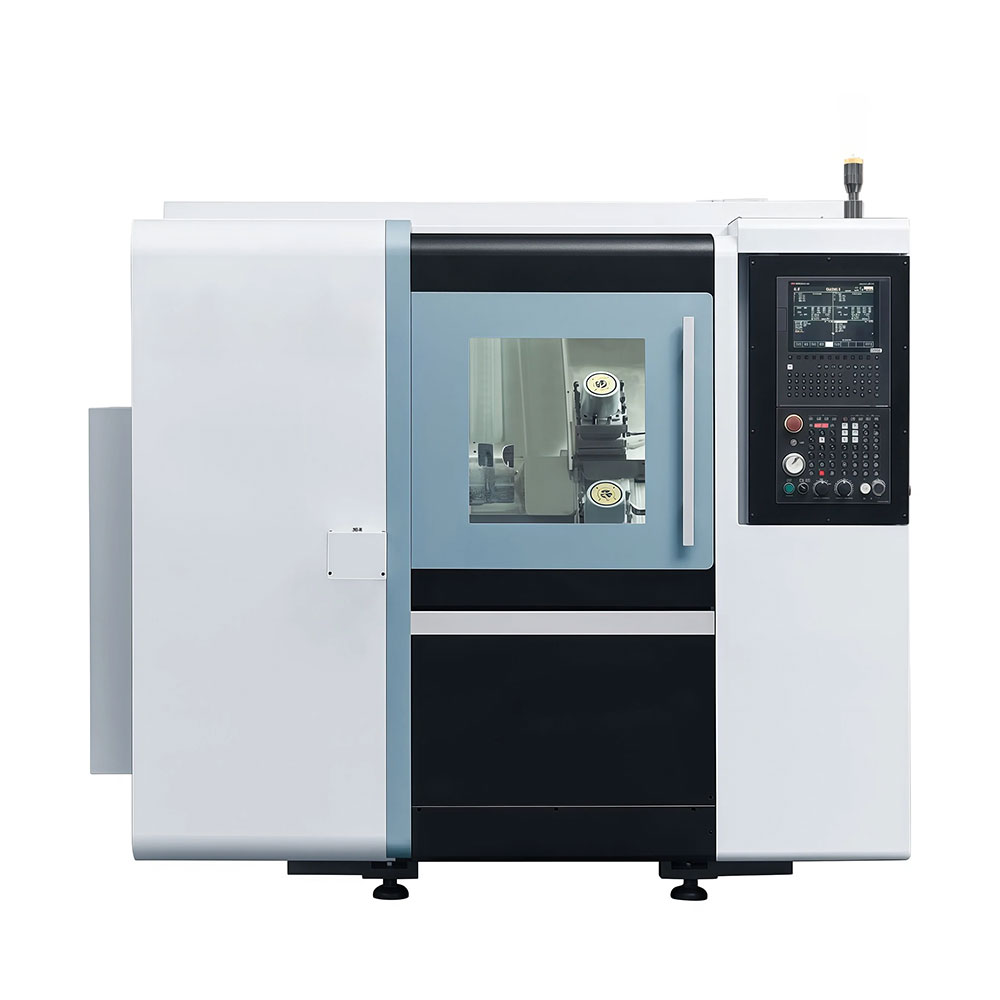

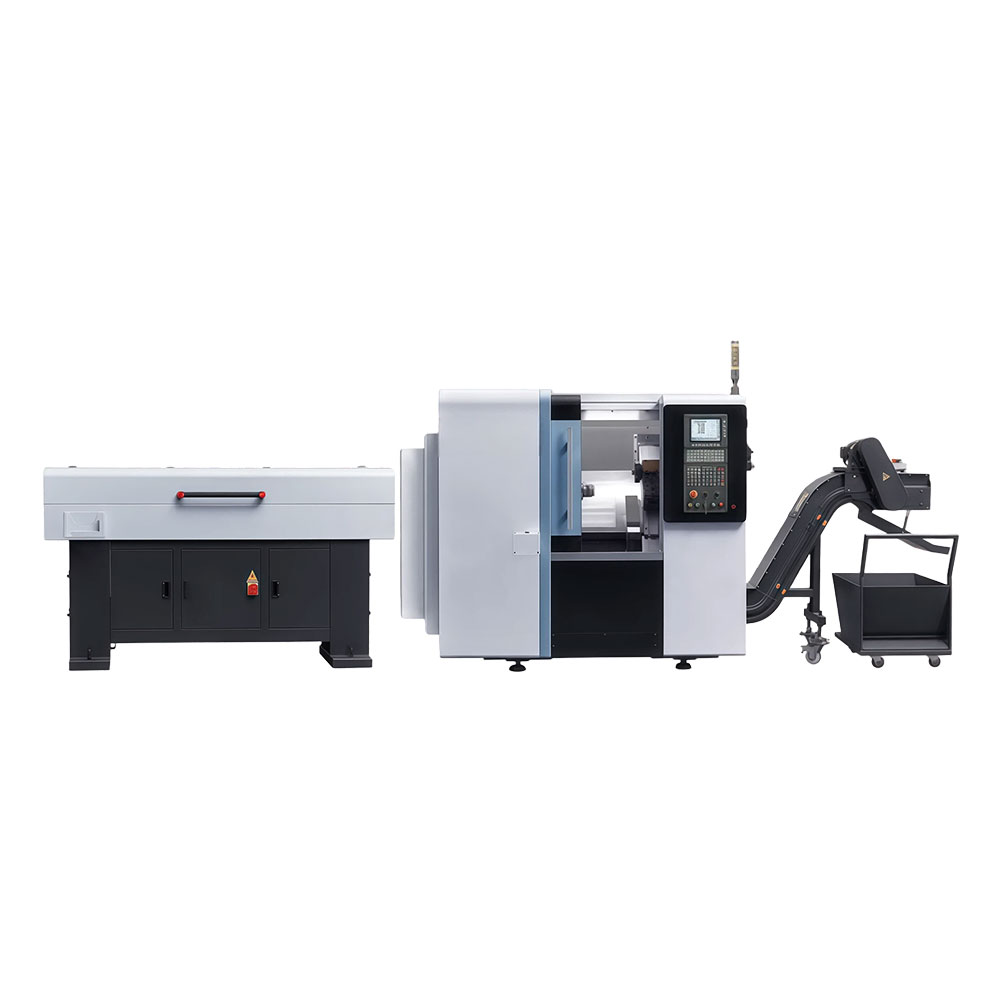

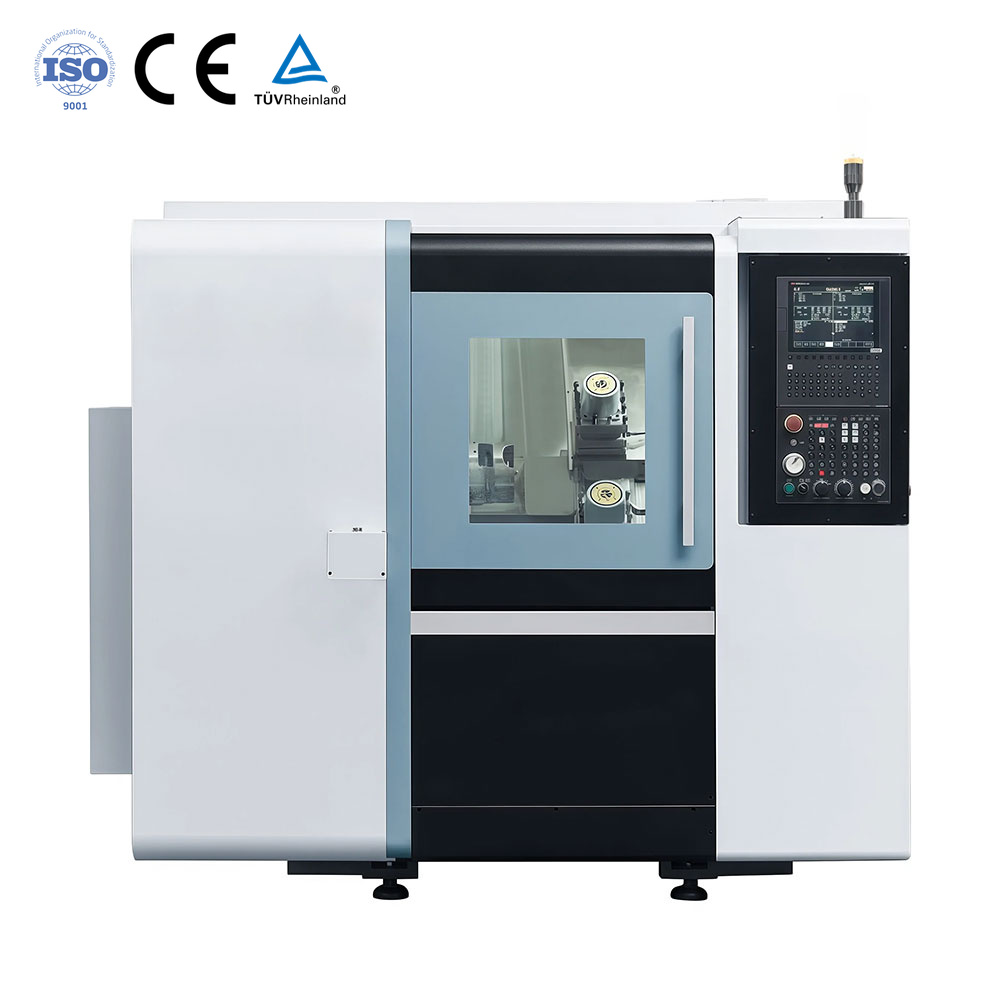

Designed for modern manufacturing environments, our Slant Bed Linear Guide CNC Lathe combines a 45-degree slant bed structure with high-precision linear guideways to deliver exceptional machining accuracy and production efficiency. This robust turning equipment represents the perfect balance of precision, rigidity, and high-speed performance. It easily handles shaft parts, disc components, and complex precision workpieces. With a heavy-duty 5.5kW main motor and advanced thermal stability, our equipment effortlessly supports continuous, high-volume production operations for industrial facilities.
Feature | Slant Bed with Linear Guides | Traditional Flat Bed (Hard Rail) |
Chip removal | Gravity-assisted, excellent | Requires coolant flushing, can accumulate |
Rapid traverse speed | 20,000 mm/min | Typically 8,000-12,000 mm/min |
Positioning accuracy | ±0.005mm (X-axis) | ±0.01-0.02mm typical |
Thermal stability | Superior with pre-tensioned screws | Moderate |
Maintenance interval | Longer (linear guides) | Regular (hardened ways require scraping) |
Floor space | Compact (45° design) | Larger footprint |
Operator access | Excellent | Moderate |
Category | Content | Unit | Specification |
Spindle | Spindle front taper | - | 45° |
Spring collet | type | Φ56mm M48*1.5 | |
Spindle speed change form | type | Belt (stepless speed change) | |
Draw tube hole diameter | mm | Φ40 | |
Processing range | Max. rotation diameter of the bed | mm | Φ360 |
Max. rotation diameter of pallet | mm | Φ120 | |
Max. processing length | mm | 200 | |
Mechanical ability | Spindle maximum speed | rpm | 50–3000 |
X/Z axis rapid traverse speed | mm/min | 20000 | |
Mechanical precision | X-axis repeat positioning accuracy | mm | 0.005 |
Z-axis repeat positioning accuracy | mm | 0.01 | |
Axial travel | X-axis travel | mm | 760 |
Z-axis travel | mm | 350 | |
Motor Power | Main motor power | kW | 5.5 |
X-axis/Z-axis motor | nm | 130–6/6 | |
Other | Clamping method | type | Hydraulic, rotary cylinder 648 |
Power supply | type | 380V ±10%, 50Hz ±1%, three-phase AC | |
Ambient temperature | °C | 0~40 | |
Relative humidity | type | ≤92% | |
Weight | kg | ≈2400 | |
Overall dimensions (L×W×H) | mm | ≈2200 × 1800 × 1800 |
Our machine features a premium 45-degree slanted cast iron bed that effectively minimizes vibration during intensive heavy cutting processes. This intelligent structural design provides superior thermal stability through the integrated use of precision pre-tensioned screws. It allows the enterprise-grade CNC machinery to maintain strict dimensional tolerances over prolonged operational shifts, ensuring consistent output quality for your continuous factory operations.

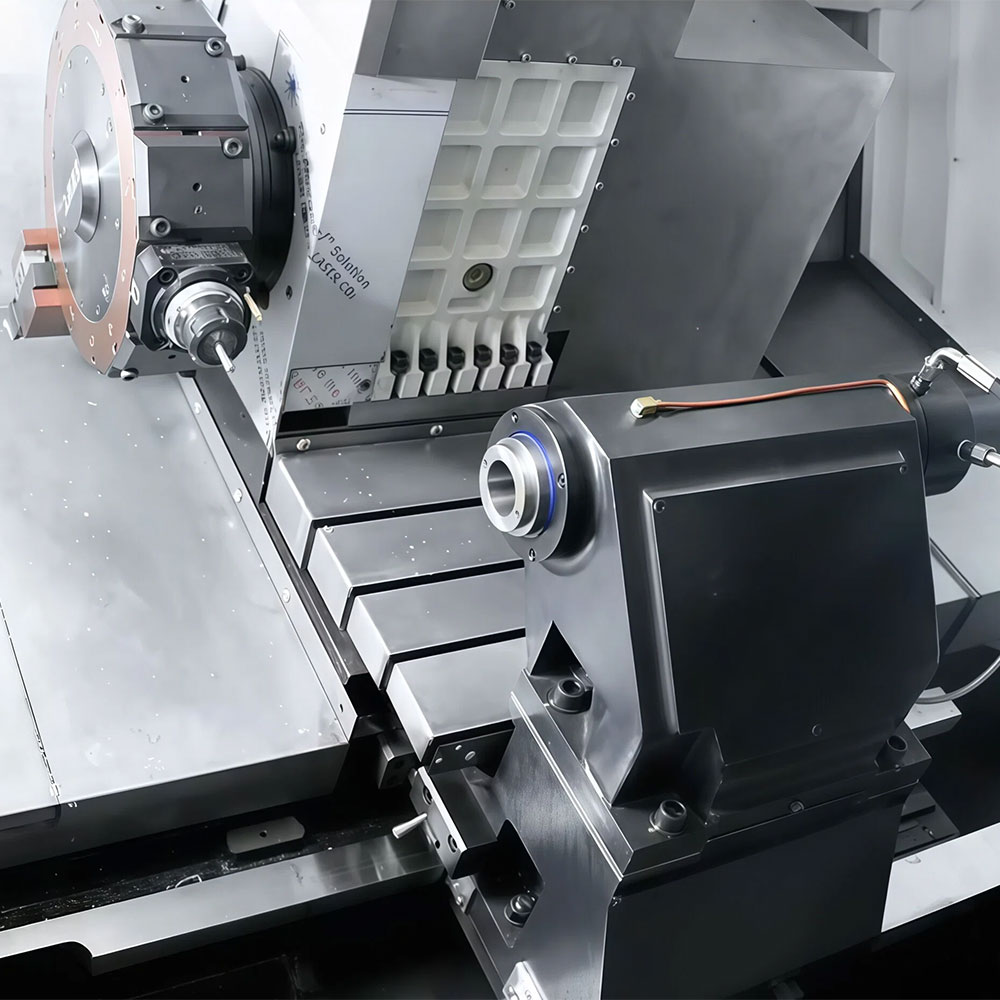

Equipped with state-of-the-art linear guides, our advanced equipment achieves an impressive X-axis and Z-axis rapid traverse speed of 20,000 mm/min. The internal X-axis repeat positioning accuracy consistently reaches a tight ±0.005mm. This extreme precision guarantees stringent quality control for your high-demand custom manufacturing orders without ever compromising the overall rapid cycle times of your automated production line.

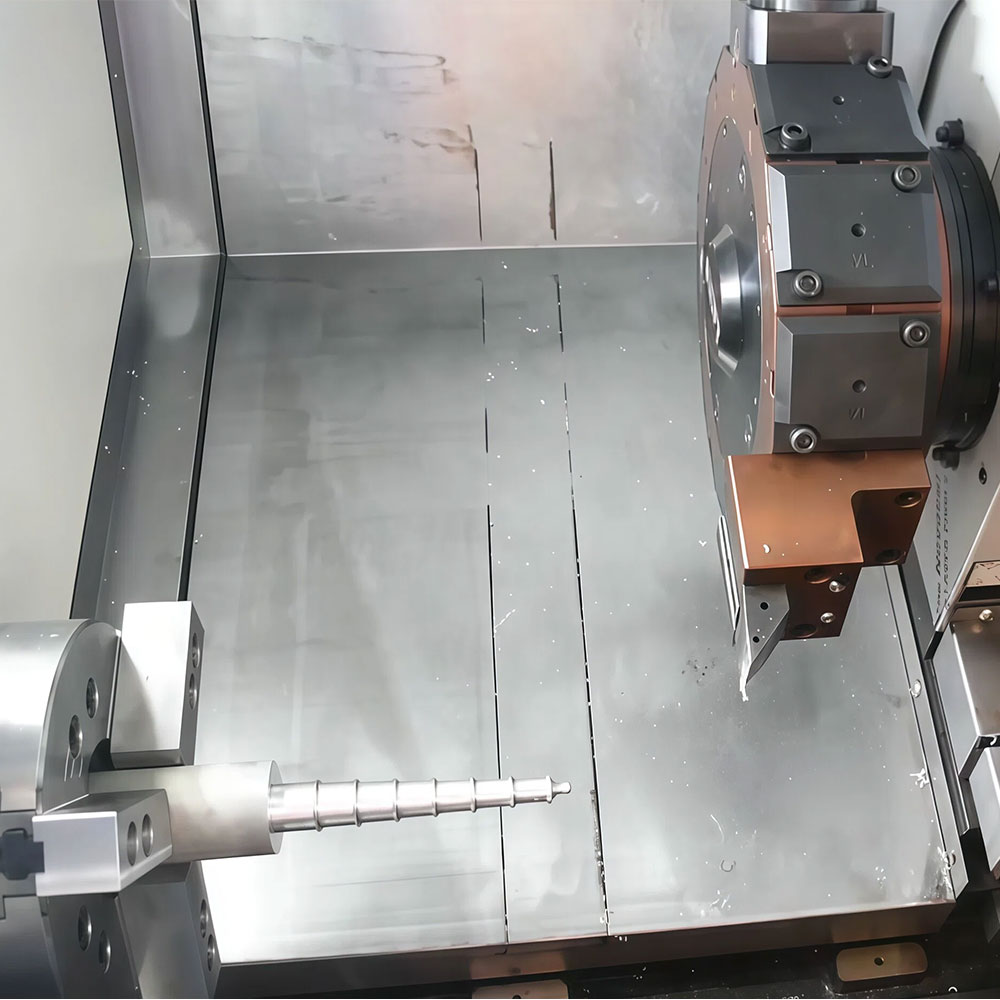

Our machine's inclined design provides natural, gravity-assisted chip removal, significantly outperforming traditional flat bed alternatives in daily operations. This crucial feature aggressively prevents coolant and metal debris accumulation inside the primary cutting zone. It effectively reduces necessary manual intervention and protects the internal components from premature wear, thereby ensuring uninterrupted and highly reliable automated production runs.
By seamlessly integrating our advanced CNC turning machine into your existing workflow, your facility can noticeably lower the overall total cost of ownership. The versatile combination of belt-driven stepless spindle speed changes ranging from 50 to 3000 rpm and extended linear guide lifespans maximizes both daily production output and long-term equipment longevity for your demanding wholesale manufacturing requirements.
Our equipment consistently excels in machining complex hydraulic valves and intricate pump housings for demanding sectors. The rigorous ±0.005mm structural accuracy ensures perfectly seamless fluid control component fits every single time. This exceptionally tight tolerance is absolutely vital for maintaining the strict operational safety and long-term performance of modern high-pressure industrial systems.
This powerful lathe remains highly ideal for fabricating intricate disc components and bespoke mechanical fasteners at commercial scale. The integrated stepless speed change capability and robust 5.5kW main spindle easily accommodate the diverse raw material hardness levels frequently required in general precision contracting and specialized custom metal part manufacturing operations.
The 200mm maximum processing length and impressive 20,000 mm/min rapid traverse make this specific machine perfectly suited for rapid heavy-duty precision lathe manufacturing. It significantly accelerates daily workflow throughput for demanding high-capacity supply chain requirements, ensuring you meet strict factory delivery deadlines consistently while maintaining strong, highly reliable client relationships.
Our core philosophy centers on precise control and seamless connectivity to elevate your intelligent manufacturing capabilities. We actively integrate deep technical expertise with extensive industry resources to deliver flexibly configured, highly cost-effective equipment. Our dedicated technical team consistently provides swift on-site support to ensure your automated production lines never face extended downtime. Partner with our facility for reliable, high-performance machinery that continuously grows alongside your expanding business.
Our machine easily handles carbon steel, stainless steel, aluminum, brass, and industrial plastics, offering excellent versatility for custom manufacturing.
Yes, the 45-degree configuration offers a highly compact footprint compared to traditional flat bed models, allowing facilities to maximize shop floor utilization.
Our lathe utilizes pre-tensioned screws and a high-quality cast iron structure to dissipate heat efficiently, ensuring structural stability during extended machining.
Yes, the equipment features a belt-driven stepless speed change system, allowing operators to seamlessly adjust the spindle speed between 50 and 3000 rpm.
