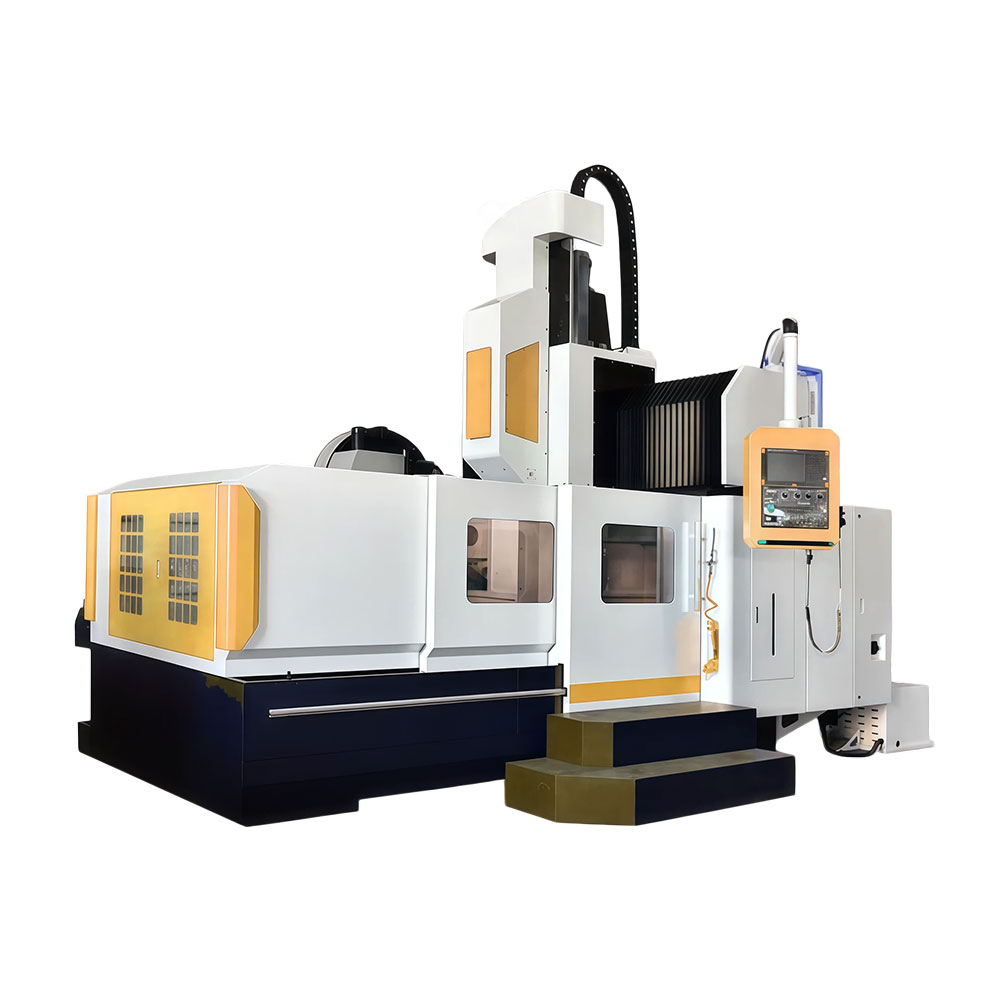

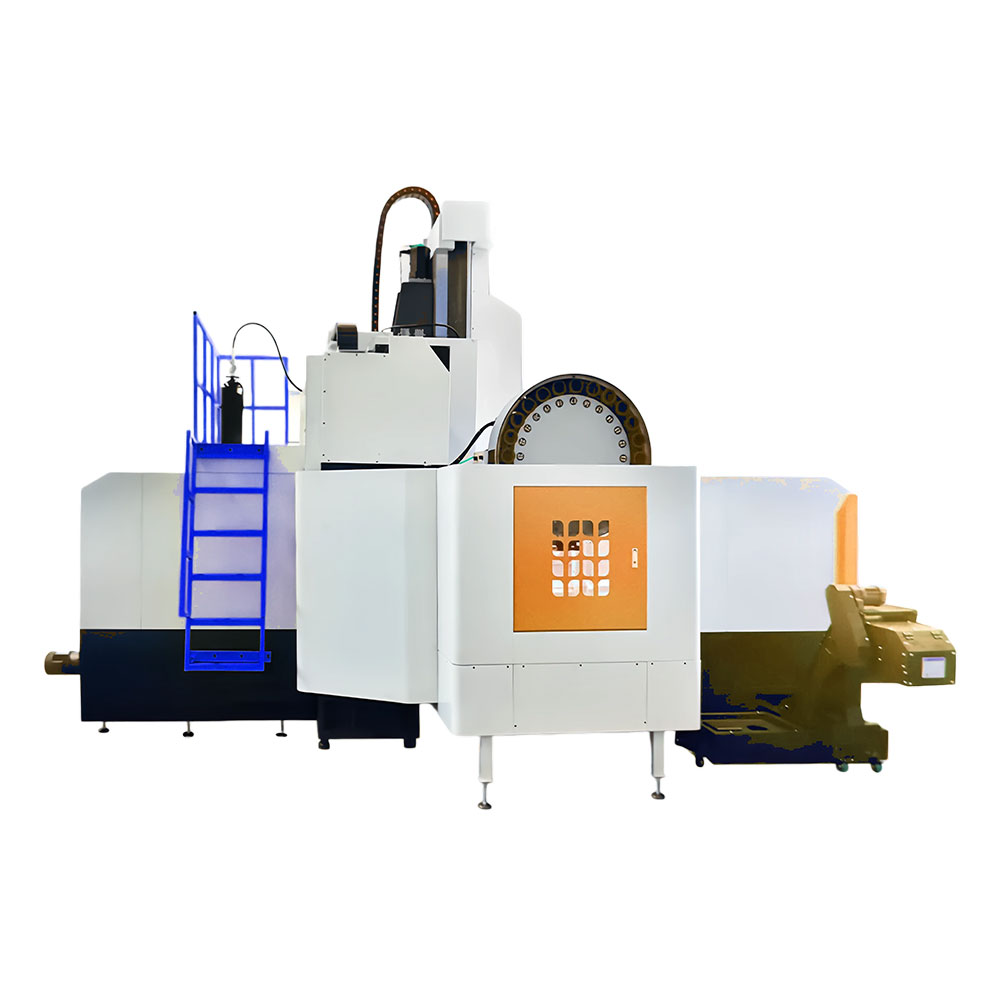

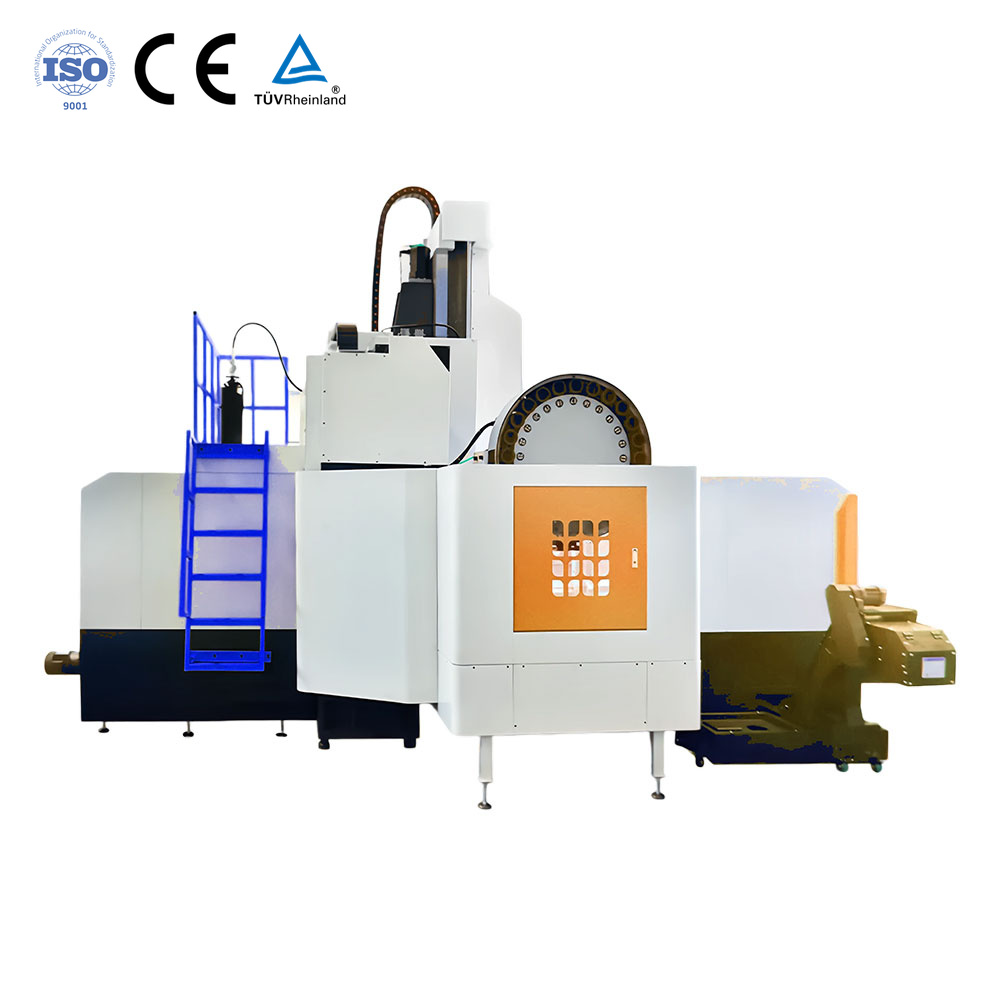

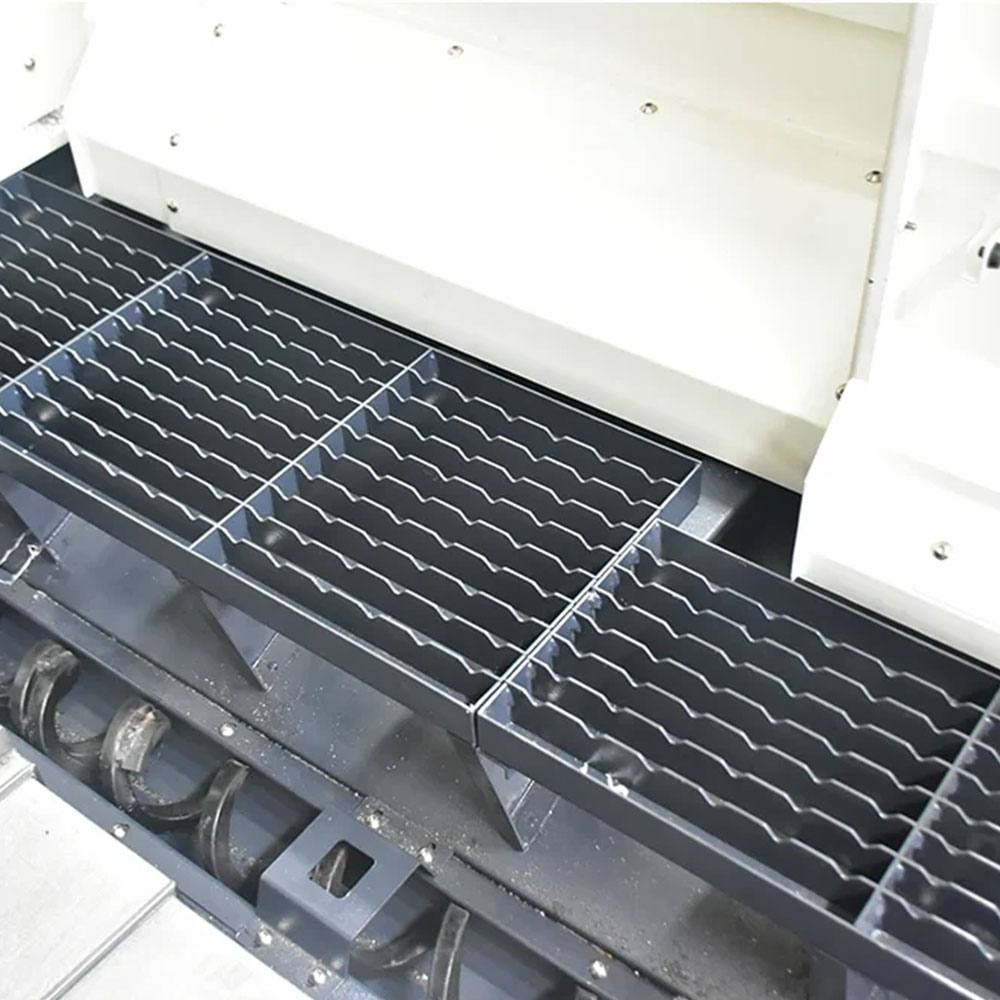

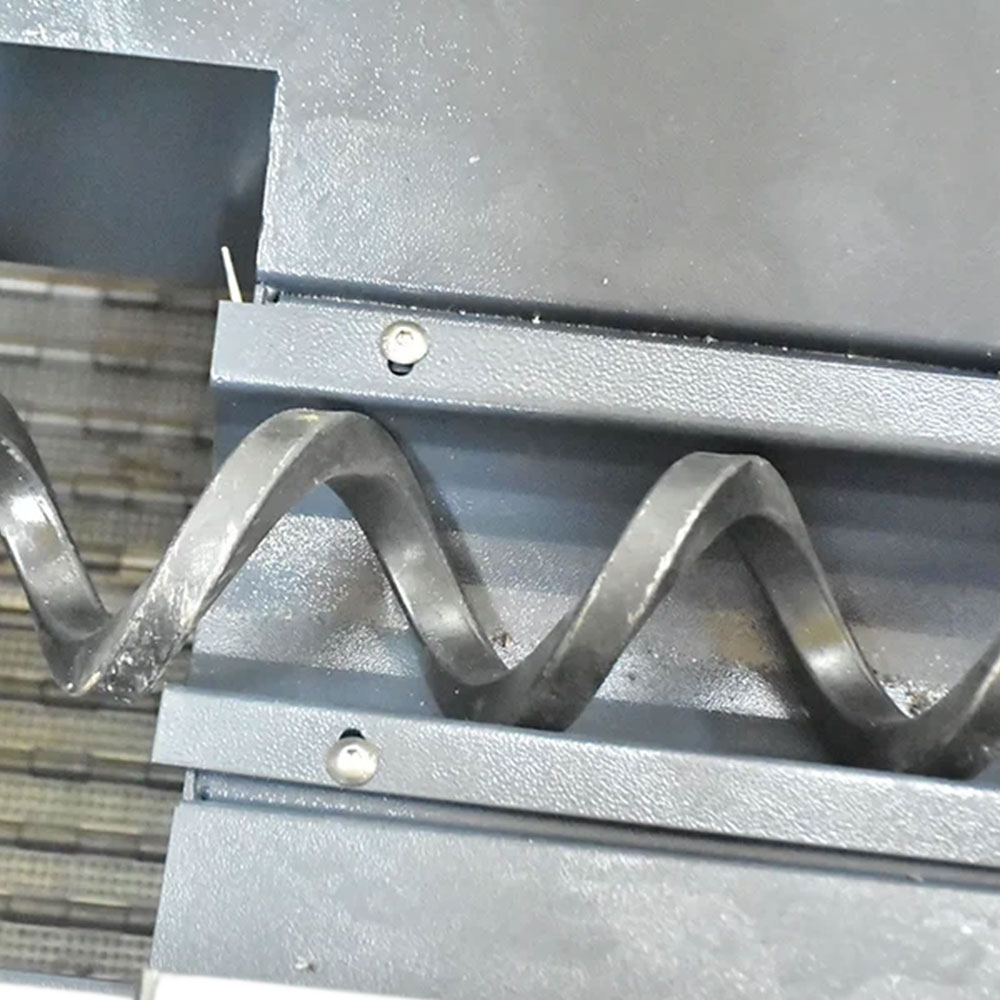

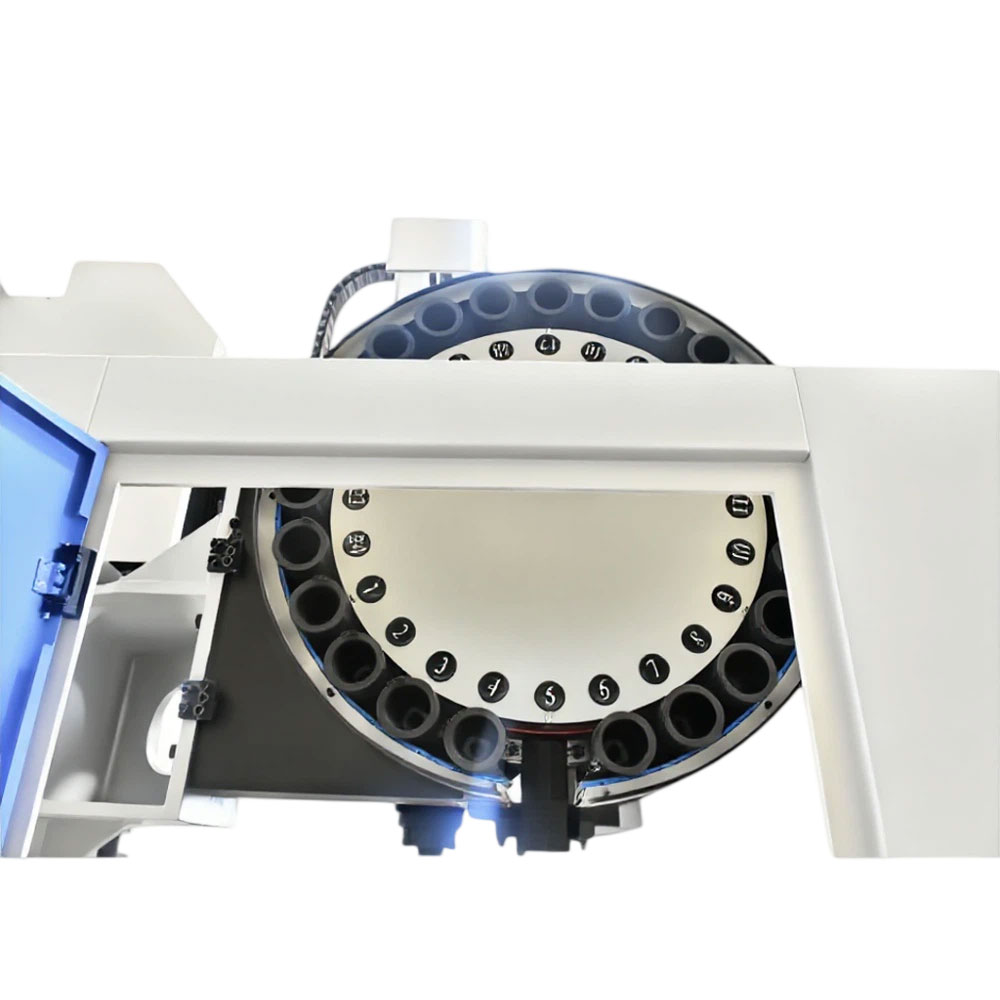

This gantry machining center is designed for large workpieces and heavy-duty cutting. With a double-column structure and wide machining range, it delivers high rigidity, stability, and precision for demanding industrial applications.
Specifications | BR2017 | BR2517 | BR3017 |
Worktable size (mm) | 1400×2200 | 1400×2700 | 1400×3200 |
X axis travel (mm) | 2200 | 2700 | 3200 |
Y axis travel (mm) | 2000 | 2000 | 2000 |
Z axis travel (mm) | 800 | 800 | 800 |
The width of the gantry (mm) | 1800 | 1800 | 1800 |
The height of the gantry (mm) | 1160 | 1160 | 1160 |
Distance from spindle end to table surface (mm) | 250 ~ 1050 | 250 ~ 1050 | 250~1050 |
Table T-slots (N-S×size×spacing) | 7-22×200 | 7-22×200 | 7-22×200 |
Spindle specifications (type/mounting diameter) | BT50/φ190 | BT50/φ190 | BT50/φ190 |
Belt spindle speed (rpm) | 6000r/min | 6000r/min | 6000r/min |
Belt pulley ratio | 1.5:1 (optional 1:1) | 1.5:1 (optional 1:1) | 1.5:1 (optional 1:1) |
ZF reduction + belt (optional) | Speed: 6000r/min, transmission ratio: 4:1 | Speed: 6000r/min, transmission ratio: 4:1 | Speed: 6000r/min, transmission ratio: 4:1 |
Gear heads | Speed: 6000r/min, transmission ratio: 4.4:1 | Speed: 6000r/min, transmission ratio: 4.4:1 | Speed: 6000r/min, transmission ratio: 4.4:1 |
Rapid traverse feed speed (m/min) | 16 | 16 | 16 |
Cutting feed rate (m/min) | 10 | 10 | 10 |
X, Y, Z Axis Ball Screw Specifications/Pitch | X:6310, Y:5010, Z:5010 | X:6310, Y:5010, Z:5010 | X:8020, Y:5010, Z:5010 |
X, Y, Z axis guide specifications/number of sliders | X-axis: linear way 55Y-axis: linear way 55Z-axis: Box way | X-axis: linear way 55Y-axis: linear way 55Z-axis: Box way | X-axis: linear way 55Y-axis: linear way 55Z-axis: Box way |
X, Y, Z axis servo motor drive type and ratio | X, Y, Z axis direct connection | X, Y, Z axis direct connection | X, Y, Z axis direct connection |
Main motor | 22kW | 22kW | 22kW |
X, Y, Z three-phase servo motor recommendation | X:38N·m; Y:30N·m; Z:30N·m(brake) | X:38N·m; Y:30N·m; Z:30N·m(brake) | X:38N·m; Y:30N·m; Z:30N·m(brake) |
Optical machine external dimensions (L×W×H) (Stroke maximum point) | 5500×3800×3700 | 6500×3800×3700 | 7960×3800×3700 |
Table load (t) | 4 | 5 | 6 |
Optical machine weight approx. (t) | 14 | 16 | 17 |
Balance system | Manual hydraulic balancing (optional automatic hydraulic balancing) | Manual hydraulic balancing (optional automatic hydraulic balancing) | Manual hydraulic balancing (optional automatic hydraulic balancing) |
Three models are available: GMC2017, GMC2517, and GMC3017.
Worktable sizes range from 1400 × 2200 mm to 1400 × 3200 mm.
Travel ranges:
X-axis up to 3200 mm
Y-axis 2000 mm
Z-axis 800 mm
This allows efficient machining of large and complex components.
The machine features a wide-span gantry structure with strong column support.
This design reduces vibration and deformation, ensuring stable performance and consistent accuracy during heavy cutting operations.

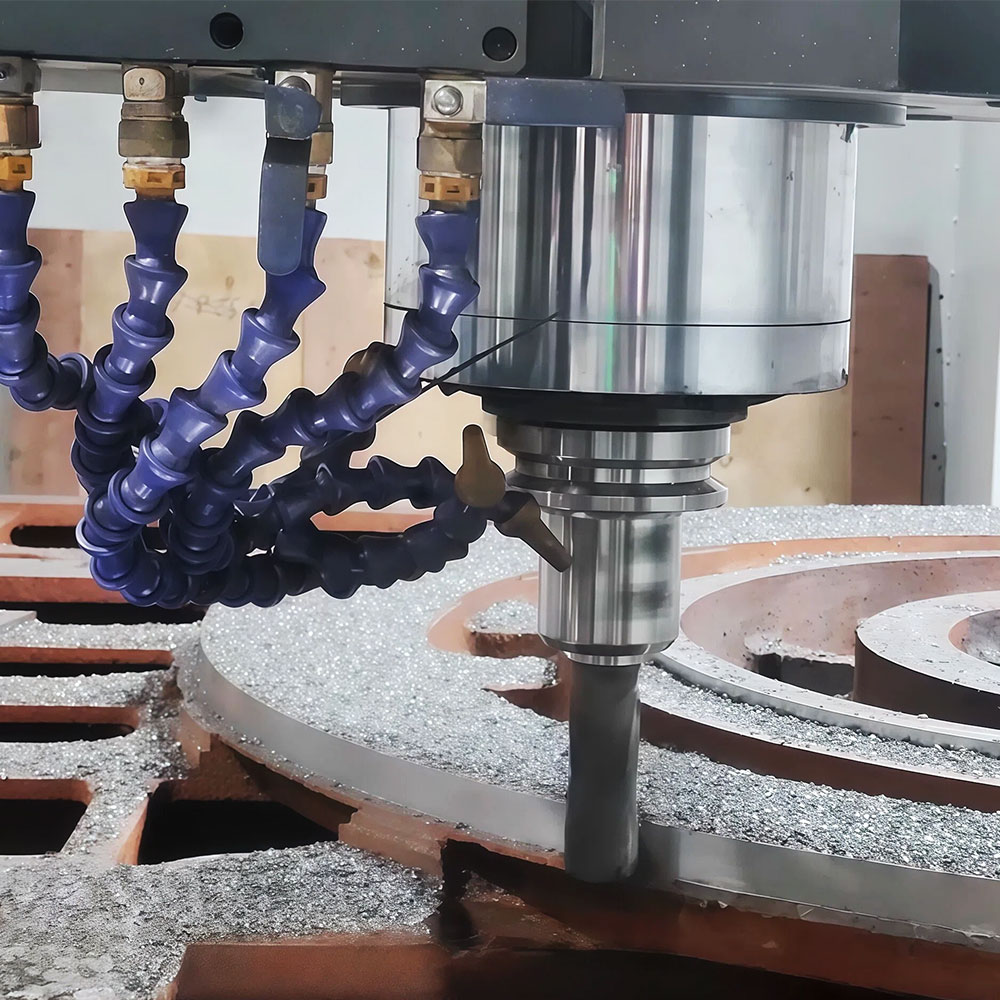

Equipped with a BT50 spindle, with speeds up to 6000 rpm.
Multiple drive options are available:
Belt drive
Gearbox drive
ZF gearbox with belt transmission
These options provide flexibility for different materials and machining requirements.
Rapid traverse: 16 m/min
Cutting feed: up to 10 m/min
High-precision ball screws and linear guides are used on X and Y axes, while the Z-axis uses a box guideway for higher rigidity.
Servo motors are directly connected to each axis, improving transmission efficiency and positioning accuracy.
Table load capacity: up to 6 tons
Machine weight: 14–17 tons
A hydraulic balancing system on the Z-axis improves stability and reduces mechanical wear during operation.
Widely used in:
 Mold manufacturing |  Aerospace components |  Heavy machinery |  Automotive tooling |  Energy equipment |
Ideal for large plates, frames, and complex structural parts.
Delivering Efficiency, Accuracy, and Scalable Production Value
This gantry machining center combines a large working range, strong structure, and flexible configuration.
It helps manufacturers improve machining efficiency, accuracy, and overall production capability.
