Vision-Guided Assembly Machine for Roofing Washer Nails Intelligent Assembly for Multi-Color Roofing Fasteners

Availability:

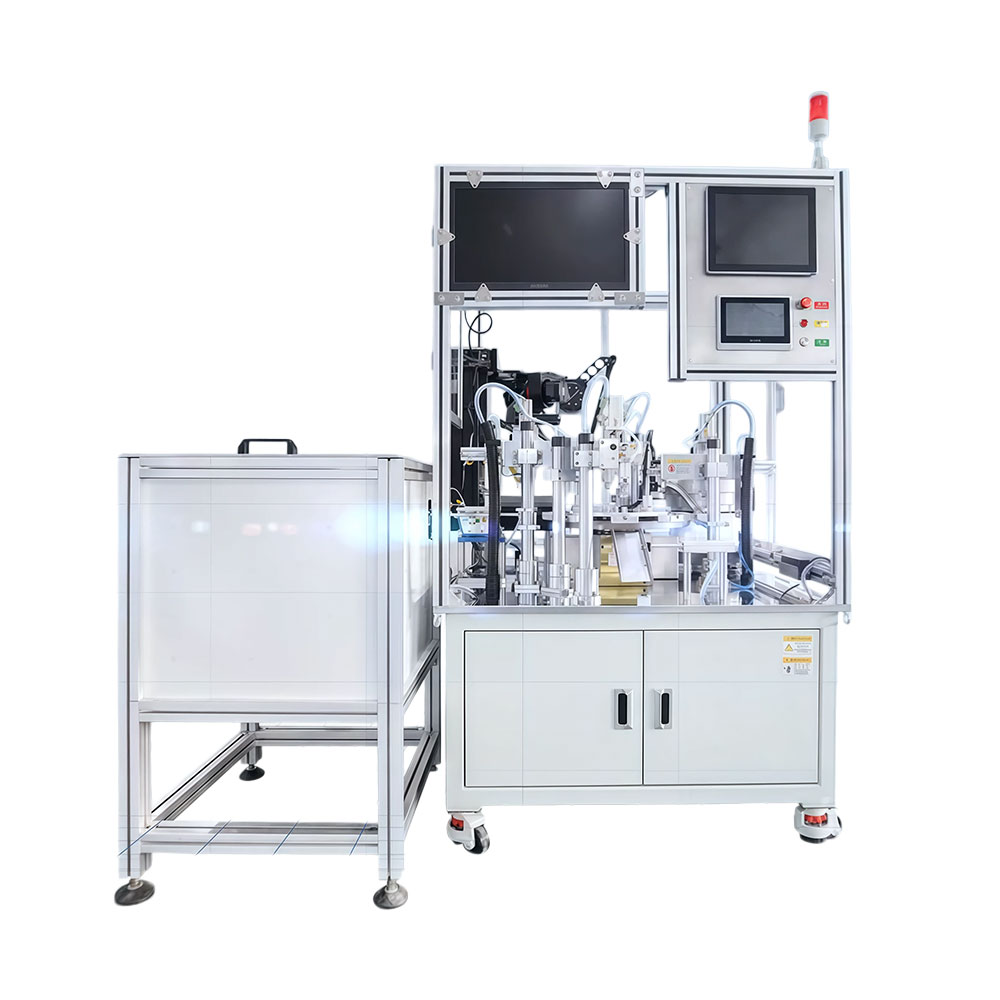

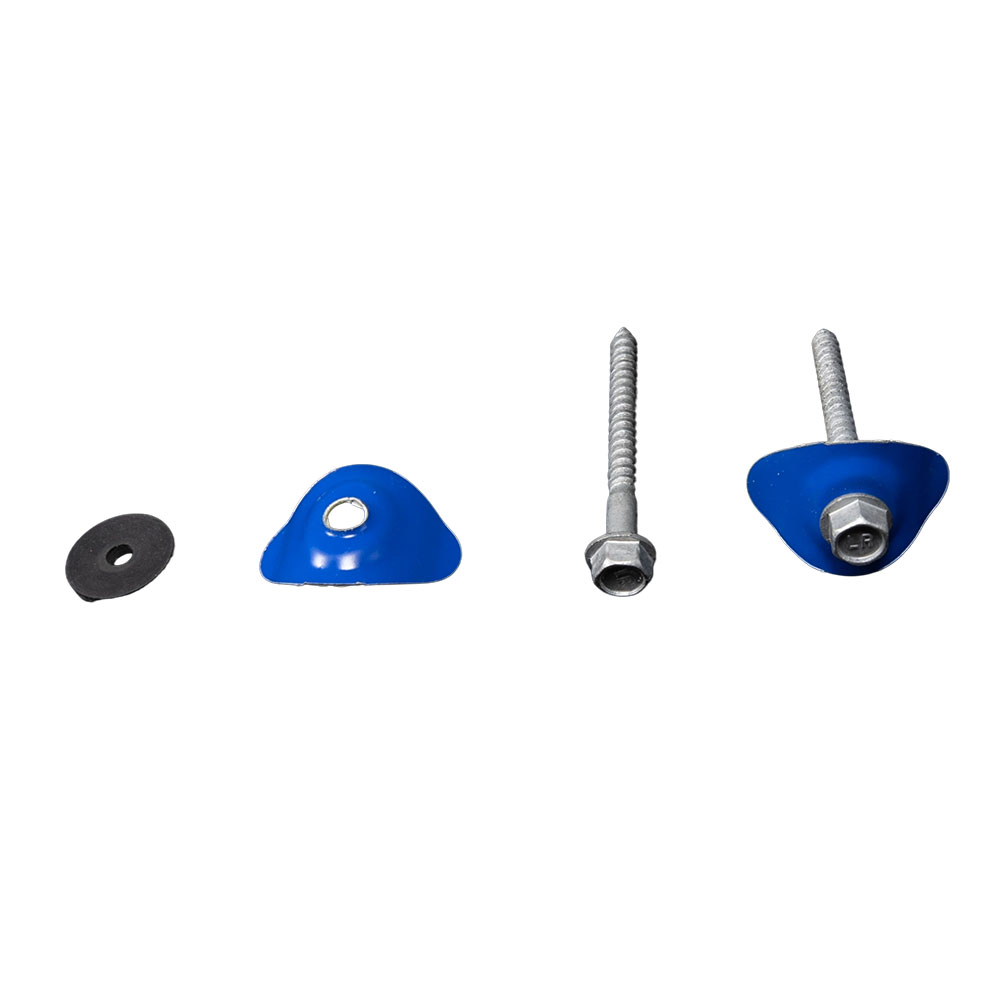

This specialized assembly machine is designed for the automatic assembly of roofing washer nails—a three-component fastener consisting of a nail, a colored metal washer, and a rubber sealing gasket. Widely used in roofing, siding, and weatherproofing applications, these assembled parts require precise orientation and consistent quality, which this machine delivers through advanced vision guidance and high-speed parallel robotics.
Inquire

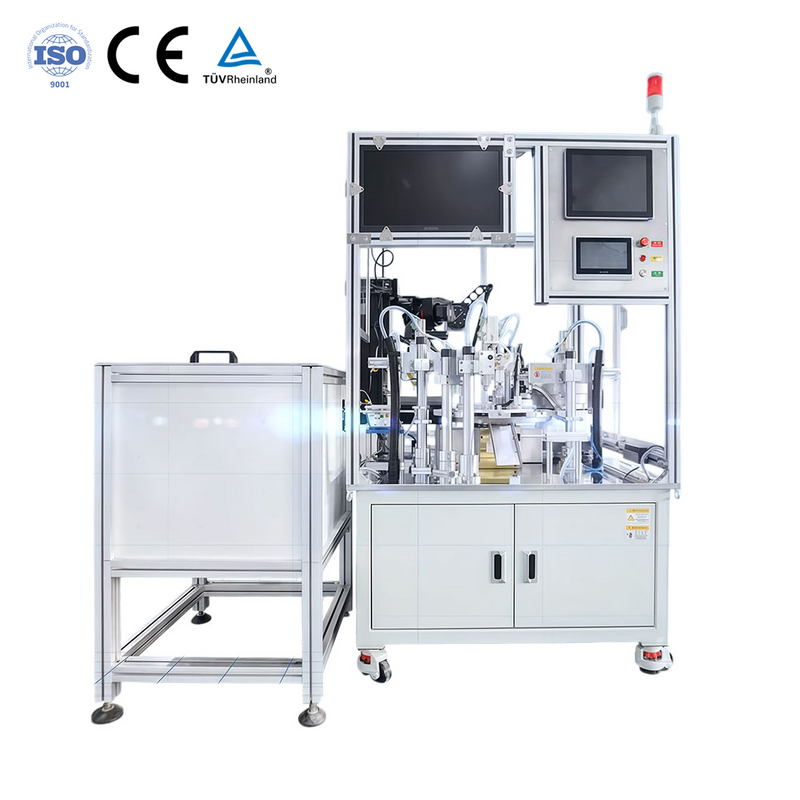

Product Description

The system integrates three core assembly steps into a fully automated cycle

• Nail feeding – Nails are sorted and oriented for assembly

• Metal washer placement – Colored washers are picked, oriented, and placed onto nails

• Rubber gasket assembly – Gaskets are applied to complete the weather seal

What sets this machine apart is its ability to handle thin, flexible metal washers of varying colors and types—a challenge that traditional mechanical feeding systems cannot reliably solve.

How It Works: The Assembly Sequence

Step 1: Nail Feeding and Positioning

Nails are loaded into a vibratory bowl feeder, oriented head-down, and delivered to the assembly station.

Step 2: Washer Vision Inspection and Pickup

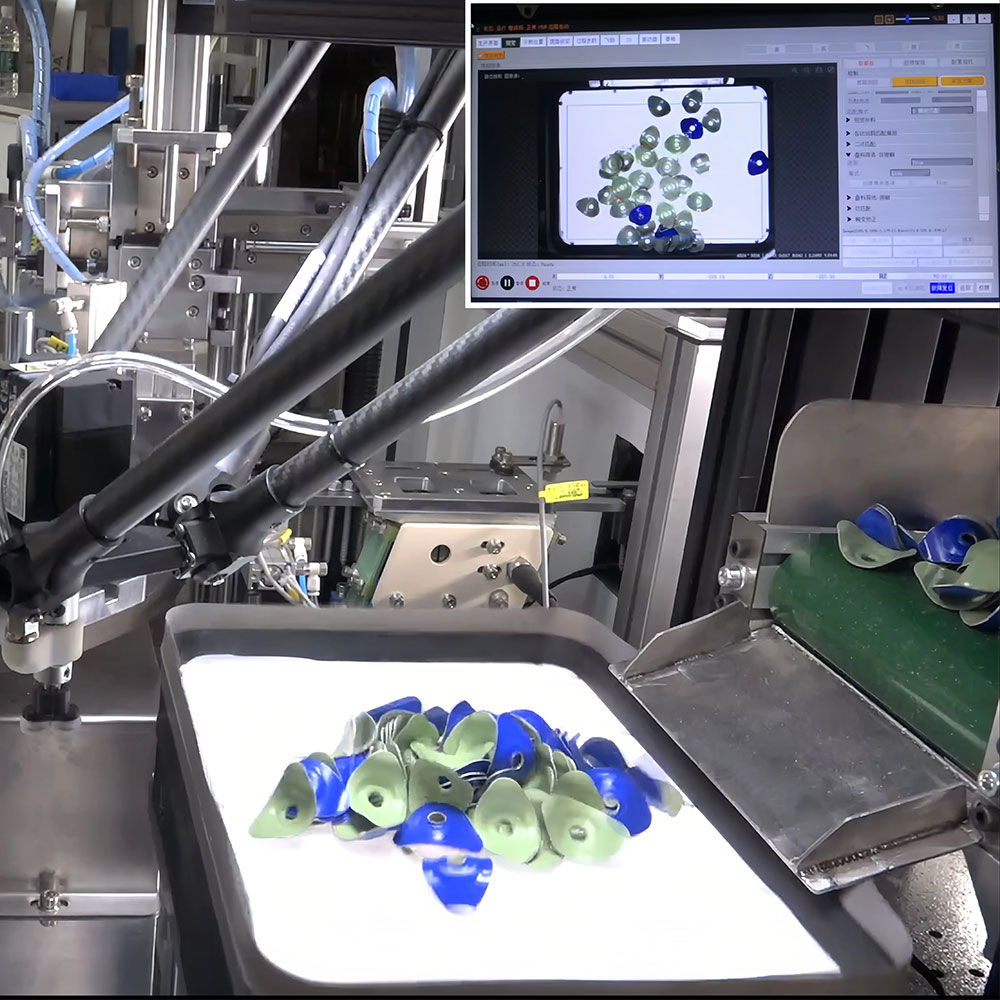

Metal washers are presented on a vibratory feeding track or tray

The vision system captures an image, determines orientation and color

Delta robot with vacuum gripper picks the correctly oriented washer

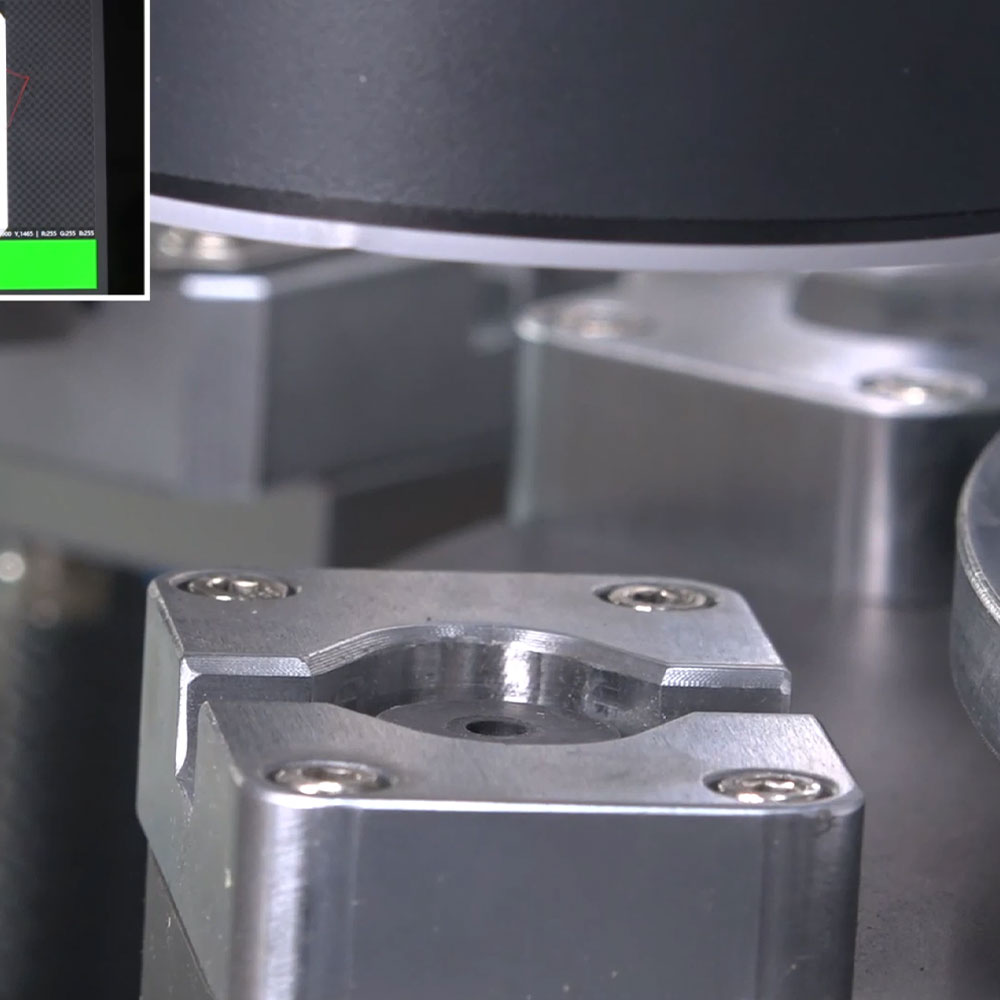

Step 3: Washer Placement

The delta robot places the washer onto the nail shank, ensuring the decorative side faces outward.

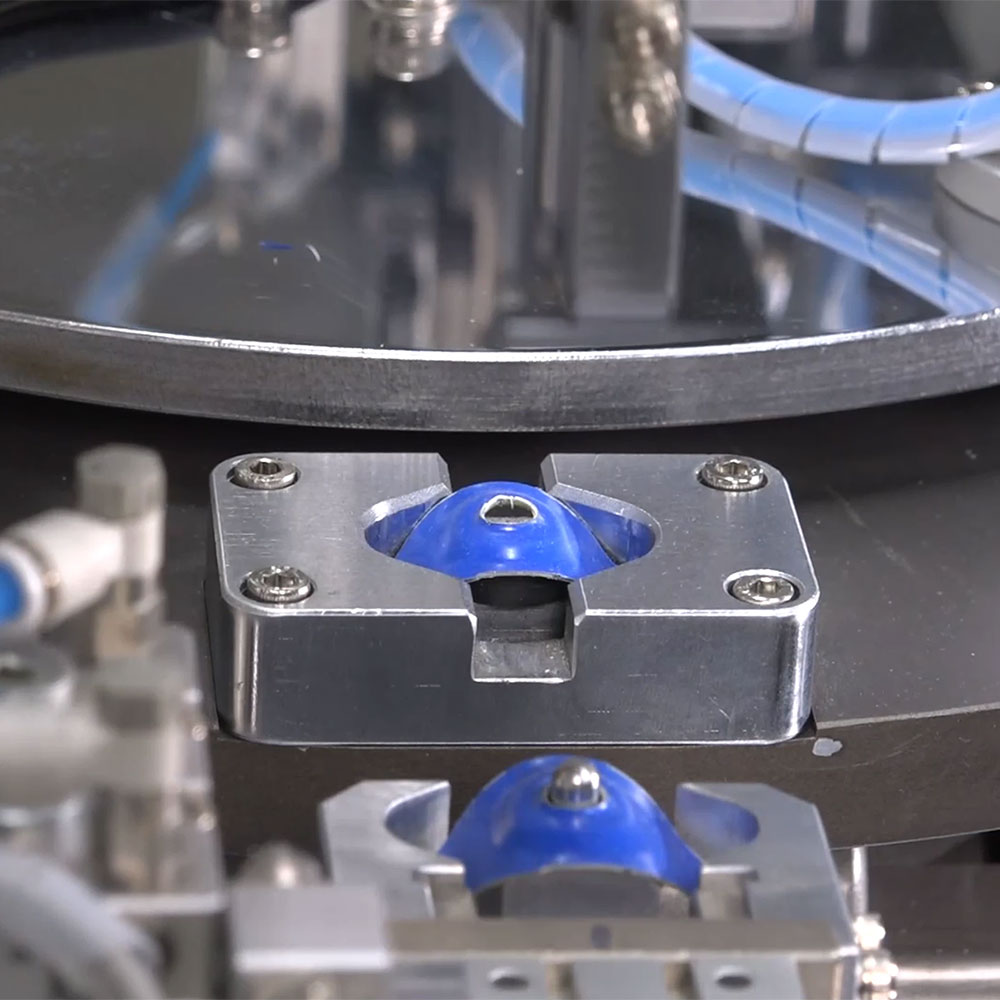

Step 4: Rubber Gasket Assembly

Rubber gaskets are fed, positioned, and pressed onto the nail to complete the weather seal.

Step 5: Finished Part Ejection

Completed roofing nails are ejected into collection bins or conveyed to packaging.

Key Advantages Summary

Feature	Benefit
Vision-guided delta robot	Handles thin, flexible washers that mechanical grippers cannot
Real-time color recognition	Ensures correct washer color for each production batch
Orientation detection	Guarantees decorative side faces outward every time
Vacuum gripper system	Gentle handling prevents damage to thin metal parts
Quick changeover	Run multiple washer types and colors on one machine
High-speed operation	Up to 80 assemblies per minute for maximum productivity

This vision-guided assembly machine represents a significant advancement in automated fastener assembly.

By combining high-speed delta robotics, precision vacuum handling, and intelligent vision inspection, it solves the long-standing challenge of reliably assembling thin, multi-color washers onto nails—all while maintaining the flexibility to handle multiple product variations.
