Sourcing reliable tool maintenance equipment directly from a trusted factory ensures consistent manufacturing quality. Our compound drill bit grinder delivers precise dual-station sharpening for a wide variety of tools. Processable Material Types Diameter 3–32mmProcessable materials: high speed steel, stainless steel and tungsten carbide. Drill bit types: powder metallurgy drill bit, hole saw drill bit, step drill bit, thin sheet drill bit, twist drill bit, flat bottom drill bit, center spotting drill bit, four-flute drill bit, carbide drill bit, wood drill bit (Diameter 3–80mm). | |||||||||
|
| |||||||||
This machine is portable and equipped with a diamond grinding wheel manufactured in Taiwan (optional CBN for HSS or SDC for tungsten carbide), offering precision and durability. Our dual-station drill sharpener integrates seamlessly into busy factory environments. We focus on delivering robust tool maintenance solutions that help manufacturers maintain continuous production flow without constant tool replacement costs.

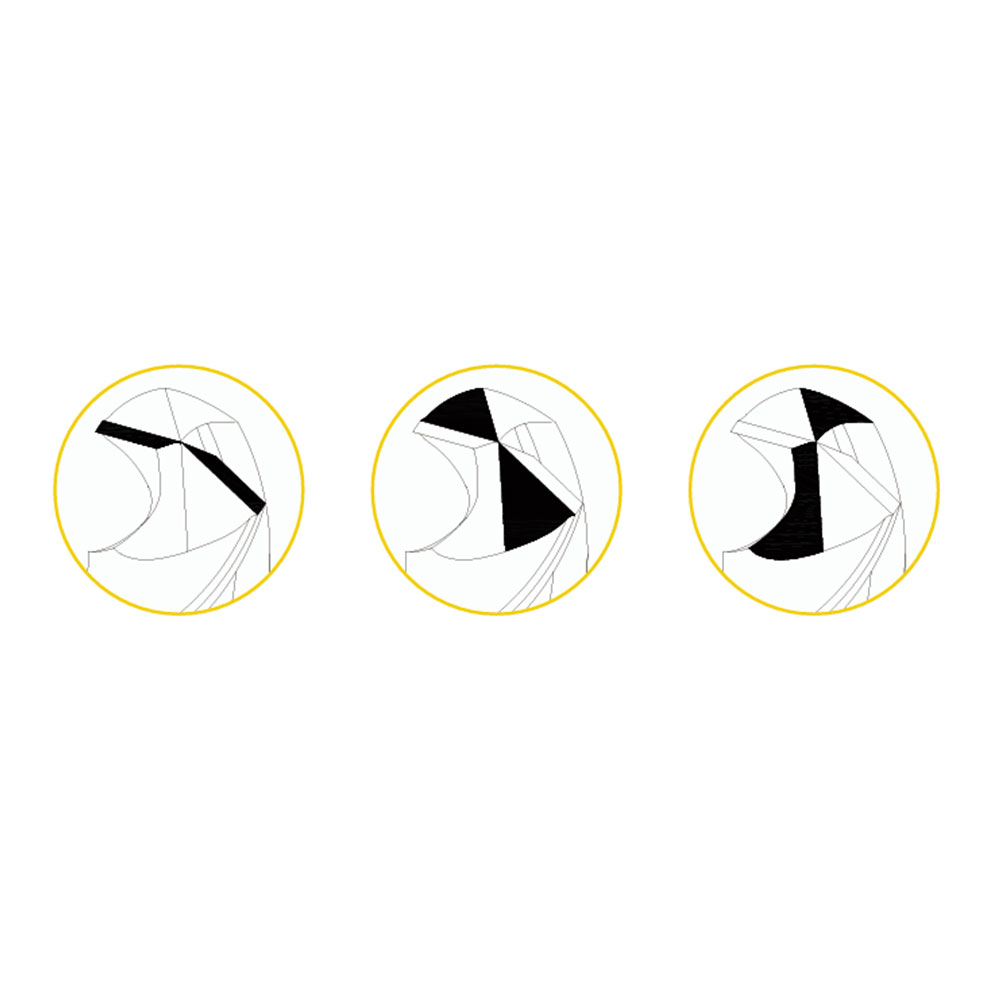

It can sharpen the drill point angle (included angle), the primary cutting edge (positive rake angle), and the chip flute (relief angle). The chisel edge size can be adjusted as needed, allowing it to replace a center drill for more precise positioning, easier chip evacuation, and smoother drilling. This reliable capability ensures that your operations remain highly efficient when utilizing our compound drill bit grinder.
Model | Z13/Z13D | Z20 | Z26 | Z32 |
Grinding range | φ3–φ13 (φ14) | φ3–φ20 | (φ8) φ13–φ26 (φ32) | φ3–φ32 |
Point angle | 90°–140° | 95°–140° | 95°–140° | 90°–140°/95°–140° |
Power | AC,220V±10% | AC,220V±10% | AC,220V±10% | AC,220V±10% |
Motor | 120W/4400RPM | 160W/4400RPM | 250W/4400RPM | 250W/4400RPM |
Dimension | 36×21×19cm | 43×22×21cm | 43×23×21cm | 42×27×34cm |
Weight | 9KG | 12KG | 22KG | 29KG |

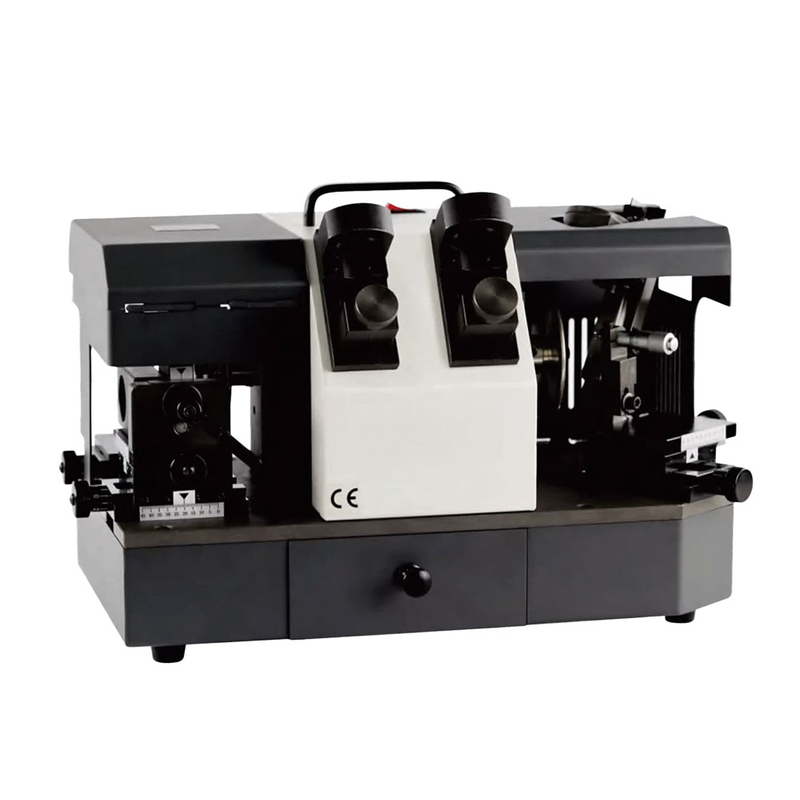

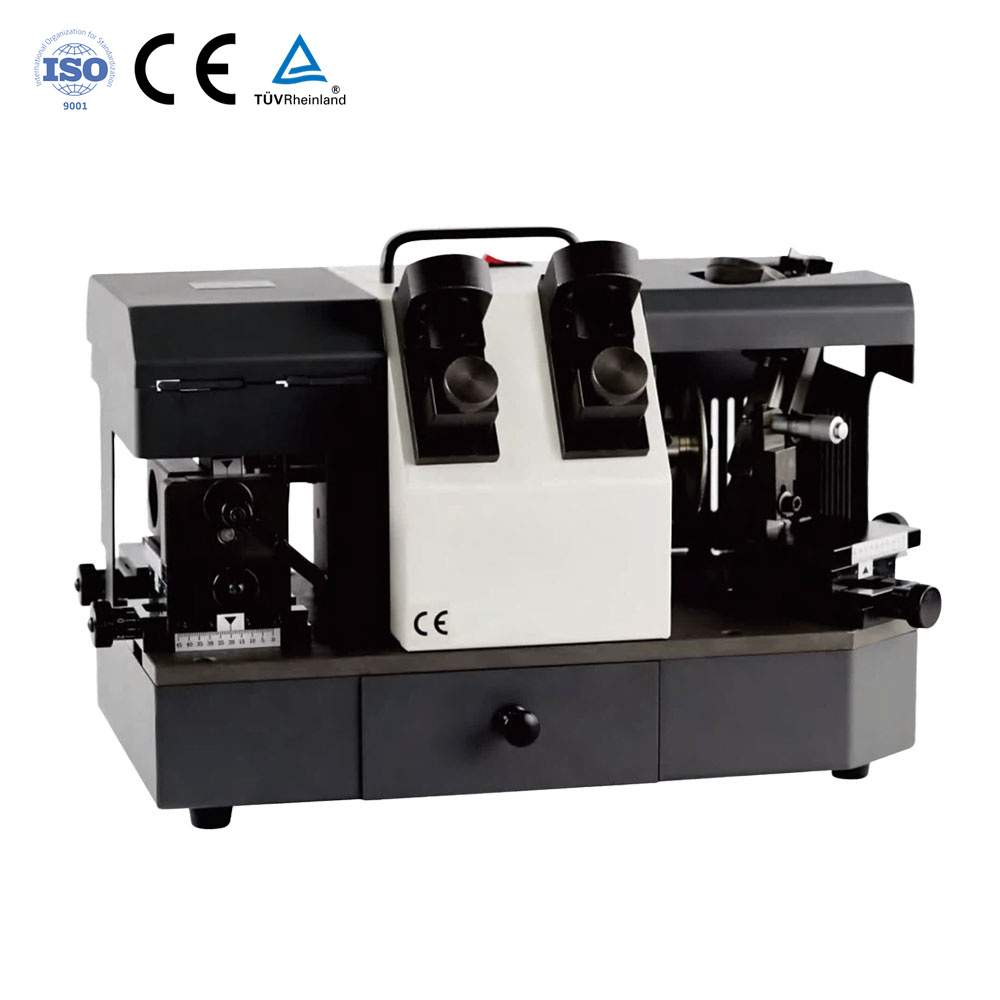

The innovative dual-head design of our industrial drill grinding machine allows operators to process different tool geometries simultaneously. This setup significantly reduces waiting times during complex machining operations. Industrial users benefit from a streamlined workflow that maximizes overall factory throughput. The independent stations ensure consistent angles and superior edge finishes for various drill bits, directly improving your daily operational efficiency.
Capably handling a wide array of tough materials, the equipment effortlessly processes high-speed steel, stainless steel, and solid tungsten carbide components. By supporting multiple alloy types, our HSS drill bit grinder meets the diverse demands of modern metalworking facilities. This inherent flexibility eliminates the need for multiple single-purpose machines, effectively saving valuable floor space and substantially reducing capital expenditures for your growing facility.

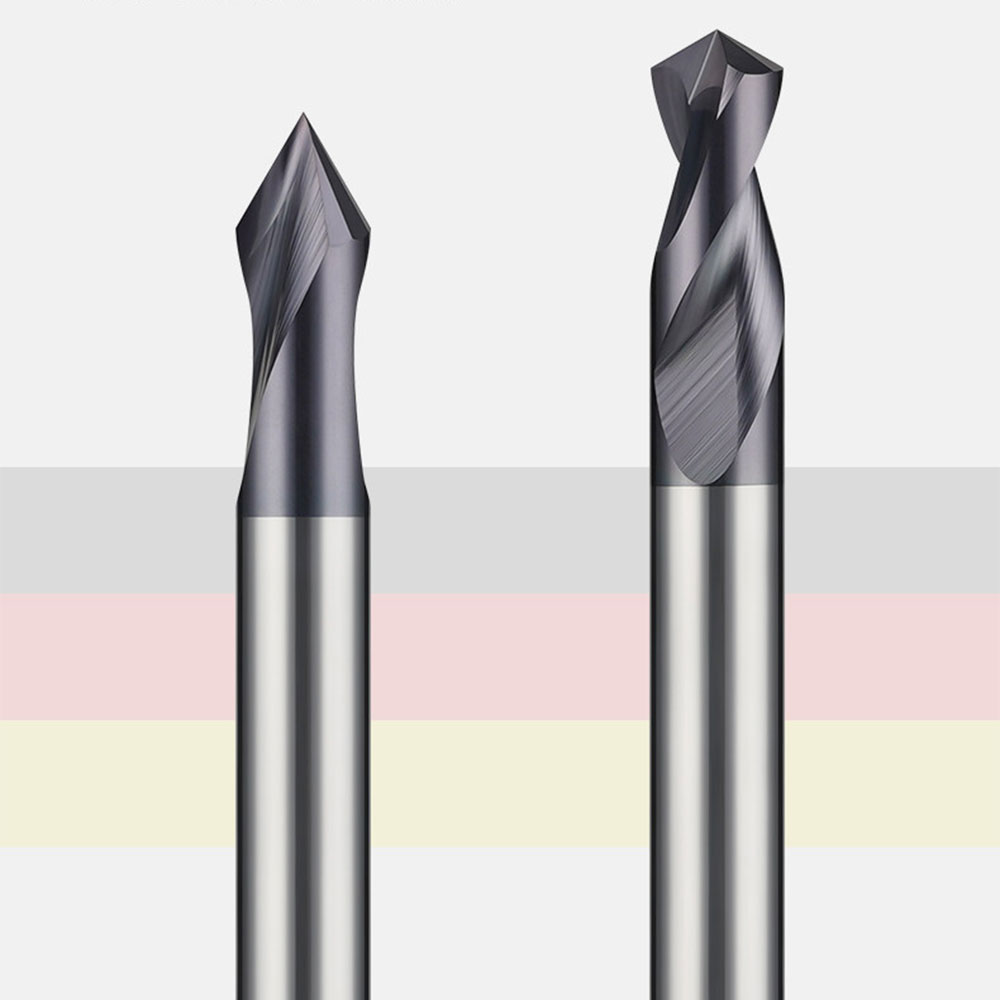

From standard twist drills to specialized powder metallurgy and hole saw varieties, the system accommodates diameters ranging from 3mm up to 80mm. You can easily process step drills, thin sheet drills, and center spotting tools on the identical platform. This broad compatibility ensures that virtually every cutting tool in your inventory remains sharply calibrated, fully optimized, and constantly ready for immediate production deployment.
Equipped with a high-grade grinding wheel, the unit delivers exceptional abrasion resistance and extended operational life. You can select optional CBN wheels tailored for high-speed steel or SDC variants optimized for hard tungsten carbide. This tailored approach guarantees optimal surface finish and dimensional accuracy on every sharpened edge. Our robust design prioritizes long-term reliability for continuous, heavy-duty industrial factory applications.
Operators can precisely modify the chisel edge size to match specific drilling requirements and unique material characteristics. This critical adjustment facilitates highly accurate initial positioning and significantly improves chip evacuation dynamics during deep hole drilling. By actively enhancing the drill's self-centering capability, the resulting machined holes exhibit superior roundness and strict tolerance adherence across all your demanding metalworking production runs.
Constructing robust industrial equipment requires continuous drilling through thick, hardened steel plates and dense structural components. Our tungsten carbide drill sharpener ensures that all boring tools maintain their optimal cutting geometry during these intense fabrication processes. Manufacturers can confidently sustain high feed rates and prolong tool life when assembling construction vehicles, mining equipment, and large-scale agricultural machinery without interruption.
The aerospace sector demands absolute precision when creating fastening holes in advanced alloys and specialized composite materials. Utilizing our advanced grinding equipment guarantees that every drill bit achieves the exact point angle required for defect-free hole creation. This strict tool maintenance protocol successfully prevents material delamination and ensures essential structural integrity for critical aircraft fuselage and complex engine assembly procedures.
Versatile job shops frequently switch between different materials and hole specifications based on constantly varying client orders. Incorporating this flexible sharpening solution allows technicians to quickly recondition their cutting tools without relying on costly external sharpening services. This independent capability drastically reduces lead times and helps workshops maintain strict quality control over their custom metal components and intricate architectural fixtures.
Securing dependable industrial equipment is vital for maintaining a competitive edge in modern manufacturing. As an experienced industry supplier, we understand the rigorous demands placed on cutting tools during continuous production shifts. We engineer our machinery to withstand heavy daily use while delivering precise, repeatable results that operators can trust. Integrating our advanced sharpening solutions into your facility helps optimize tool budgets and minimizes unexpected downtime. We are committed to supporting global manufacturers with reliable technology, extensive technical expertise, and responsive service that keeps your production lines running smoothly.
It effectively sharpens high-speed steel, stainless steel, and tungsten carbide tools using specialized diamond, CBN, or SDC grinding wheels.
The equipment handles various drill bit types with diameters ranging from 3mm up to 80mm depending on the specific tool profile and requirement.
Yes, operators can easily adjust the chisel edge size to improve precise positioning and facilitate smoother chip evacuation during demanding drilling operations.
