| This premium equipment delivers exceptional measurement accuracy for sharpening critical superhard materials. As an experienced manufacturer, we engineer each advanced system to provide high structural rigidity and uncompromised continuous grinding stability. Our factory supplies highly customizable machine solutions to effectively meet your specific insert and spherical tool preparation demands. | |||||||||
|
| |||||||||

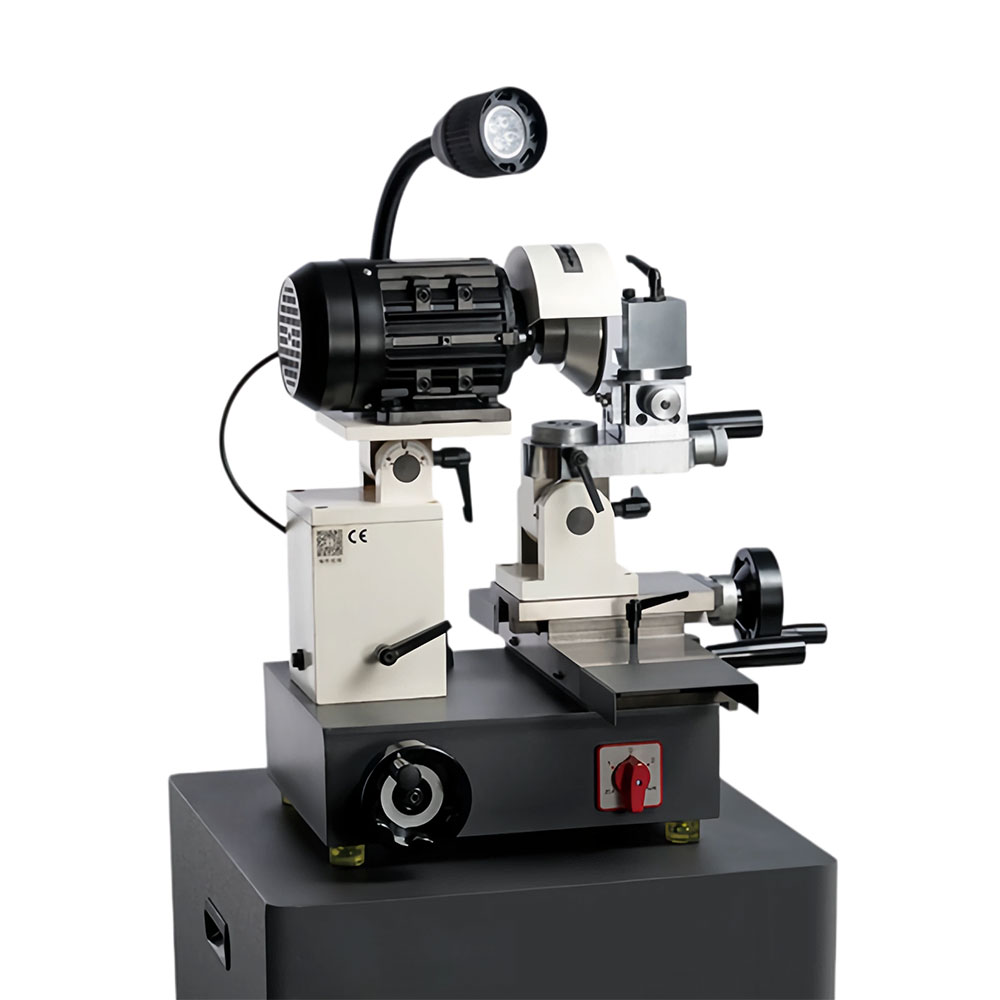

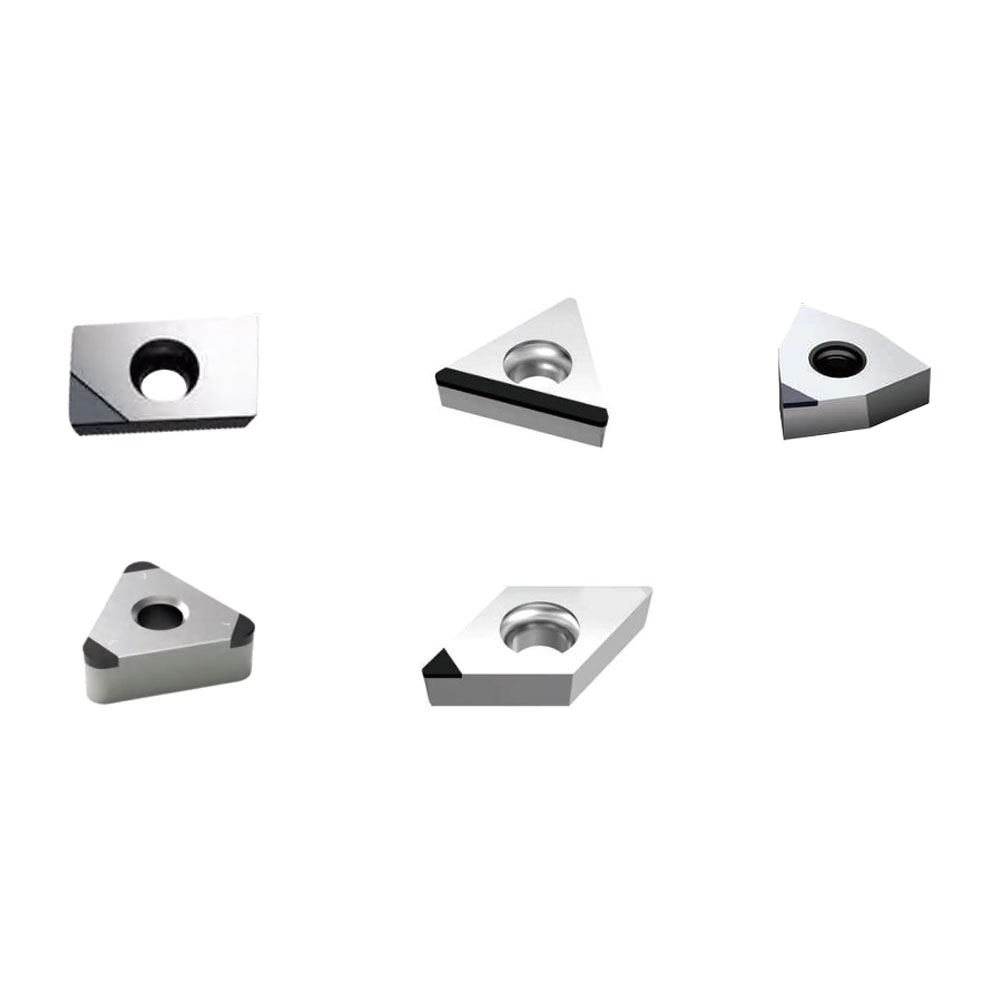

It can sharpen superhard tool materials such as PCD and PCBN inserts, and non-standard R-angle scales can be customized. With the addition of a special attachment, it can also sharpen spherical tools (SR). The machine utilizes a high-magnification camera to thoroughly inspect the sharpened tool, enabling precise online measurement of the tool's length, angles, and any arc radius within the range of R0.05 to R2.5.
Model | M4 |
Knife height range | 5–30mm |
Arc angle | R0.05–R2.4 |
Tool front and rear angle | 0–25° |
Tip angle | (35≤a≤180)° |
Voltage | 380V 50/60HZ |
Speed | 4200rpm |
Grinding wheel | 75x63x86cm |
Weight | 184kg |
The structural design of our High Precision Tool Grinder prioritizes extreme rigidity to significantly minimize vibration during complex daily operations. This heavy-duty construction guarantees consistent grinding stability even during prolonged use under demanding factory conditions. Operators can confidently process challenging materials knowing the machine continuously maintains its structural integrity. We supply these robust systems to enhance your overall machining consistency.
The integrated camera inspection system transforms how tools are measured and verified during continuous production. Delivering an impressive 0.005 mm precision, this advanced setup allows for precise real-time adjustments without removing the workpiece from the fixture. The clear, distortion-free optical magnification ensures every critical dimension meets your exacting standard. Our factory integrates this technology to improve your measurement accuracy.
We understand that standard factory specifications do not always fulfill specialized manufacturing requirements. Our experienced team allows for non-standard R-angle scales to be fully customized according to your precise workshop needs. This level of tailored functionality makes our Custom Tool Sharpening Machine highly adaptable for unique production runs. You receive equipment specifically optimized for your individual grinding parameters.
Despite its highly sophisticated measurement capabilities, the machine maintains an incredibly accessible workflow for all operators. The integrated projector-style display drastically simplifies the careful inspection of complex geometries like front and rear angles. This streamlined visual interface significantly reduces daily setup time and enhances overall workshop productivity. Your team can quickly master the equipment without requiring extensive external training.
The continuous manufacturing of intricate transportation components demands cutting tools with absolutely flawless edge geometries to maintain strict tolerances. Our Custom Tool Sharpening Machine delivers the reliable extreme precision required to accurately prepare superhard inserts for high-volume automotive machining lines. Achieving consistent tool sharpening quality directly translates to superior surface finishes on critical engine parts. By integrating this advanced measurement equipment, facilities can effectively prevent unexpected downtime in demanding production environments.
Modern valve production heavily relies on specialized cutting tools to consistently achieve strict tolerances and leak-proof seals. Facilities utilizing our Spherical Tool Grinder can quickly restore worn tools to their original precise specifications. This valuable capability minimizes overall tool replacement costs and keeps rotary transfer machines running smoothly. Your custom plumbing fixtures benefit from uninterrupted and highly precise machining.

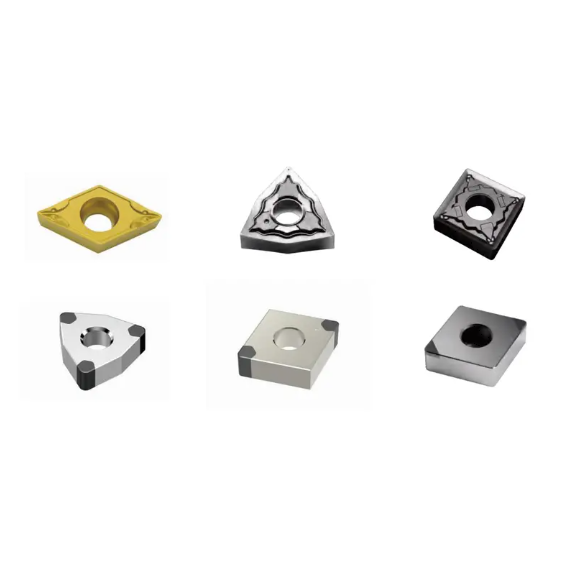

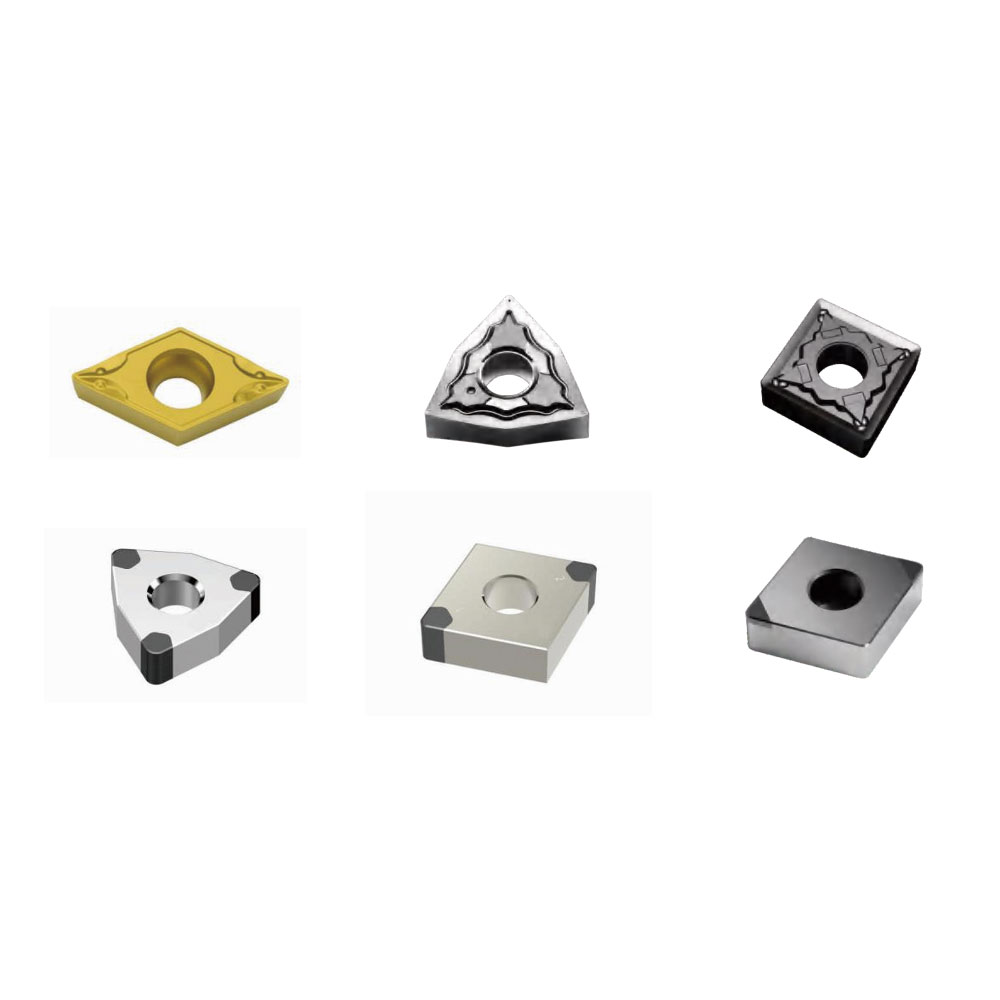

Precision engineering workshops frequently encounter diverse materials requiring highly specific and unique tool profiles. The ability to effectively sharpen a wide range of custom PCBN inserts ensures workshop readiness for any unexpected custom project. Reliable onsite tool preparation ultimately shortens customer lead times and significantly improves output quality. We supply versatile equipment to support your expanding engineering capabilities.
At QINGDAO C AND C, we expertly combine deep technical expertise with extensive industry resources to deliver superior smart manufacturing solutions. Our strong technical background enables us to successfully turn your specific custom requirements into reliable operational realities. We consistently supply flexibly configured equipment fully tailored to your specific parts, production volumes, and budget constraints for maximum efficiency.
Every machine undergoes extremely rigorous control and comprehensive testing across our facilities to guarantee long-term operational reliability. From assembly machines to machining centers, every single batch meets the highest international performance standards. We maintain a strict customer-first service approach, offering rapid on-site technical support to keep your production running smoothly without experiencing any unnecessary or costly daily interruption.
Our machine specifically sharpens superhard tool materials, including standard and custom PCD and PCBN inserts.
Yes, while the standard inspection range covers R0.05 to R2.5, non-standard R-angle scales can be fully customized.
The high-magnification camera serves as an online inspection device, functioning like a projector to accurately measure tool length and angles.
Yes, with the addition of a special attachment, the equipment can accurately sharpen complex spherical tool profiles.
The machine operates smoothly at a standard speed of 4200 rpm to ensure consistent grinding performance.
